ELD001
ELD001 is part of the dome fosc range built by Ever Expresslink Limited in Ningbo, China.
Vertical dome closures for pole, wall and hand-hole splice points
Interested in ELD001
Email the model and quantity with your destination country. We reply with pricing, lead time and a datasheet.
Product Overview
ELD001 is part of the dome fosc range built by Ever Expresslink Limited in Ningbo, China.
It is one of 9 items in this range. A typical application is pole-mounted distribution splice points on an FTTH route. What the range is built to give you there: trays that hinge clear so existing splices are not disturbed.
The problem it addresses is water pooling on horizontal closures mounted vertically. A practical note that applies across this range: hinge trays rather than lifting them, so lower splices stay undisturbed. Specifications for a particular configuration are confirmed on the quotation rather than assumed from the designation.
Key Benefits
- Supplied as ELD001, so the part you receive matches the designation you ordered against
- Single base plate with multiple entry ports for feeder and drops
- Trays that hinge clear so existing splices are not disturbed
- Mechanical seal that a crew can open and close without a torch
- Pole, wall and hand-hole mounting from the same closure body
Problems It Solves
- Splice trays that cannot be reached without disturbing existing fibres
- Sealing methods that need a torch and a trained hand
- Water pooling on horizontal closures mounted vertically
- Base plates without enough entry ports for a growing drop count
Application Scenarios
- Wall-mounted joints at a building entry
- Hand-hole splice points in a buried network
- Progressive subscriber connection as a street is sold
- Branch splicing from a feeder into multiple drop cables
Who It Is For
- Access network operators running pole-mounted plant
- CATV and broadband network builders
- Utility networks with wall and cabinet splice points
- Maintenance crews adding subscribers to an existing closure
Technical Features
- Pole and wall mounting bracket options
- Dome body with single-base cable entry
- Multiple sealed entry ports sized for feeder and drop cable
- Hinged, stackable splice trays
Materials
- High-impact engineering plastic dome and base
- Rubber sealing gaskets and grommets
- Stainless steel clamp band and fasteners
- Thermoplastic splice trays
Specifications
| Product Designation | ELD001 |
|---|---|
| Product Family | Dome FOSC |
| Manufactured In | Ningbo, China |
| Warranty | One year against defects in materials and workmanship |
Values shown are those carried by the product designation. Dimensional and optical values for a specific order are confirmed on the quotation.
Manufacturing Process
- Dome and base molding with dimensional inspection
- Gasket seating and clamp band fitting
- Tray stack and hinge assembly
- Seal and pressure verification
- Kit packing with brackets and consumables
Quality Control
- Seal and pressure integrity tested on sample closures
- Clamp band retention force verified
- UV and impact resistance testing per lot
- Tray hinge cycling on samples
- Packing list verification before dispatch
Customization Options
- Fiber capacity and tray count
- Entry port count and sizing for your drop cable
- Pole, wall or hand-hole mounting kit
- Tray type for single-fiber or ribbon work
- Private-label molding and packaging on volume orders
Handling ELD001
Before You Order
- Size the closure for the final drop count on that pole, not the first ones
- Anchor every cable's strength member to the base before splicing
- Keep drop entries sealed even when the port is not yet used
In Service
- Hinge trays rather than lifting them, so lower splices stay undisturbed
- Seat the gasket evenly and tighten the clamp band in stages
- Label trays and ports so the next crew can add a subscriber blind
Questions About ELD001
What do you need from us to quote ELD001?
The quantity, the destination and anything that has to match on your side: connector and polish at each end, fiber mode and core size, and length where the item is an assembly. If you are matching a part you already buy, send the sample and we will quote against it.
What cable sizes do the entry ports accept?
Ports are supplied with grommets sized for common feeder and drop cables. Send us the cable diameters you use and the correct grommet set will be specified on the order.
Is it suitable for hand-hole installation?
Yes, the sealed body is intended for outside-plant use including hand holes. Confirm whether the installation may be submerged so the right sealing configuration is supplied.
Why choose a dome closure over a horizontal one?
Because of how the cables arrive. If everything enters from below, on a pole or in a hand hole, a dome sheds water and gives the crew one working face. Straight-through joints along a duct or an aerial span suit a horizontal closure better.
Can drops be added later without disturbing existing splices?
Yes, that is the normal FTTH working pattern. Trays hinge clear so a crew can splice a new drop into a free tray position while the rest of the closure stays intact.
More Dome FOSC
ELDY005
Used for progressive subscriber connection as a street is sold.
View Details
ELDY006
Used for progressive subscriber connection as a street is sold.
View Details
ELDY007
Used for hand-hole splice points in a buried network.
View Details

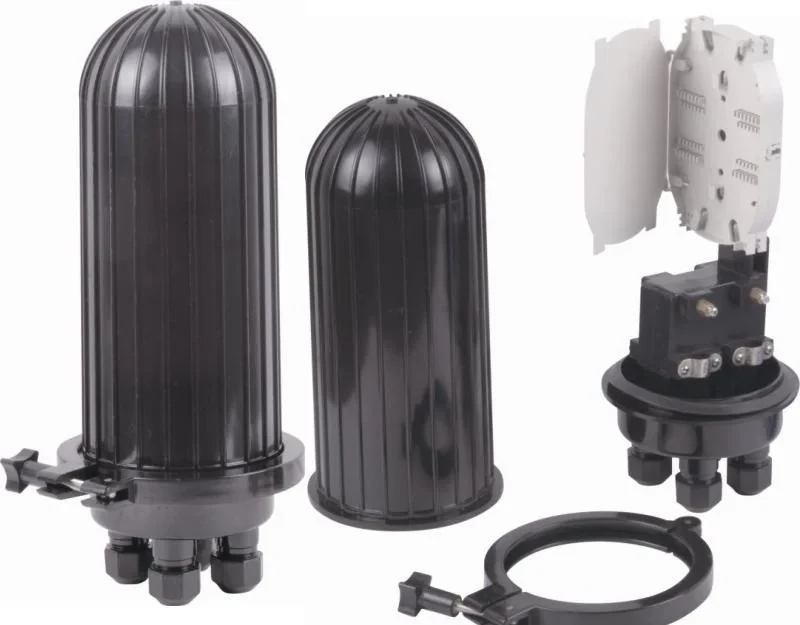

ELD002
