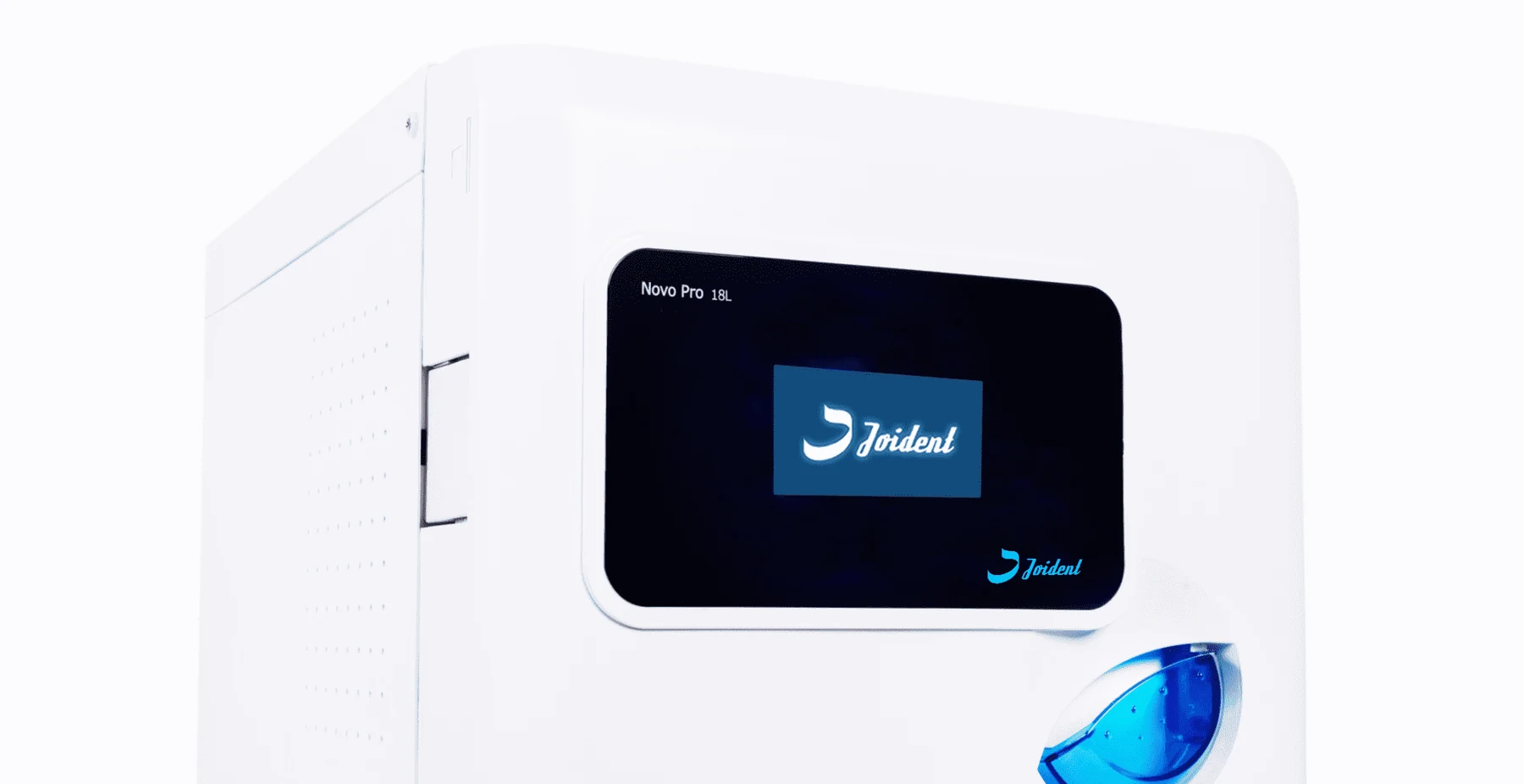

Novo Pro 18L Steam Sterilizer
The Novo Pro 18L is a Class B steam sterilizer for clinics that need to reprocess instruments quickly between patients.
Overview
What The Novo Pro 18L Is For
The Novo Pro 18L is a Class B steam sterilizer for clinics that need to reprocess instruments quickly between patients. An 18 L chamber takes up to five trays, fractionated vacuum removes air from hollow and wrapped loads, and every cycle is logged to SD card or USB for compliance. It runs on single-phase 230 V and occupies 585 x 438 mm of bench space.
100+Countries with users
8Patented technologies
1800Days of aging test
Key Benefits
Why Clinics Choose The Novo Pro 18L
Class B fractionated vacuum sterilizes wrapped instruments and hollow handpieces
Five trays per load reduces the number of cycles needed
Cycle data is stored on SD card or USB for compliance records
Preheating with standby maintains chamber temperature between cycles
4.3 inch touchscreen groups functions by frequency of use
Double door locking prevents operation with an unlocked door
Application Scenarios
- Turning around handpieces and hand instruments in a one to three chair dental practice
- Sterilizing wrapped surgical kits for use at the chairside
- Reprocessing hollow instruments where air would block steam
- Running an end of day load of pouched instruments with extra drying
- Providing a stored cycle record for practice inspection
Who It Is For
- Dental clinics and stomatology departments reprocessing instruments on site
- Small hospitals and outpatient practices without a central sterile services department
- Veterinary practices sterilizing surgical packs in house
- Dental equipment distributors who need a Class B model with documented conformity
Problems It Solves
What Goes Wrong Without It
- Unwrapped only sterilizers cannot process pouched or hollow loads
- Handwritten cycle logs are easily lost or questioned during inspection
- Instruments coming out damp require reprocessing, wasting time and cycles
- Cold starts slow down the first cycles of the day
- Tap water scales the chamber and shortens the machine’s life
Technical
Technical Features And Specifications
- Class B fractionated vacuum cycles conforming to EN 13060
- 4.3 inch colour touchscreen with a multi language operating system and 8 programs and tests
- Preheating system with standby to maintain chamber temperature
- Wind cooling window with 260 x 142 mm cooling area and 73 aluminium radiating layers
- Quick coupling connections on the front for filling and draining
- Intelligent monitoring and diagnosis system identifies fault sections
- Traceability to SD card or USB, with optional built in printer
- Bacteriological filter retaining not less than 99.5 percent of particles above 0.3 micrometres
- Double safety door locking with mechanical, sensor and electromagnetic locks
- Optional built in water quality detection
| Cycle Type | Class B, fractionated vacuum |
|---|---|
| Chamber Volume | 18 L |
| Chamber Dimensions | diameter 245 mm x 355 mm |
| Overall Size (L x W x H) | 585 x 438 x 405 mm |
| Weight | approx. 45 kg |
| Electrical Supply | 200-240 Vac, 50/60 Hz, single phase |
| Nominal Voltage | 230 Vac / 50 Hz |
| Power | 2700 W |
| Fuse | 16 A |
| Max Working Pressure | 2.5 bar (250 kPa) |
| Min Working Pressure | -0.9 bar (-90 kPa) |
| Pressure Safety Valve | 2.45 bar (245 kPa) |
| Vacuum | >-0.8bar (-80kPa) |
| Max Temperature | <145 C |
| Clean Water Tank | approx. 3.4 L |
| Waste Water Tank | approx. 1.7 L |
| Water Shortage Alarm | below 0.5 L |
| Water Consumption Per Cycle | 0.15L(Min)0.26L(Max) |
| Feed Water Quality | Fulfilling EN 13060 Ann. C (conductivity< 5microS/cm) |
| Steel Wire Carrier | 310*205*200 mm |
| Aluminum Pallet | 285*193*16 mm |
| Tray Capacity | up to 5 trays, or 3 trays rotated 90 degrees |
| Bacteriological Filter | not less than 99.5 percent for particles above 0.3 micrometres |
| Ambient Temperature | From +5 C to +40 C(ideal range 16-26 C) |
| Humidity Limit | Max. 80 % at 31 C, decreases in a linear fashion up to max. 50 % relative humidity at 40 C |
| Max Altitude | 3500m asl |
| Sound Power Level | <70db |
Materials
- Stainless steel sterilization chamber

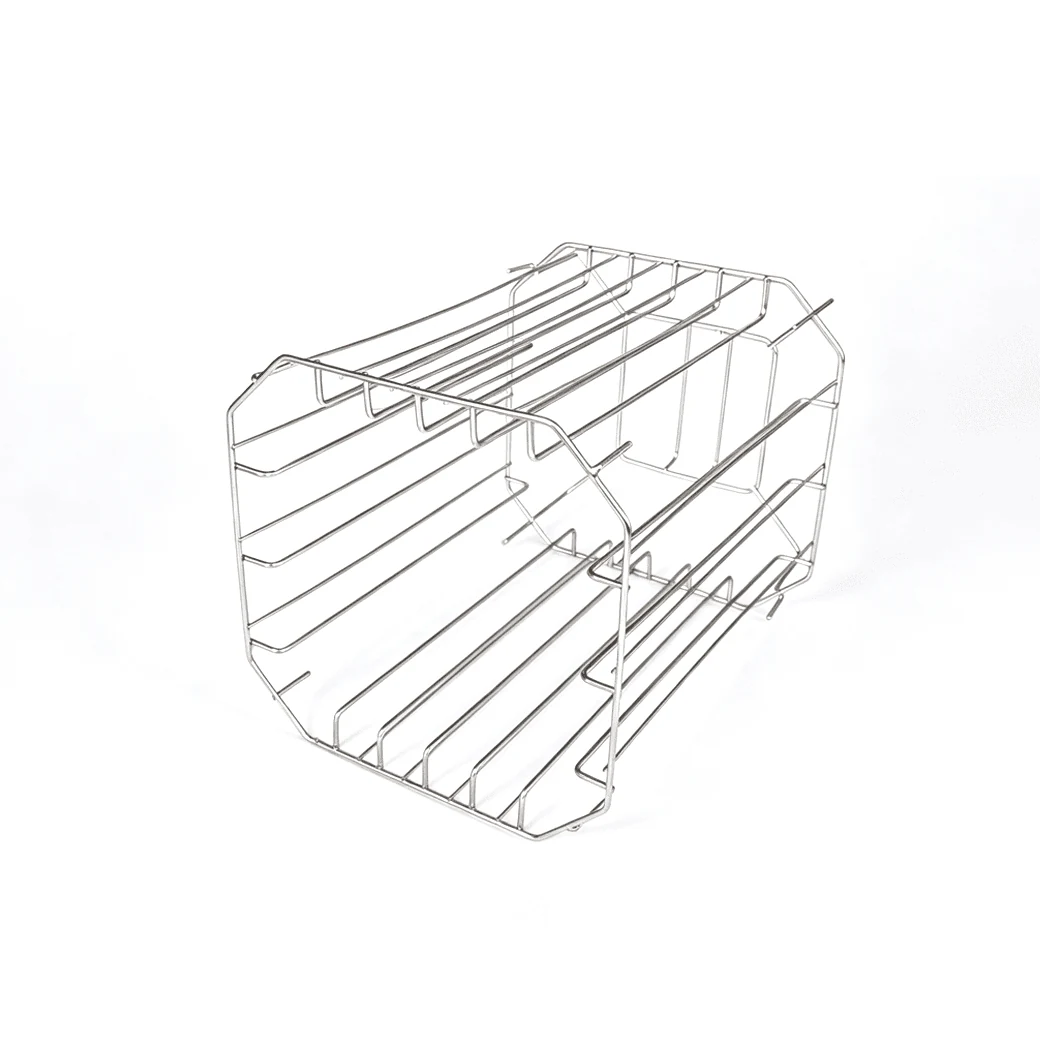

- Steel wire tray carrier

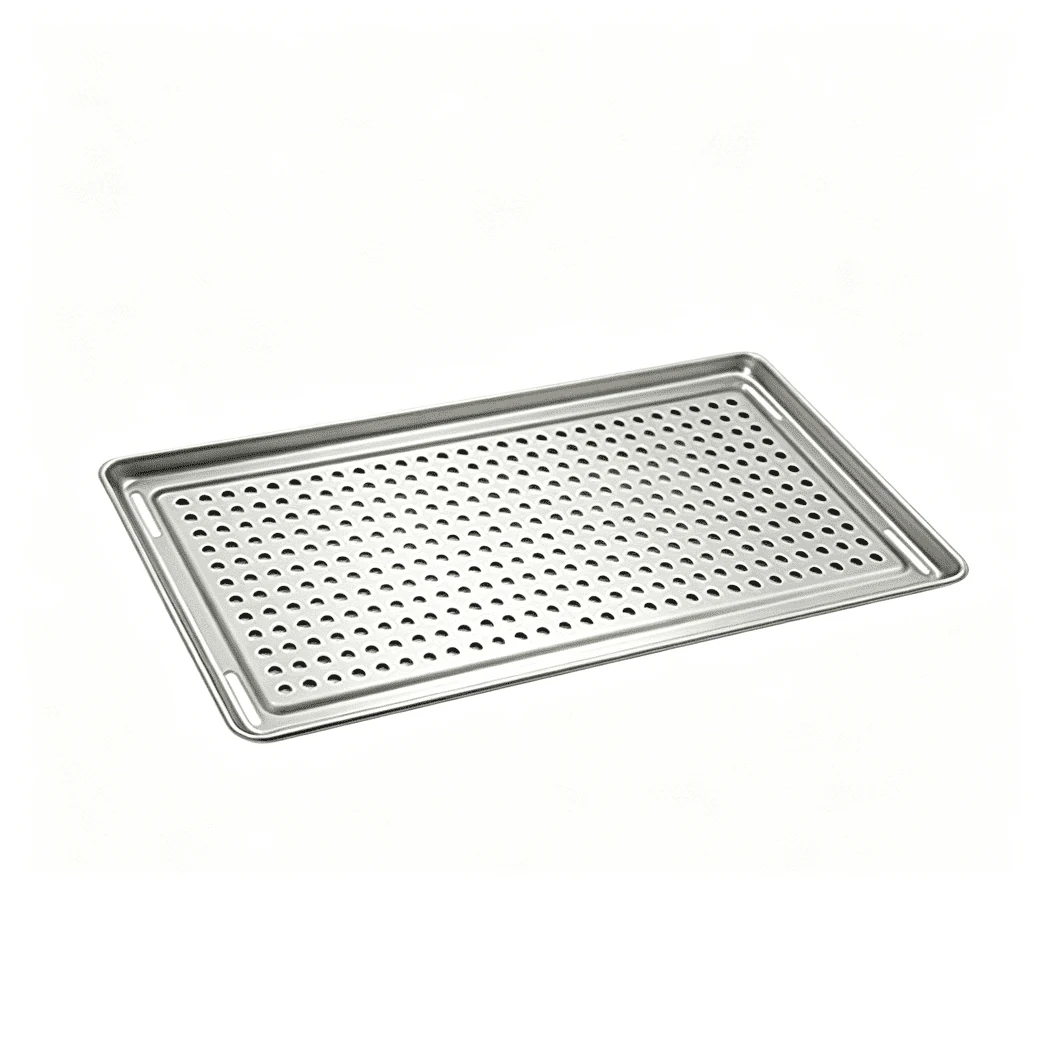

- Aluminium instrument trays
- Aluminium finned heat exchanger for the cooling window
How It Is Used In The Workflow
- Load preparation - instruments are cleaned and dried before wrapping
- Wrapping - pouches or reels are sealed with the cycle date visible
- Water supply - the tank is filled with distilled water below 5 microsiemens per cm
- Cycle selection - the operator picks one of the 8 programs and tests on the touchscreen
- Fractionated vacuum - repeated vacuum and steam pulses remove air
- Sterilization and drying - the cycle holds temperature, then dries
- Record - the cycle is written to SD card or USB and printed if a printer is fitted
Quality Control
- Vacuum and pressure limits are monitored on every cycle and the cycle aborts if a limit is missed
- Programs and tests on board include the routine tests a practice runs before the first load
- The intelligent diagnosis system identifies the failing section
- Each unit is aged tested before shipment
- Cycle data is retained on removable media so a failed cycle can be traced
Certifications And Conformity
- EN 13060 small steam sterilizer
- IEC 61010-1
- IEC 61010-2-040
Options
Configuration And Customization
Automatic water filling system
Built in water quality detection
Built in automatic printer or external printer
Instruments management assistant trays
Multi language operating system
Comparison
How The Novo Pro 18L Compares
| Compared With | What Changes |
|---|---|
| Class N sterilizer | A Class N unit only handles unwrapped solid instruments; the Novo Pro 18L also processes wrapped and hollow loads |
| Novo Pro 23L | The 18 L chamber suits a single chair practice; the 23 L takes more per load when the schedule is full |
Use Guide
Running The Novo Pro 18L Day To Day
- Fill the clean water tank with distilled water below 5 microsiemens per cm and check the level indicator
- Run the daily test programme before the first patient load
- Load trays so pouches lie flat with the paper side up and do not touch the chamber wall
- Select the program that matches the load: wrapped, hollow or solid
- Use extra drying for dense instrument assemblies
- Empty the waste water tank when prompted and never return waste water to the clean tank
- Keep the SD card in place so every cycle is recorded, and archive the file periodically
FAQ
Novo Pro 18L Questions
What is the difference between Class B and Class N sterilization
Class B uses fractionated vacuum to pull air out of the chamber before steam enters, so steam reaches wrapped instruments and the inside of hollow handpieces. Class N handles unwrapped solid instruments only. The Novo Pro 18L runs Class B cycles conforming to EN 13060.
What water does the sterilizer need
Feed water must meet EN 13060 Annex C, which means conductivity below 5 microsiemens per centimetre. Distilled water meets this. Tap water scales the boiler and shortens the life of the machine.
How many instrument trays fit in one load
The carrier takes up to five trays, or three trays when they are rotated 90 degrees. The steel wire carrier measures 310 x 205 x 200 mm and the aluminium trays 285 x 193 x 16 mm.
How are cycle records kept for an inspection
Every cycle is written to SD card or USB. A built in automatic printer and an external printer are both available as options, so a paper record can be attached to the day sheet as well.
What power supply does it need
200-240 Vac, 50/60 Hz single phase, nominally 230 Vac at 50 Hz, drawing 2700 W and protected by a 16 A fuse. Plan a dedicated circuit rather than sharing a socket with other equipment.
Can it be used at altitude
The unit is rated to 3500 m above sea level. Above that height it must not be used, because the pressure and temperature relationship the cycle depends on no longer holds.
Do you supply OEM or ODM versions for distributors
Joident supplies distributors and OEM or ODM partners, including a multi language operating system. Send your requirement on WhatsApp or by email and we will confirm what is feasible.
