Steam Sterilizer
Novo Pro 23L Plus
The Novo Pro 23L Plus is a Class B steam sterilizer for practices that need to turn instruments around quickly.
Novo Pro 23L Max Steam Sterilizer
The Novo Pro 23L Max is a Class B steam sterilizer for a practice that needs to turn around instruments quickly between patients.
Overview
What The Novo Pro 23L Max Is For
The Novo Pro 23L Max is a Class B steam sterilizer for a practice that needs to turn around instruments quickly between patients. A 23 L chamber accepts up to five trays, fractionated vacuum removes air from wrapped and hollow loads, and cycle data is logged to SD card or USB for compliance. It operates on 220-240 VAC, 50/60 Hz single phase power.
100+Countries with users
8Patented technologies
1800Days of aging test
24Months warranty
Key Benefits
Why Clinics Choose The Novo Pro 23L Max
Class B fractionated vacuum cycles sterilize wrapped instruments and hollow handpieces, meeting EN 13060
Up to five trays per load reduce the number of cycles needed during a busy session
Cycle data is traceable on SD card or USB, simplifying compliance without manual logging
Preheating with standby maintains chamber temperature, reducing cycle times
Intelligent monitoring and diagnosis identifies the failing section and displays a fault message
Double door locking prevents cycles from starting on an unlocked door or opening during pressure
Application Scenarios
- Turning around handpieces and instruments between patients in a dental practice
- Sterilizing wrapped surgical kits for use at the chairside
- Reprocessing hollow instruments where air would prevent steam penetration
- Running an end-of-day load of pouched instruments with extra drying
- Providing a stored cycle record for inspections or accreditation audits
Who It Is For
- Dental clinics and stomatology departments needing on-site instrument reprocessing
- Small hospitals and outpatient practices without a central sterile services department
- Aesthetic and cosmetic clinics sterilizing reusable instruments
- Veterinary practices sterilizing surgical packs in-house
- Dental equipment distributors requiring a documented Class B sterilizer
Problems It Solves
What Goes Wrong Without It
- Unwrapped-only sterilizers cannot process pouched or hollow loads, limiting service offerings
- Manual cycle logs are prone to errors and loss during inspections
- Damp instruments require reprocessing, wasting time and resources
- Cold starts slow down the first cycles of the day when the schedule is busiest
- Tap water scaling reduces chamber life and efficiency
Technical
Technical Features And Specifications
- Class B fractionated vacuum cycles conforming to EN 13060
- 23 L chamber with a usable volume for up to five trays
- 260 x 142 mm cooling window with 73 aluminium radiating layers and 18 radiating pipes
- Intelligent monitoring and diagnosis system identifies the failing section
- SD card or USB traceability with optional built-in or external printer
- Bacteriological filter retaining not less than 99.5 percent of particles above 0.3 micrometres
- Double safety door locking with mechanical, sensor and pressure locks
- Optional built-in water quality detection
- Water tank group is completely accessible for cleaning
| Cycle Type | Class B, fractionated vacuum |
|---|---|
| Chamber Volume | 23 L |
| Electrical Supply | 220-240 VAC, 50/60Hz, single-phase |
| Max Working Pressure | 2.5 Bar(250 kPa) |
| Min Working Pressure | -0.9 Bar(-90 kpa) |
| Max Temperature | <145 C |
| Clean Water Tank | 3.5 L |
| Sewage Tank | 1.7 L |
| Bacteriological Filter | not less than 99.5 percent for particles above 0.3um |
| Conformity | EN 13060 |
Materials
- Stainless steel sterilization chamber

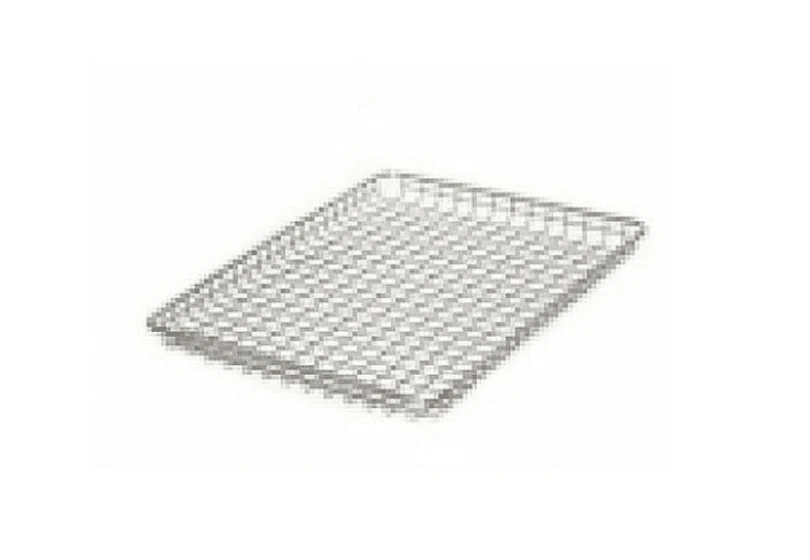

- Steel wire tray carrier
- Aluminium instrument trays
How It Is Used In The Workflow
- Load preparation - instruments are cleaned and dried before wrapping
- Wrapping - pouches or reels are sealed with the cycle date visible
- Water supply - the tank is filled with distilled water meeting EC conductivity <15uS/cm
- Cycle selection - the operator selects the appropriate program on the touchscreen
- Fractionated vacuum - repeated vacuum and steam pulses remove air from loads
- Sterilization and drying - the cycle holds temperature, then dries
- Record - the cycle is written to SD card or USB and printed if a printer is fitted
Quality Control
- Vacuum and pressure limits are monitored on every cycle, aborting if limits are exceeded
- Programs include routine tests to verify functionality before each load
- The diagnosis system identifies the failing section rather than a generic error
- Each unit undergoes an aging test measured in days
- Cycle data is retained on removable media for traceability
Certifications And Conformity
- EN 13060 small steam sterilizer
- IEC 61010-1
- IEC 61010-2-040
Options
Configuration And Customization
Automatic water filling system
Built-in water quality detection
Built-in or external printer for cycle records
Instruments management assistant trays for small instruments
Multi-language operating system
Comparison
How The Novo Pro 23L Max Compares
| Compared With | What Changes |
|---|---|
| Class N sterilizer | The Novo Pro 23L Max processes wrapped and hollow loads, while a Class N unit only handles unwrapped solids |
| Smaller chamber sterilizers | A 23 L chamber handles more instruments per load, reducing cycle frequency |
| Sterilizers without data logging | SD card or USB traceability simplifies compliance and audit preparation |
Use Guide
Running The Novo Pro 23L Max Day To Day
- Fill the clean water tank with distilled water and check the level indicator
- Run the daily test program before the first patient load
- Load trays so pouches lie flat and do not touch the chamber wall
- Select the program that matches the load type
- Use extra drying for dense instrument assemblies
- Empty the waste water tank when prompted and never return waste water to the clean tank
- Keep the SD card in place for cycle recording and archive the file periodically
FAQ
Novo Pro 23L Max Questions
What is the chamber volume
The Novo Pro 23L Max has a 23 L chamber with a usable volume for up to five trays.
What type of water is required
Distilled water with EC conductivity below 15uS/cm is required.
What cycle types are available
The sterilizer offers cycles for solid, hollow, and wrapped loads, including Class B fractionated vacuum cycles.
How is cycle data recorded
Cycle data is recorded to SD card or USB, and an optional printer is available.
What are the dimensions of the steel wire tray
The steel wire tray measures 380 x 190 x 20 mm.
What is the warranty period
The unit has a 24 month or 2000 cycle warranty.
What certifications does the unit have
The sterilizer conforms to EN 13060, IEC 61010-1, IEC 61010-2-040 and EN 61326.
