Novo Pro 29L Plus Steam Sterilizer
The Novo Pro 29L Plus is a Class B steam sterilizer for practices that need to reprocess a large volume of instruments quickly and reliably.
Overview
What The Novo Pro 29L Plus Is For

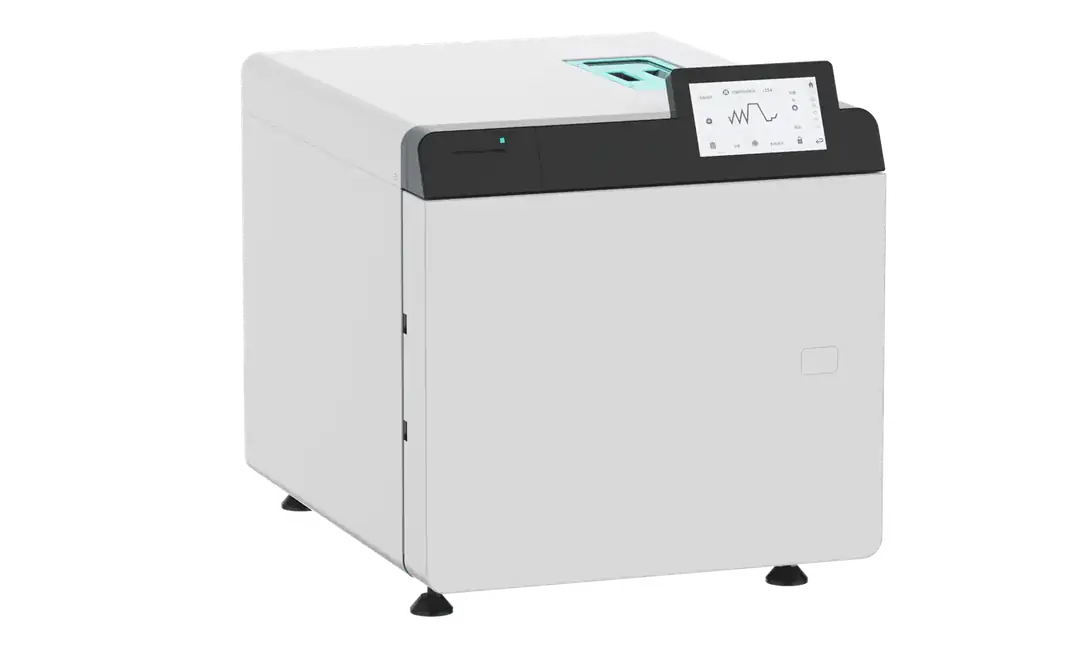

The Novo Pro 29L Plus is a Class B steam sterilizer for practices that need to reprocess a large volume of instruments quickly and reliably. A 29 L chamber accepts up to six trays, and the intelligent monitoring system diagnoses faults sectionally, displaying the message and solution directly. It features a pre-heating system for faster cycles and a large cooling window for rapid steam condensation.
60+Countries with users
8Patented technologies
1800Days of aging test
24Months warranty
Key Benefits
Why Clinics Choose The Novo Pro 29L Plus
Class B fractionated vacuum sterilizes wrapped instruments, hollow handpieces and porous loads
Six trays per load reduce the number of cycles needed during peak times
Intelligent diagnosis system identifies the failing section and displays the fault message
Preheating system maintains chamber temperature and reduces cycle time
SD card logging and optional thermal printer provide traceable cycle records
Double safety locking prevents operation with an unlocked door or under pressure
Application Scenarios
- Sterilizing large instrument sets for multiple dental chairs in a busy practice
- Reprocessing surgical kits with wrapped and unwrapped components
- Handling a high throughput of instruments in a surgical center
- Running end-of-day cycles with extra drying to prevent damp storage
- Meeting the documentation requirements of regular practice inspections
Who It Is For
- Dental clinics and stomatology departments with a high patient volume
- Surgical centers requiring reliable and efficient sterilization
- Hospitals and medical practices with a dedicated sterilization room
- Veterinary practices needing to sterilize large numbers of surgical packs
- Dental equipment distributors seeking a high-capacity Class B autoclave
Problems It Solves
What Goes Wrong Without It
- Small chambers limit the number of instruments processed per cycle, slowing down workflows
- Complex fault codes require specialist technicians to diagnose and repair sterilizers
- Long cycle times create bottlenecks during peak periods
- Manual record keeping is prone to errors and difficult to audit
- Inadequate cooling slows down the turnaround time for instruments
Technical
Technical Features And Specifications
- Class B fractionated vacuum cycles conforming to YY/T0646-2015
- 260 x 142 mm cooling window with 73 aluminium radiating layers and 18 radiating pipes
- Intelligent monitoring and diagnosis system with sectional fault identification
- Preheating system with standby to maintain chamber temperature
- SD card logging and optional built-in or external thermal printer
- Double safety locking with mechanical lock, sensor switch and pressure lock
- Automatic water filling system (optional) with level sensor
- Bacteriological filter retaining not less than 99.5 percent of particles above 0.3 micrometres
| Cycle Type | Class B, fractionated vacuum |
|---|---|
| Chamber Volume | 29 L |
| Electrical Supply | 220-240 VAC, 50/60Hz, single-phase |
| Nominal Voltage | 220V, 50Hz |
| Max Current | 10A |
| Max Altitude | 2000 m |
| Max Working Pressure | 2.5 Bar(250 kPa) |
| Min Working Pressure | -0.9 Bar(-90 kpa) |
| Max Temperature | <145 C |
| Clean Water Tank | 3.5L |
| Water Quality | EC(conductivity<15uS/cm) |
| Bacteriological Filter | not less than 99.5 percent for particles above 0.3um |
| Sound Power Levels | < 80 DB |
Materials
- Stainless steel sterilization chamber
- Steel wire tray carrier
- Aluminium instrument trays
How It Is Used In The Workflow
- Load preparation - instruments are cleaned and dried before wrapping
- Wrapping - pouches or reels are sealed with the cycle date visible
- Water supply - the tank is filled with distilled water below 15 microsiemens per cm
- Cycle selection - the operator selects from the pre-set programs
- Fractionated vacuum - repeated vacuum and steam pulses remove air
- Sterilization and drying - the cycle holds temperature and dries
- Record - the cycle is logged to SD card or printed
Quality Control
- Vacuum and pressure limits are monitored on every cycle
- Programs include routine tests for daily verification
- The intelligent diagnosis system identifies the failing section
- Each unit undergoes an 1800 day aging test
- Cycle data is retained on removable media for traceability
Certifications And Conformity
- EN 13060 small steam sterilizer
- IEC 61010-1
- IEC 61010-2-040
Options
Configuration And Customization
Automatic water filling system
Built-in or external thermal printer
Instruments management assistant trays
Multi-language operating system
Comparison
How The Novo Pro 29L Plus Compares
| Compared With | What Changes |
|---|---|
| Class N sterilizer | A Class N unit only handles unwrapped solids; the Novo Pro 29L Plus processes wrapped and hollow loads at a higher purchase price |
| Novo Pro 23L Plus | The 23 L chamber suits a smaller practice; the 29 L handles larger volumes and instrument sets |
| Central sterile services | Outsourcing adds transport time and requires a second set of instruments; the Novo Pro 29L Plus keeps reprocessing in-house |
Use Guide
Running The Novo Pro 29L Plus Day To Day
- Fill the clean water tank with distilled water and check the level indicator
- Run the daily test program before the first patient load
- Load trays so pouches lie flat and do not touch the chamber wall
- Select the appropriate program for the load type
- Use extra drying for dense instrument assemblies
- Empty the waste water tank when prompted
- Keep the SD card in place for cycle records
FAQ
Novo Pro 29L Plus Questions
What sterilization cycles are available
Pre-set programs include cycles for solid instruments, hollow bodies, multiple wrapping, glass instruments, and low temperature textiles. Cycle times vary from 4 to 30 minutes.
What water quality is required
Feed water must have a conductivity of less than 15 microsiemens per cm. Distilled water is recommended.
How many instrument trays fit in one load
The carrier can hold up to six trays or three trays rotated 90 degrees.
How are cycle records kept
Each cycle is logged to SD card and can be printed using the optional thermal printer.
What is the warranty period
The Novo Pro 29L Plus is covered by a 24 month or 2000 cycle warranty, whichever comes first.
What happens if there is a fault
The intelligent diagnosis system identifies the failing section and displays the fault message with a simple solution.
What is the maximum altitude for operation
The unit is rated for use up to 2000 m above sea level. Above that altitude, contact service for guidance.
