Thermal Sealer
Seal Eco
The Seal Eco is a thermal sealer designed for small to mid-size clinics that need to wrap instruments in steri.
Seal Thermal Sealer
The Seal thermal sealer is designed for clinics that need reliable, consistent sealing of sterilization pouches and reels without manual errors.
Overview
What The Seal Is For
The Seal thermal sealer is designed for clinics that need reliable, consistent sealing of sterilization pouches and reels without manual errors. It uses constant temperature heating and automatic pressure control to create 12 mm-wide seams that pass a 3 second pressure test, ensuring no leakage. The machine fits in a small reprocessing area and operates with minimal setup, making it ideal for practices with rotating staff or limited space.
80+Countries with users
5+Patented technologies
1800Days of aging test
12Months warranty
Key Benefits
Why Clinics Choose The Seal

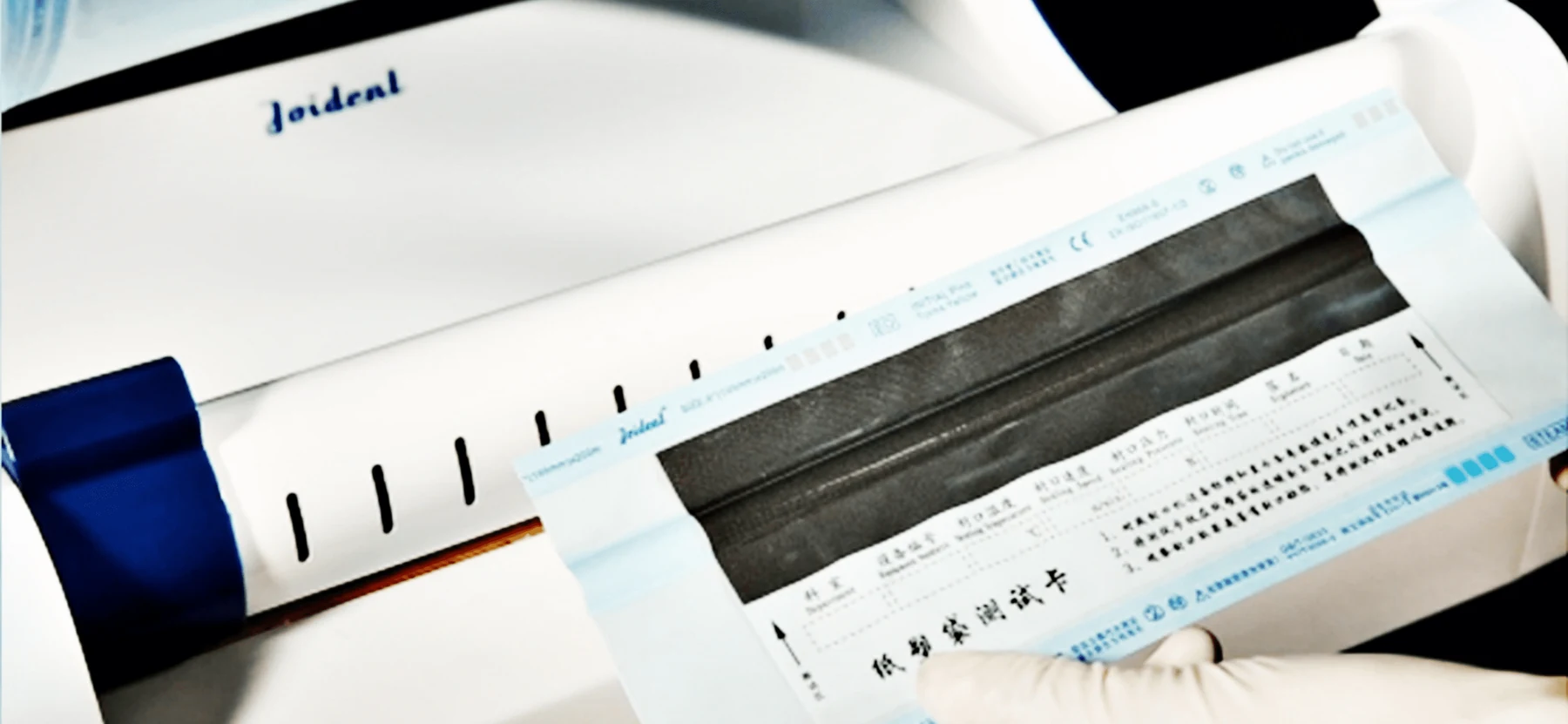

12 mm-wide sealing seams pass a 3 second pressure test with no risk of burning or failure
Constant temperature heating and automatic pressure adjustment maintain seal quality during continuous use
Rapid warming in 2 to 3 minutes allows quick start-up between patient loads
Hidden sliding blade protects the user from injury during operation
Bi-directional sealing allows sealing from either end of the roll without repositioning
Roll holder supports up to three different roll widths simultaneously for high efficiency
Application Scenarios
- Sealing sterilization pouches immediately after instrument loading, before placing them in a Novo Pro sterilizer
- Wrapping instrument sets in a dental clinic with limited bench space and rotating staff
- Processing multiple pouches per day in a busy stomatology department with high turnover
- Maintaining consistent seal quality in a veterinary clinic where instrument sets are reused frequently
- Supporting a dental distributor’s ODM programme with a reliable, simple-to-operate sealing unit
Who It Is For
- Dental clinics and stomatology departments that reprocess instruments on site
- Aesthetic and cosmetic clinics using reusable cannulas and instrument sets
- Veterinary practices that sterilize surgical packs in house
- Tattoo and piercing studios requiring sealed, sterile packaging
- Dental equipment distributors and OEM/ODM partners needing a modular sealing unit
Problems It Solves
What Goes Wrong Without It
- Manual sealing leads to inconsistent seams, which can fail under pressure and compromise sterility
- Sharp blades on older sealers increase the risk of injury during routine operation
- Seals that burn or roll during use lead to contamination and the need for reprocessing
- Lack of automatic signals means staff may miss the end of a sealing cycle
- Inflexible machines require changing rolls frequently, slowing down the workflow
- Poor sealing quality after repeated use leads to failed sterilization cycles
Technical
Technical Features And Specifications
- Constant temperature heating with automatic pressure adjustment for consistent seal quality
- Bi-directional sealing allows sealing from either end of the roll without repositioning
- Hidden sliding blade design protects the operator from cuts
- Automatic beep signal indicates when sealing is complete
- Intelligent sealing system maintains performance during continuous operation
- Rapid preheating in 2 to 3 minutes reduces downtime between cycles
- Roll holder supports up to three different roll widths at once for high efficiency
- Overheat protection prevents damage during prolonged use
- Front indicator and sound alarm provide visual and audible feedback
- Sealing width adjustable to match the width of the sterilization bag
| Voltage Frequency | 220V, 110V 150Hz, 60Hz |
|---|---|
| Consumption Power | 100 W |
| Preheating Time | 2-3 min |
| Packing Width | 12 mm |
| Maximum Bearing Width | 300 mm |
| Overheat Protection | Yes |
| Gross Weight | 7.5 kg |
| Phase Number | Single phase |
| Fuse Specification | 2-5 x 20 T8A |
| Service Environment | Indoor use, altitude < 3000 m, ambient temperature 5 to 40 C, relative humidity 85% RH, max fluctuation ±10% |
| Conformity | Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU, Machinery Safety Directive 2006/42/EC |
| Sealing Quality | 12 mm-wide seams pass 3 second pressure test with no risk of burning |
| Sealing System | Intelligent, automatic temperature and pressure control |
| Roll Holder Capacity | Up to 3 rolls at once |
| Roll Width Options | 5 cm, 7.5 cm, 10 cm, 15 cm, 20 cm, 25 cm, 30 cm |
| Sealing Speed | Quick sealing, no specified time in FACTS |
| Weight | 1.23 kg to 7.4 kg depending on model |
| Order Number | 00502, 07752, 01002, 01502, 02002, 02502, 03002 |
Materials
- Stainless steel sealing bars
- Plastic housing with minimalist design
- Hidden sliding blade made of durable metal
- Roll holder with adjustable guides for different widths
How It Is Used In The Workflow
- Prepare the sterilization bag by placing instruments inside and closing the open end
- Insert the bag into the sealer and align the edge with the sealing bar
- Press the start button; the machine preheats in 2 to 3 minutes
- The sealing system automatically adjusts temperature and pressure for a consistent 12 mm seal
- The beep signal confirms the seal is complete
- Remove the sealed pouch and check for any roll or scorch marks
- Store the pouch in the sterilizer or place it in a waiting area for the next cycle
Quality Control
- Every unit undergoes an 1800-day aging test before shipment
- Seal quality is verified under 3 seconds of pressure test with no failure
- Automatic temperature and pressure control ensures consistency across cycles
- Overheat protection prevents damage during prolonged use
- Intelligent system monitors performance and adjusts in real time
- All units are tested for compliance with EU directives before delivery
Certifications And Conformity
- EN 13060 small steam sterilizer
- IEC 61010-1
- IEC 61010-2-040
Options
Configuration And Customization
Optional instrument tray for organizing pouches during sealing
Multi-language operating system for international markets
OEM and ODM builds available for distributors, including custom branding and packaging
Adjustable roll holder for specific roll width configurations
Custom order numbers and model designations for bulk supply
Comparison
How The Seal Compares
| Compared With | What Changes |
|---|---|
| Manual heat sealer | The Seal machine ensures consistent seal quality with automatic temperature and pressure control; manual sealers rely on operator skill and often produce uneven or weak seals |
| Single-direction sealer | The Seal supports bi-directional sealing, allowing faster operation without repositioning the roll; single-direction models require repositioning after each seal |
| Sealer without safety blade | The Seal has a hidden sliding blade that protects the user; other models expose sharp edges during operation |
| Sealer without automatic signal | The Seal uses a beep and front indicator to confirm completion; models without signals require visual monitoring, increasing the risk of missed cycles |
Use Guide
Running The Seal Day To Day
- Place the sterilization bag in the sealer with the open end aligned to the sealing bar
- Ensure the roll width matches the adjustable guide on the machine
- Press the start button and wait for the beep signal indicating the seal is complete
- Check the seal for any scorching, rolling, or gaps after removal
- Use only rolls with widths listed in the specifications (5 cm to 30 cm)
- Do not operate the machine if the overheat protection has triggered
- Clean the sealing bars regularly to prevent residue buildup
FAQ
Seal Questions
What is the sealing width and how is quality tested
The machine creates 12 mm-wide seals. Quality is tested by applying 3 seconds of pressure; the seal must not fail or burn.
Can the machine seal both ends of a roll
Yes. The bi-directional design allows sealing from either end without repositioning the roll.
Is the blade safe to use
Yes. The hidden sliding blade is protected during operation and only exposed during maintenance, reducing the risk of injury.
How long does it take to preheat
The machine preheats in 2 to 3 minutes, allowing quick start-up between cycles.
What roll widths can it handle
The machine supports rolls from 5 cm to 30 cm wide, with up to three different widths in use at once.
Does it have automatic temperature control
Yes. The intelligent system adjusts temperature and pressure automatically to maintain seal quality during continuous use.
Can you get OEM or ODM versions
Yes. Joident offers OEM and ODM builds for distributors, including custom branding, order numbers, and language settings. Contact via WhatsApp or email for details.
