Sausage Guns

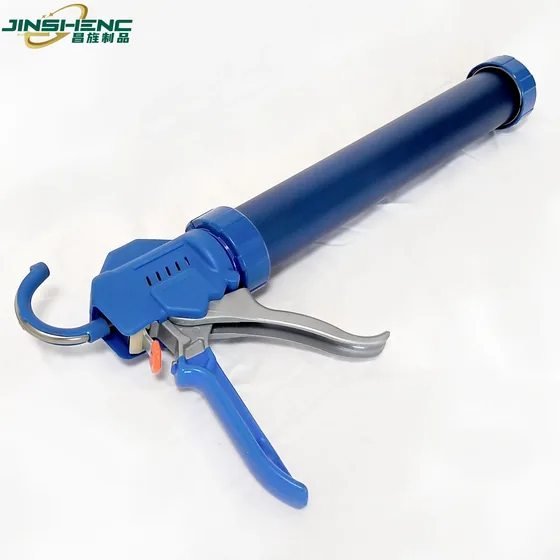

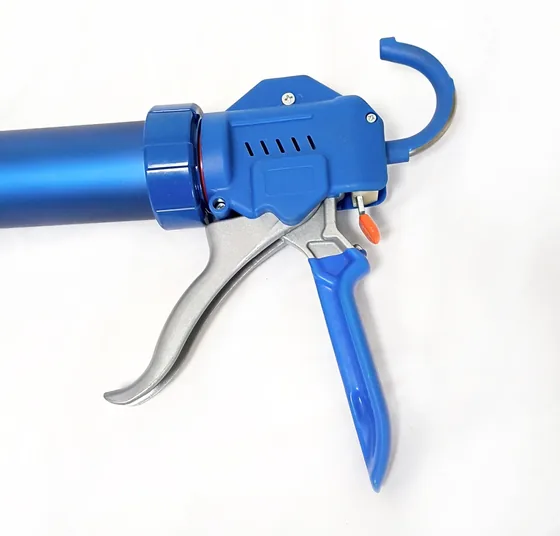

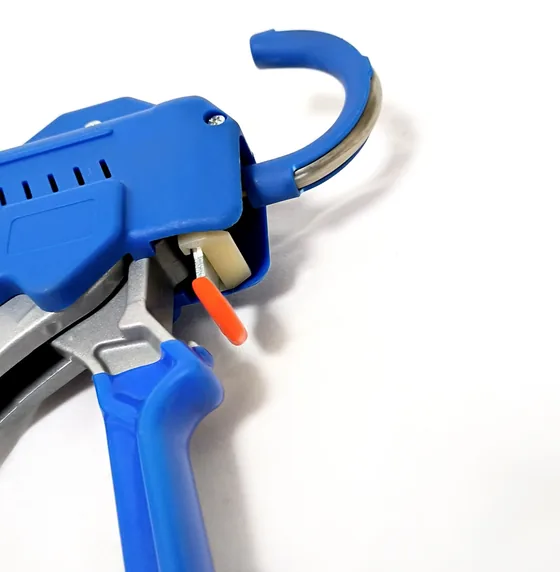

JS8634 high quality heavy duty nine bearing sausage pack silicone caulking gun(with dust cover)
Nine bearings, 250 KG push force, 300 KG tolerance at 25:1, in an 800 g body with a thicker aluminium tube, a stainless steel push rod and a protective dust cap.
Product Overview
Nine bearings, 250 KG push force, 300 KG tolerance at 25:1, in an 800 g body with a thicker aluminium tube, a stainless steel push rod and a protective dust cap. This is the gun for crews running sealant continuously, and the dust cap is the detail that says who it was designed for.
Key benefits
Why Buyers Choose This Model
Nine Bearings
Nine bearings strategically positioned for efficiency, smoothness and stability. The pack empties more completely and the pull stays light to the end of it.
Protective Dust Cap
A dust cap safeguarding the critical components from dust and debris. On a gun whose advantage is low friction, keeping grit out of the bearings is the whole point.
300 KG Tolerance At 800 g
A 20 percent margin on the highest push force in the nine-bearing pair, and it weighs less than the seven-bearing JS8626.
Hard Alloy Plate And Stainless Rod
A thicker super hard alloy dispensing plate and a corrosion-resistant stainless steel push rod, the two parts that decide whether high force stays usable.
Application scenarios
Where It Is Used
- Continuous all-day professional sealing
- Dusty sites where bearings would otherwise pick up grit
- Structural silicone on curtain wall
- Flagship model of a professional own-brand range
Who it is for
The Buyers This Model Suits
Continuous-Use Crews
Seals all day, every day, and is the only kind of customer for whom nine bearings is the obvious choice.
Dusty Site Contractors
The dust cap is the reason this model survives on a concrete site where an open mechanism would not.
Distributors Building A Flagship
Needs a top of range with a specification list a customer can read and understand.
Problems it solves
What It Fixes
Sealant Left In The Pack
A gun that binds late in a 600 ml pack wastes sealant every pack. Nine bearings keeps it moving to the end.
Grit In The Mechanism
Low friction is only an advantage while the bearings are clean, which is exactly why the dust cap is fitted.
High Force At Acceptable Weight
250 KG in an 800 g gun, lighter than the 880 g seven-bearing model.
Technical features
How It Is Built
Full Aluminum Alloy Handle
The handle is entirely crafted from lightweight yet robust aluminum alloy, providing both durability and comfortable operation.
9-Bearing Design
JS8634 silicone gun is equipped with 9 bearings strategically positioned to deliver unmatched efficiency, smoothness, and stability in your construction tasks, reducing effort and enhancing precision.
Thickened Aluminum Cover
The aluminum cover is constructed from thickened aluminum alloy, offering increased durability and impact resistance, ensuring longevity even in demanding work environments.
Hard Alloy Dispensing Plate
The dispensing plate is reinforced with a thicker super hard alloy, amplifying dispensing force and force-to-output ratio, perfect for heavy-duty construction tasks.
Exceptional Grip
JS8634 is designed with ergonomic excellence, ensuring grip for comfortable and controlled operation.
Drip Prevention Function
The built-in drip prevention function minimizes adhesive wastage and keeps your workspace clean.
Stainless Steel Push Rod
Equipped with a corrosion-resistant stainless steel push rod, ensuring stability and durability during adhesive dispensing.
Protective Dust Cap
JS8634 comes with a protective dust cap, safeguarding critical components from dust and debris, ensuring consistent performance over time.
Specifications
Published Figures For This Model
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Net Weight | 800g |
|---|---|
| Packing | 1PC/ inner box, 20pcs/ CTN |
| Color | blue and siliver, or customized |
| Carton Size | 60.8*54*35.5 |
| Push Force | JS8634 boasts 250KG high thrust force, making it the pinnacle of silicone guns, capable of handling even the most challenging caulking projects |
| Maximum Tolerance | 300KG |
| Drive Ratio | 25:1 |
| Barrel | Featuring a thicker aluminum tube, JS8634 ensures enhanced stability and durability for prolonged use |
| Colour options | blue and siliver, or customized |
| Packing | 1PC/ inner box, 20pcs/ CTN |
| Minimum order | Ask us for a customised version |
| Customisation | Colour, packing method, carton appearance and logo |
Materials and manufacturing
How This Model Is Made
Parts for the JS8634 are produced in our own workshops in Jinli Town, Zhaoqing. This model uses both routes: its moulded components come off our five horizontal and three vertical injection moulding machines, and its metal parts come off our fifteen automatic punching machines, nine automatic lathes and three welding machines. Tooling is designed and cut in our own mould room, which is why a change to this model does not queue behind another factory's schedule.
Quality Control
- Every model is weighed against its declared net weight during production, so the carton weight on your packing list matches what arrives.
- Stamped parts are produced in house on 15 automatic punching machines and 9 automatic lathes, so dimensional consistency is controlled at source rather than inspected on arrival.
- Moulded parts come off 5 horizontal and 3 vertical injection moulding machines running up to 10,000 mould open-and-close cycles per day, with tooling maintained in our own mould room.
- The quality management system was certified to ISO 9001:2015 in August 2023, with a certificate valid to 31 July 2026.
- Cartons are counted against the packing list as they are loaded into the container at our own factory door.
Certifications
The quality management system was certified to ISO 9001:2015 in August 2023, under standard GB/T19001-2016, for the manufacture and sale of glass caulking guns and sealant guns. The certificate on file runs to 31 July 2026; ask us for the current renewal status before relying on it. A TUV Rheinland assessment was obtained in 2016.
Customisation Options
- Aluminium Tube Anodizing And Colouring: More than 10 colours available; the surface can be given a frosted texture.
- Aluminium Tube Painting: Up to 10 colours with customisable patterns.
- Aluminium Tube Laser Engraving: Engraved logos, text and patterns on stamped fittings and aluminium tubes.
- Self-Adhesive Logo Labels: Applied to the product in the position the buyer specifies.
- Multi-Colour Logo Printing: Paint screen printing in any colour, with several colours printed at once.
- Tag And Product Screen Printing: Screen printed tags and product markings, multi-colour capable.
Use guide
Getting The Best Out Of It
Step 1
Load the 600 ml pack with the rod fully retracted and cut the pack closure.
Step 2
Keep the dust cap fitted; it is the part that protects the bearings the gun is sold on.
Step 3
Work at a steady travel speed rather than increasing grip force, which the bearings have made unnecessary.
Step 4
Use drip prevention at pauses and wipe the stainless rod before sealant cures on it.
Comparison
How It Compares In Our Range
The top of the sausage range. The JS8633 is its close relative.
| JS8633 | The nine-bearings series sibling: 270 KG with 350 KG tolerance at 835 g, blue anodised. |
|---|---|
| JS8626 | Seven bearings at 200 KG and 240 KG tolerance, 880 g. The tier below. |
| JS8622-B | Three bearings at 180 KG and 220 KG tolerance, the volume model. |
FAQ
JS8634 Questions
What does the dust cap protect?
The critical components, meaning the rod and bearings, from dust and debris. On a nine-bearing gun the low friction is the product, and grit in a bearing removes it.
What are the ratings?
250 KG push force, 300 KG maximum tolerance, 25:1 drive ratio, 800 g net weight. Stock colours are blue and silver.
How does it compare with the JS8633?
JS8633 is the other nine-bearings series gun, at 270 KG push force and 350 KG tolerance, 835 g, anodised blue. This model adds the protective dust cap.
Is the push rod stainless?
Yes, corrosion-resistant stainless steel, for stability and durability through repeated exposure to sealant and solvent.
How is it packed?
One piece per inner box, 20 pieces per master carton at 60.8 x 54 x 35.5 cm.
Related products
Other Models In Sausage Guns
Industries
Trades That Use This Model
Glass And Curtain Wall
Sealant guns and vacuum lifters for crews who handle and seal glass all day
Construction Sealing And Waterproofing
Cartridge, sausage and powered guns for joint sealing and waterproofing trades
Window And Door Manufacturing
Glazing, perimeter foaming and gap filling for window and door plants and installers
Further reading
Guides That Cover This Model
How To Read Caulking Gun Force Ratings
Push force, maximum tolerance and drive ratio describe three different things. Confusing them is the most common reason a gun fails in the field.
Cartridge Or Sausage Which Sealant Gun To Stock
Sausage packs cut cost per litre and packaging waste; cartridges are simpler and universally stocked. The right answer depends on who your customer is.
How Many Bearings Does A Sausage Gun Need
Bearing count is the single clearest indicator of duty level on a sausage gun. Three, seven and nine are genuinely different tools.
Quote The JS8634
Send the quantity and your colour and packing requirements, and we will confirm the minimum and a production date.
