Sausage Guns

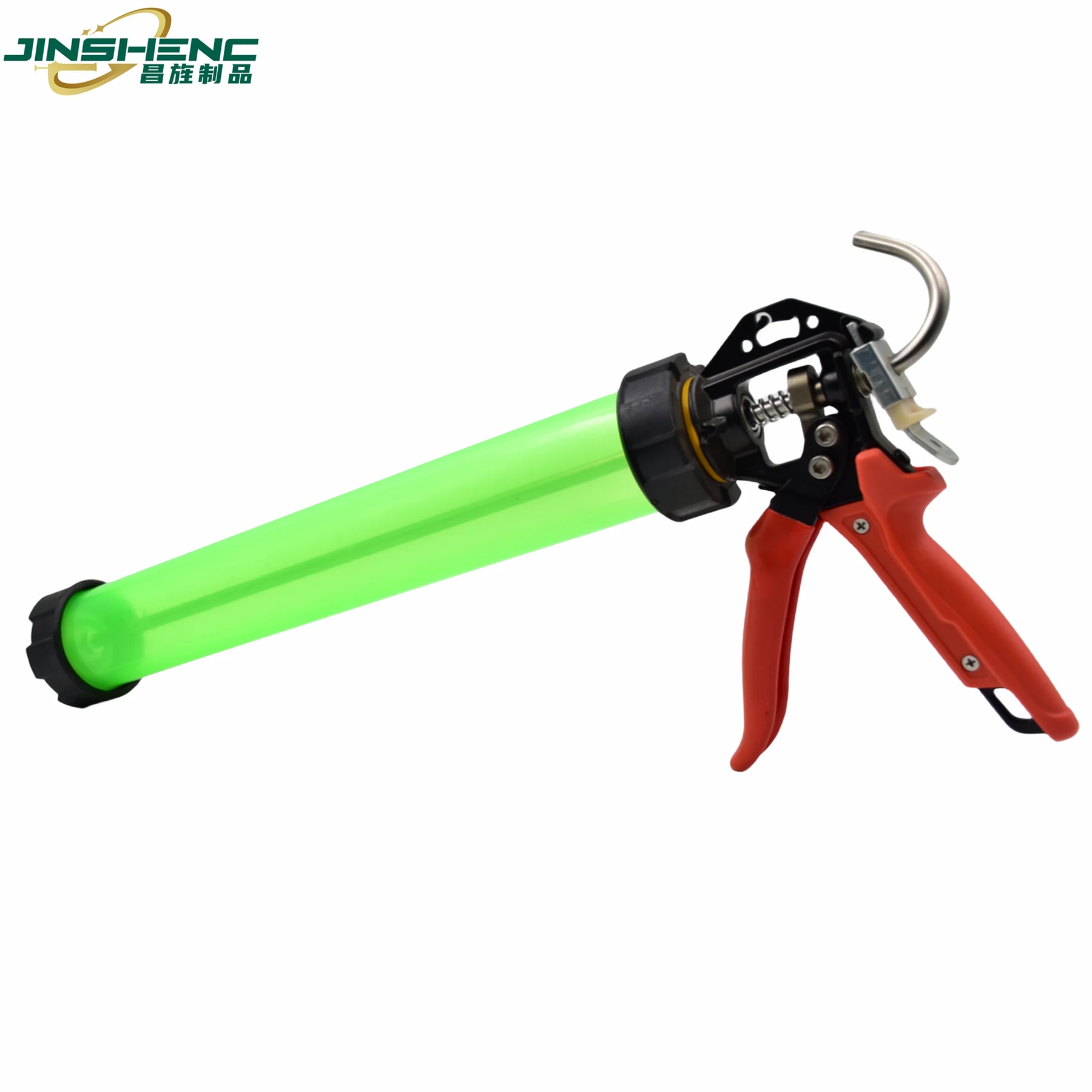

JS8623-B 16 inch 600ml heavy duty plastic silicone sealant gun caulking gun
The reinforced version of the PP barrel gun: a thicker tube wall, a silicone sleeve over the tube section, three bearings and a full aluminium handle.
Product Overview
The reinforced version of the PP barrel gun: a thicker tube wall, a silicone sleeve over the tube section, three bearings and a full aluminium handle. 835 g, 180 KG push force, 200 KG tolerance at 25:1. It combines the drop resistance of moulded PP with the trigger feel of a bearing gun.
Key benefits
Why Buyers Choose This Model
Reinforced Thicker Tube Wall
The tube wall is reinforced over the JS8623-A for durability and stability, adapting the gun to a wider range of site conditions.
Silicone Sleeve On The Tube
A silicone sleeve added to the tube section, which protects the barrel and gives the supporting hand something better than bare plastic to hold.
Three Bearings At 180 KG
Bearings at the key friction points reduce the pull for the same output, which a PP-barrel gun at this force level otherwise would not have.
Full Aluminium Handle
An aluminium handle combining light weight with the rigidity needed to carry the 200 KG tolerance, plus a plastic front handle sleeve.
Application scenarios
Where It Is Used
- Daily professional sealing where tools also get dropped
- Curtain wall and facade work at height
- Crews wanting bearings without an aluminium barrel
- Top of a durable-barrel range
Who it is for
The Buyers This Model Suits
Facade Crews At Height
Needs both the drop resistance and the reduced trigger effort, which is an unusual combination to find in one gun.
Professional Contractors
Seals daily and has written off aluminium-barrel guns to impact damage.
Distributors With Two PP Tiers
Uses JS8623-A and JS8623-B as a pair, differentiated by wall thickness, sleeve and bearings.
Problems it solves
What It Fixes
Choosing Between Durability And Feel
Moulded PP survives drops but plain PP guns usually feel cheap. Three bearings and an aluminium handle close that gap.
Bare Plastic Under The Supporting Hand
The silicone tube sleeve is there for grip and protection at the point the gun is actually held.
Force Limits On A Moulded Barrel
A reinforced wall is what takes this design from 150 KG to 180 KG.
Technical features
How It Is Built
JS8623-A Thicker Tube Wall
The tube wall of JS8623-B caulking gun is reinforced for increased durability and stability, adapting to a wider range of construction environments.
Sleeve
A silicone sleeve is added to the gun’s tube section, providing extra protection and enhanced grip comfort, improving the overall operational experience.
Front Handle
The front handle is equipped with a plastic sleeve, offering improved grip and operational comfort.
Three-Bearing Design
Three bearings are strategically placed in key locations to reduce friction during operation, delivering a smoother adhesive application experience.
Drip Prevention Function
The gun features a drip prevention function, minimizing adhesive wastage and maintaining a clean construction site.
Full Aluminum Handle
The gun’s handle is made from full aluminum material, combining lightweight design with robustness for extended durability.
Alloy Dispensing Plate
The gun’s dispensing plate is constructed from sturdy alloy material, ensuring stable and precise adhesive application.
Specifications
Published Figures For This Model
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Net Weight | 835 g |
|---|---|
| Packing | 1PC/ inner box, 20pcs/ CTN |
| Color | green, or customized |
| Carton Size | 60.8*54*35.5 |
| Push Force | 180KG |
| Maximum Tolerance | 200KG |
| Drive Ratio | 25:1 |
| Colour options | green, or customized |
| Packing | 1PC/ inner box, 20pcs/ CTN |
| Minimum order | 2000pcs for a customised version |
| Customisation | Colour, packing method, carton appearance and logo |
Materials and manufacturing
How This Model Is Made
Parts for the JS8623-B are produced in our own workshops in Jinli Town, Zhaoqing. This model uses both routes: its moulded components come off our five horizontal and three vertical injection moulding machines, and its metal parts come off our fifteen automatic punching machines, nine automatic lathes and three welding machines. Tooling is designed and cut in our own mould room, which is why a change to this model does not queue behind another factory's schedule.
Quality Control
- Every model is weighed against its declared net weight during production, so the carton weight on your packing list matches what arrives.
- Stamped parts are produced in house on 15 automatic punching machines and 9 automatic lathes, so dimensional consistency is controlled at source rather than inspected on arrival.
- Moulded parts come off 5 horizontal and 3 vertical injection moulding machines running up to 10,000 mould open-and-close cycles per day, with tooling maintained in our own mould room.
- The quality management system was certified to ISO 9001:2015 in August 2023, with a certificate valid to 31 July 2026.
- Cartons are counted against the packing list as they are loaded into the container at our own factory door.
Certifications
The quality management system was certified to ISO 9001:2015 in August 2023, under standard GB/T19001-2016, for the manufacture and sale of glass caulking guns and sealant guns. The certificate on file runs to 31 July 2026; ask us for the current renewal status before relying on it. A TUV Rheinland assessment was obtained in 2016.
Customisation Options
- Aluminium Tube Anodizing And Colouring: More than 10 colours available; the surface can be given a frosted texture.
- Aluminium Tube Painting: Up to 10 colours with customisable patterns.
- Aluminium Tube Laser Engraving: Engraved logos, text and patterns on stamped fittings and aluminium tubes.
- Self-Adhesive Logo Labels: Applied to the product in the position the buyer specifies.
- Multi-Colour Logo Printing: Paint screen printing in any colour, with several colours printed at once.
- Tag And Product Screen Printing: Screen printed tags and product markings, multi-colour capable.
Use guide
Getting The Best Out Of It
Step 1
Insert the 600 ml pack with the rod retracted and cut the pack closure.
Step 2
Refit the nose cap hand-tight rather than forcing the moulded thread.
Step 3
Support the gun over the silicone tube sleeve rather than at the nose.
Step 4
Use anti-drip at pauses and keep the rod and bearings free of cured sealant.
Comparison
How It Compares In Our Range
Compare within the PP family first, then against the aluminium equivalent.
| JS8623-A | Standard PP wall, no bearings, 150 KG at 630 g. Lighter and cheaper. |
|---|---|
| JS8622-B | Aluminium barrel, three bearings, 180 KG with 220 KG tolerance at 850 g. |
| JS8626 | Seven bearings on an aluminium barrel at 200 KG, if trigger effort matters more than impact. |
FAQ
JS8623-B Questions
How does this differ from the JS8623-A?
A reinforced thicker tube wall, a silicone sleeve on the tube, a plastic sleeve on the front handle, three bearings and a full aluminium handle. Push force rises from 150 KG to 180 KG at 835 g.
Does it have anti-drip?
Yes, a drip prevention function that minimises adhesive wastage and keeps the workspace clean.
What are the exact ratings?
180 KG push force, 200 KG maximum tolerance, 25:1 drive ratio, 835 g net weight. Stock colour is green.
Is the dispensing plate alloy?
Yes, a sturdy alloy dispensing plate for stable and precise application at this force level.
How is it packed?
One piece per inner box, 20 pieces per master carton at 60.8 x 54 x 35.5 cm. Minimum order 2,000 pieces customised.
Related products
Other Models In Sausage Guns
Industries
Trades That Use This Model
Glass And Curtain Wall
Sealant guns and vacuum lifters for crews who handle and seal glass all day
Construction Sealing And Waterproofing
Cartridge, sausage and powered guns for joint sealing and waterproofing trades
Window And Door Manufacturing
Glazing, perimeter foaming and gap filling for window and door plants and installers
Further reading
Guides That Cover This Model
How To Read Caulking Gun Force Ratings
Push force, maximum tolerance and drive ratio describe three different things. Confusing them is the most common reason a gun fails in the field.
Cartridge Or Sausage Which Sealant Gun To Stock
Sausage packs cut cost per litre and packaging waste; cartridges are simpler and universally stocked. The right answer depends on who your customer is.
How Many Bearings Does A Sausage Gun Need
Bearing count is the single clearest indicator of duty level on a sausage gun. Three, seven and nine are genuinely different tools.
Quote The JS8623-B
Send the quantity and your colour and packing requirements, and we will confirm the minimum and a production date.
