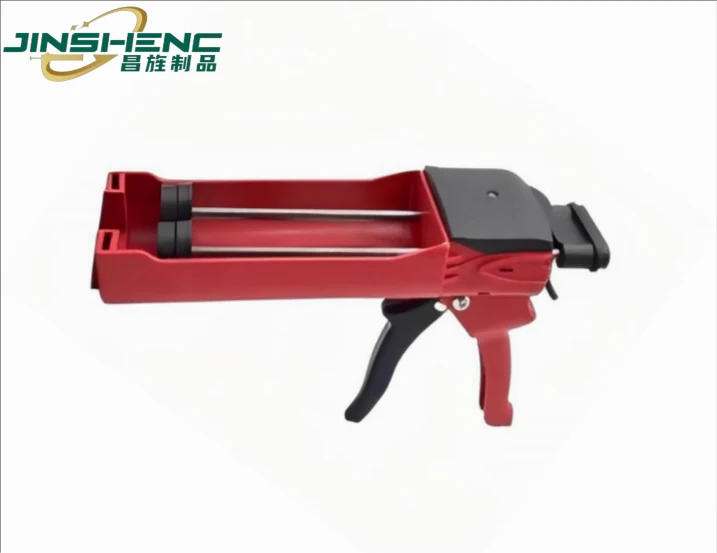

JS8615-2 1:1 Welding Steel-Type Dual-Component Tile Grout Adhesive Gun (With linkage labor-saving device)
A welded steel 1:1 dual-component grout gun with a linkage labour-saving device: 200 KG push force, 230 KG tolerance, and a 45:1 drive ratio, at 800 g.
Product Overview
A welded steel 1:1 dual-component grout gun with a linkage labour-saving device: 200 KG push force, 230 KG tolerance, and a 45:1 drive ratio, at 800 g. The high ratio plus the linkage is what keeps a full pack of epoxy workable through a static mixer by hand.
Key benefits
Why Buyers Choose This Model
45:1 With A Labour-Saving Linkage
A very high drive ratio combined with a linkage labour-saving device, which together are what make a 45:1 gun usable through a full pack rather than only the easy first third.
Welded Steel At 800 g
Welded steel construction at 800 g, lighter than the plastic-bodied JS8612-A while carrying a 230 KG tolerance.
1:1 Ratio Held Mechanically
Both rods driven from the one linkage, so the proportion does not drift as the cartridge empties.
12 Pieces Per Carton
Packed 12 per carton at 62 x 47 x 35 cm, which is worth knowing when planning a mixed container of grout guns.
Application scenarios
Where It Is Used
- 1:1 epoxy grout on large tiled areas
- Continuous professional grouting
- Work where trigger effort is the limiting factor
- Distributor ranges needing a welded steel 1:1
Who it is for
The Buyers This Model Suits
Professional Tiling Crews
Grouts continuously and needs the labour-saving linkage rather than raw force.
Contractors On Stiff Epoxy
Works with products where a 30:1 gun becomes hard going after the first third of the pack.
Distributors Needing Steel At Mid Price
Sits below the 420 KG JS8615-3 while keeping the welded steel construction.
Problems it solves
What It Fixes
Trigger Effort Through A Full Pack
45:1 plus the linkage device is the specific answer to the pull getting heavier as the pack empties.
Steel Guns Being Heavy
800 g of welded steel is lighter than most plastic grout guns of similar capability.
Ratio Drift Late In The Cartridge
The one-linkage drive holds the proportion to the end.
Specifications
Published Figures For This Model
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Net Weight | 800g |
|---|---|
| Packing | 12PCS/CTN |
| Color | red, or customized |
| Carton Size | 62*47*35 |
| Push Force | 200KG |
| Maximum Tolerance | 230 KG |
| Drive Ratio | 45:1 |
| Colour options | red, or customized |
| Packing | 12PCS/CTN |
| Minimum order | 2000pcs for a customised version |
| Customisation | Colour, packing method, carton appearance and logo |
Materials and manufacturing
How This Model Is Made
Parts for the JS8615-2 are produced in our own workshops in Jinli Town, Zhaoqing. This model is predominantly a metal product, made on our fifteen automatic punching machines, nine automatic lathes and three welding machines. Tooling is designed and cut in our own mould room, which is why a change to this model does not queue behind another factory's schedule.
Quality Control
- Every model is weighed against its declared net weight during production, so the carton weight on your packing list matches what arrives.
- Stamped parts are produced in house on 15 automatic punching machines and 9 automatic lathes, so dimensional consistency is controlled at source rather than inspected on arrival.
- Moulded parts come off 5 horizontal and 3 vertical injection moulding machines running up to 10,000 mould open-and-close cycles per day, with tooling maintained in our own mould room.
- The quality management system was certified to ISO 9001:2015 in August 2023, with a certificate valid to 31 July 2026.
- Cartons are counted against the packing list as they are loaded into the container at our own factory door.
Certifications
The quality management system was certified to ISO 9001:2015 in August 2023, under standard GB/T19001-2016, for the manufacture and sale of glass caulking guns and sealant guns. The certificate on file runs to 31 July 2026; ask us for the current renewal status before relying on it. A TUV Rheinland assessment was obtained in 2016.
Customisation Options
- Aluminium Tube Anodizing And Colouring: More than 10 colours available; the surface can be given a frosted texture.
- Aluminium Tube Painting: Up to 10 colours with customisable patterns.
- Aluminium Tube Laser Engraving: Engraved logos, text and patterns on stamped fittings and aluminium tubes.
- Self-Adhesive Logo Labels: Applied to the product in the position the buyer specifies.
- Multi-Colour Logo Printing: Paint screen printing in any colour, with several colours printed at once.
- Tag And Product Screen Printing: Screen printed tags and product markings, multi-colour capable.
Use guide
Getting The Best Out Of It
Step 1
Confirm the cartridge is 1:1 before loading.
Step 2
Fit the static mixing nozzle and discard the first short length of mixed product.
Step 3
Let the 45:1 ratio and the linkage do the work rather than gripping harder.
Step 4
Clean the plunger seat and nozzle mount before the epoxy cures.
Comparison
How It Compares In Our Range
The two welded steel 1:1 models are a matched pair.
| JS8615-3 | The heavy version: 420 KG push force, 500 KG tolerance, 43:1, 1000 g. |
|---|---|
| JS8612-A | Reinforced plastic 1:1 at 250 KG and 30:1, 1000 g. |
| JS8612-B | Light 1:1 at 100 KG and 50:1, 650 g, for occasional use. |
FAQ
JS8615-2 Questions
What is the linkage labour-saving device?
An additional linkage in the trigger mechanism that reduces the effort needed at the grip. Combined with a 45:1 drive ratio it is what keeps the pull light through a complete pack of epoxy.
What are the ratings?
200 KG push force, 230 KG maximum tolerance, 45:1 drive ratio, 800 g net weight. Stock colour is red.
How does this compare with the JS8615-3?
JS8615-3 is the heavy version at 420 KG push force and 500 KG tolerance, 43:1, 1000 g. Both are welded steel with the labour-saving linkage.
How is it packed?
12 pieces per carton at 62 x 47 x 35 cm.
What is the minimum order quantity?
2,000 pieces for a customised version.
Related products
Other Models In Two-Component Grout And Anchor Guns
Industries
Trades That Use This Model
Tile And Stone Installation
Epoxy grout guns, pointing guns and slab lifters for tiling and stonework
Structural Anchoring And Rebar Fixing
1:4 injection anchor adhesive guns for post-installed rebar and anchor bolts
Construction Sealing And Waterproofing
Cartridge, sausage and powered guns for joint sealing and waterproofing trades
Further reading
Guides That Cover This Model
Choosing A Two-Component Gun By Mix Ratio
The ratio is built into the gun's linkage, so a 1:1 gun cannot dispense a 1:4 product. Match the gun to the cartridge, every time.
