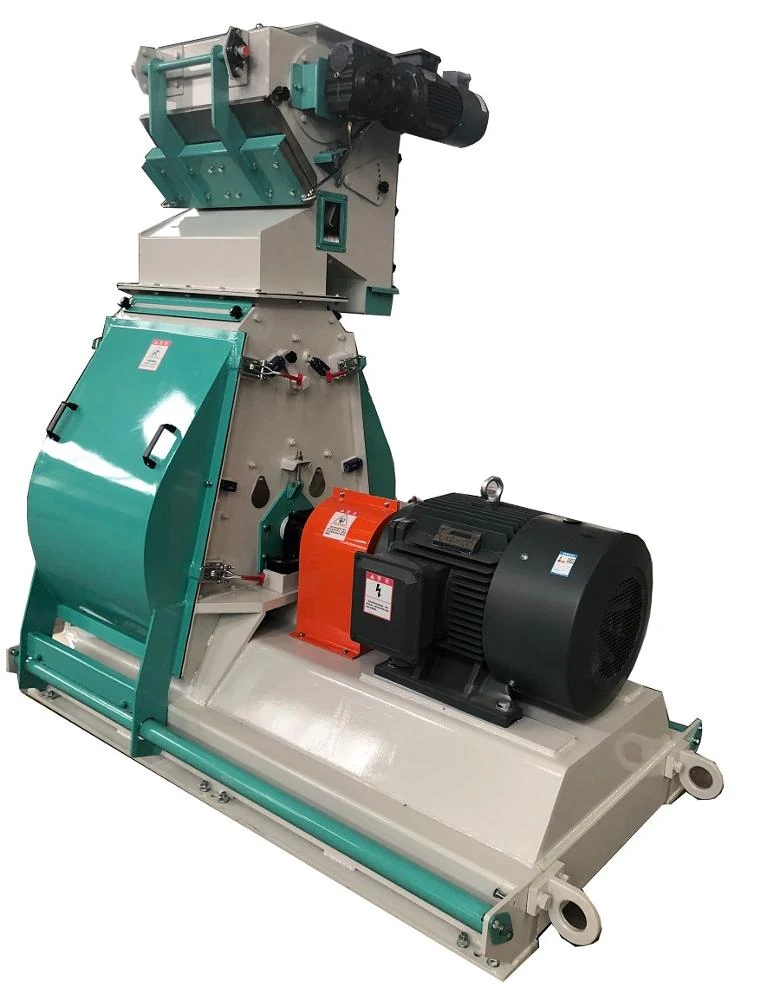

TISP Hammer Mill for Biomass
The hammer mill is the grinder in front of the pellet die.
What This Machine Does
The hammer mill is the grinder in front of the pellet die. It is applicable for material after chipping, with a maximum length and width of 30 mm and a maximum thickness of 10 mm, and it suits fibre material with high moisture and oiliness as well as coarse grinding duties.
Key Benefits
- Five frame sizes from 0.8 to 7.0 t/h to match the biomass stream
- Handles fibre material with high moisture and oiliness
- Even particle size so the pellet die sees a constant load
- Also used for coarse grinding outside pelleting
- Supplied as part of a complete biofuel pellet production line
Problems It Solves
- Oversized material choking the pellet die
- Uneven particle size wearing the die unevenly
- Wet, oily fibre that ordinary grinders cannot handle
- A grinder sized without reference to the pellet mill behind it
Who It Is For
- Rice mills pelleting their own husk
- Biomass fuel producers
- Feed plants pelleting agricultural residues
- Boiler operators making their own fuel
Application Scenarios
- Grinding rice husk ahead of pelleting
- Wood chip and sawdust preparation
- Straw and stalk grinding after chipping
- Coarse grinding duties in a processing plant
Technical Features
- Rotor and screen grinding for fibre material
- Capacity from 0.8 to 7.0 t/h across five models
- Main power from 45 kW to 200 kW
- Input material limited to 30 mm length, 30 mm width and 10 mm thickness
- Supplied within a total solution for biofuel pellet production
TISP Hammer Mill for Biomass Model Table
Figures below are taken from the TITAN model sheets. Where a figure depends on the crop or the contamination level it is stated that way rather than averaged.
| Model | Main power (kW) | Capacity (t/h) |
|---|---|---|
| TISP 66X45 | 45 / 55 | 0.8 to 2.0 |
| TISP 66X60 | 75 / 90 | 2.0 to 3.0 |
| TISP 66X80 | 90 / 110 | 3.0 to 4.0 |
| TISP 66X100 | 110 / 132 | 4.0 to 5.0 |
| TISP 66X120 | 160 / 200 | 5.0 to 7.0 |
How This Machine Is Built
Quality Control
- Rotor balance checked at working speed
- Screen and hammer clearance verified
- Run test before packing
Customisation Options
- Model selected from the hourly biomass stream
- Screen size chosen for the pellet die requirement
- Drive power specified for the destination supply
Use Guide
- Convert your milling capacity into an hourly husk stream before choosing a model
- Chip wood and stalk material to within the input size limits
- Select screen size with the pellet die specification in mind
- Check hammers and screens on a fixed maintenance interval
How It Compares With The Alternatives
| Grinding without a chipper | The hammer mill needs chipped material within 30 x 30 x 10 mm, so a chipper is required for wood and stalks. |
|---|---|
| Oversizing the mill | Matching the mill to the husk stream keeps it running continuously rather than cycling on and off. |
TISP Hammer Mill for Biomass Questions
What input size does it accept?
Chipped material with maximum length 30 mm, width 30 mm and thickness 10 mm.
What capacity range is available?
From 0.8 to 2.0 t/h on a TISP 66X45 up to 5.0 to 7.0 t/h on a TISP 66X120.
Does it handle wet material?
It is specified for fibre material with big moisture and oiliness.
Is it sold with the pellet mill?
TITAN offers a total solution for the biofuel pellet production line including consultation, design, planning, manufacture, installation and follow up upgrade.
Can it be used for coarse grinding only?
Yes, it is also applicable for coarse grinding duties.
