Precision Forging
Closed die forging on 300 T - 8000 T presses, rolled rings up to 9000 mm diameter and open die forging for large parts.
Parts Produced In This Process Family
Precision Die Forged Shafts
Die forged shafts from 0.2 kg to 100 kg
View specifications
Closed Die Forged Connectors
High volume forged connection parts
View specifications

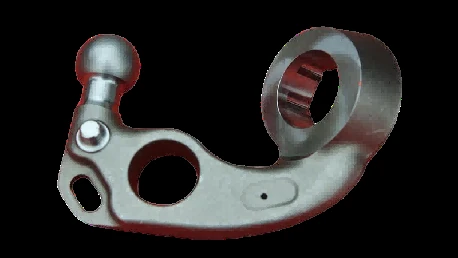

High Strength Connection and Lifting Components
Rated lifting and connection hardware
View specifications
Agricultural Machinery Forgings
Seasonal volume forgings for farm equipment
View specifications
Rolled Ring Forgings
Seamless rings to 9000 mm diameter
View specifications
Why This Route Exists
Forging forms a continuous metal flow line through the part, which raises strength, reliability and service life compared with a casting of the same shape. Eurona covers closed die forging, rolled ring forging and open die forging.
The scope serves high strength connectors, construction machinery parts, agricultural machinery parts, oil and gas equipment and wind power components, backed by CMM, 3D scanning, mechanical testing and NDT.
Published Specifications
These are the figures published for this process family. Values that depend on the specific part are confirmed during drawing review.
| Closed Die Forging | Equipment 300 T - 8000 T; product weight 0.2 kg - 100 kg |
|---|---|
| Rolled Ring Forging | Maximum diameter 9000 mm; ring, cone and cylinder shapes |
| Open Die Forging | No die cost, short development cycle, flexible size selection for large forgings |
| Carbon Steel | C22E / 20, C35E / 35, C45E / 45, C55E / 55 |
| Alloy Steel | 16MnCr5, 20MnCr5, 42CrMo4 / 42CrMo, 34CrNiMo6, 25CrMo4 / 25CrMo, 41Cr4 / 40Cr, 18CrNiMo7-6 |
| Stainless Steel | 1.4301 / 304, 1.4401 / 316, 1.4542 / 17-4PH, 1.4021 / 20Cr13, 1.4057 / 30Cr13 |
| Certificates | Production partners can support IATF 16949:2016 and ISO 9001:2015 |
Process And Quality Capability
Zeiss and Hexagon three coordinate measurement of critical dimensions and assembly positions.
Complex surfaces, contours and sample development stage dimensional verification.
Tensile, hardness, -60 °C impact, metallographic and chemical composition testing.
UT, MT, PT and RT non destructive testing.
Leak testing, roughness, inner diameter and roundness related checks.
What Usually Goes Wrong Without This Route
- A cast connector keeps cracking in service and the design needs forged grain flow instead.
- Large rings are bought abroad at long lead time because the local supplier cannot roll the diameter.
- Low temperature impact values are required but the forge has no -60 °C test capability.
Industries Served
This family is specified most often by the following industries. Each industry page lists the part types and the typical duty.
Background Reading
Casting or Forging How to Choose for a Load Bearing Part
The decision between a casting and a forging is usually made on shape complexity and load type rather than on price. This guide sets out the practical criteria.
Buying GuideWhat NDT and Quality Documents to Specify on a Casting Order
Most acceptance disputes come from an inspection scope that was never agreed. This guide covers what to specify and when to specify it.
Related Categories
Steel Castings and Forgings
Heavy load and high strength steel parts from 50 kg to 50 tonnes, covered by melting records, heat treatment, NDT and full quality documents.
CategoryHigh Alloy Parts
Stainless and heat resistant components for food machinery, incineration grate bars, screw pump rotors and biomass furnaces.
CategoryPrecision Casting
Silica sol lost wax and quick-drying investment casting from 0.01 kg to 300 kg, holding CT5 - CT9 and Ra 3.2 - Ra 6.3.
CategoryAluminum Alloy Casting
Sand, gravity, high pressure and low pressure aluminium casting with machining, welding and surface finishing in one route.
CategoryCast Iron
Grey iron, ductile iron and ADI castings from 0.2 kg to 2000 kg in green sand, resin sand and shell moulding.
Precision Forging — Frequently Asked Questions
What weight range does precision forging cover?
Equipment 300 T - 8000 T; product weight 0.2 kg - 100 kg
Which materials are available for precision forging?
C22E / 20, C35E / 35, C45E / 45, C55E / 55
Can machining and surface treatment be included?
Yes. CNC machining, dimensional control, surface treatment and necessary pre-assembly are coordinated in the same supply chain, so parts can be delivered finished to the drawing.
What is needed to get a quotation?
Drawings, material, quantity, quality standard and target delivery date. Those five items allow a process route and a suitable production base to be proposed.
