Stenter Chains

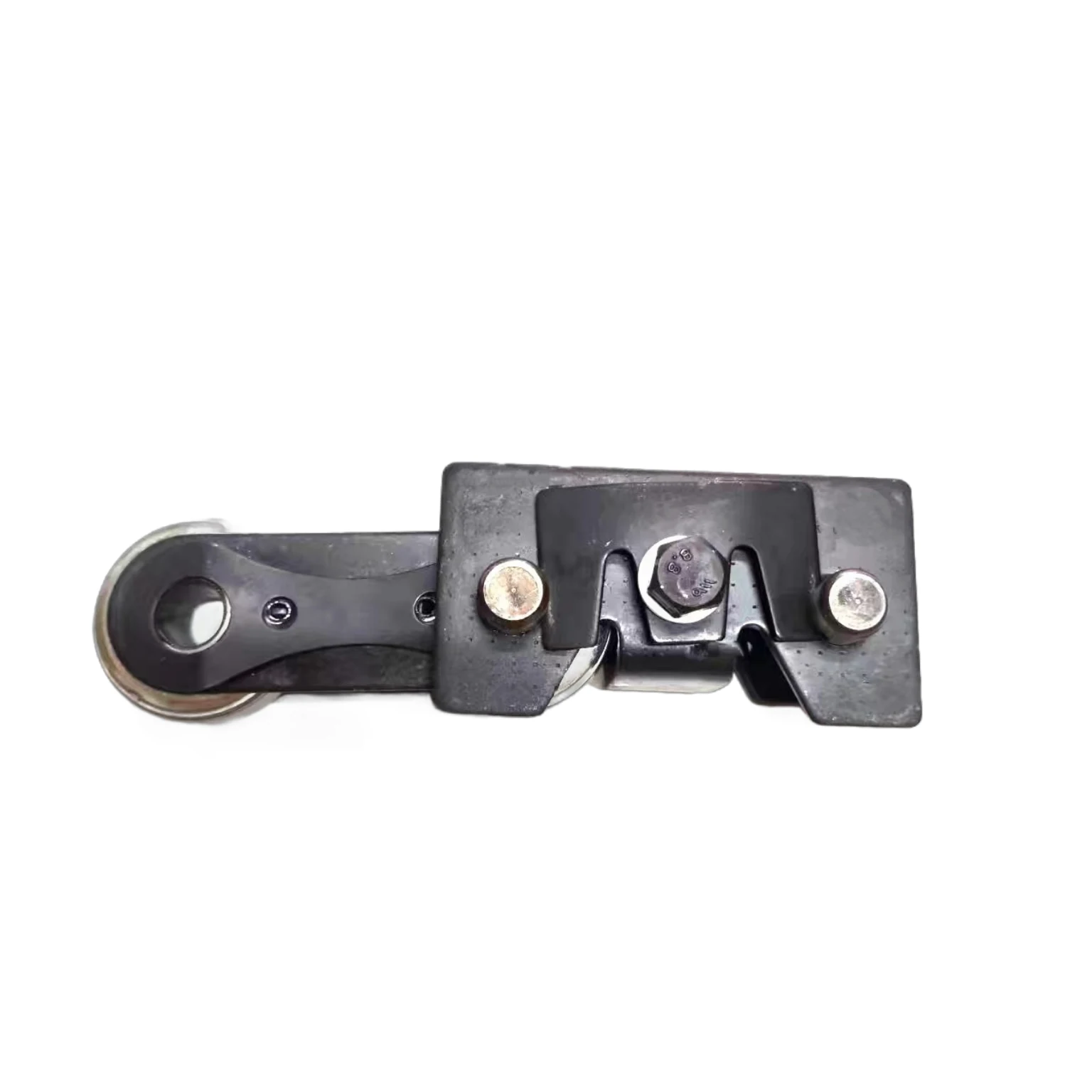

Monforts Stenter Chain Type 1
Complete Monforts chain for oil-free guide frames, built with PEEK bush and dust cover.
Product Overview
A complete chain for Monforts stenter machines with oil-free guide, supplied with high quality bearings, PEEK bushes and PEEK dust covers. It consists of connectors, U-shaped connectors, pins, PEEK bushes, PEEK dust cover screws, wear sleeves and the other components that make up a chain run.
The PEEK bush is the part that matters most for service life. It is the wear-resistant lining between the pin and the chain, replacing the original copper mesh lining, and because PEEK is self-lubricating it wears more slowly and lasts longer.
Key Benefits
- PEEK bush replaces the original copper mesh lining and lasts longer
- PEEK dust cover keeps abrasive fibre and finish residue out of the bearing
- High quality bearings with a long service life at competitive cost
- Built for Monforts oil-free guide frames
Who It Is For
- Monforts users replacing a worn chain rather than servicing it
- Mills wanting longer intervals between chain overhauls
- Engineers who have traced rough running to failed bushes
Problems It Solves
- Copper mesh linings wearing out and letting the chain run loose
- Fibre and finish residue entering the bearing and cutting chain life
- Chain elongation pulling the pin bed out of register
Application Scenarios
- Monforts chain reaching the end of its service life
- Upgrading from a copper mesh lined chain to a PEEK bushed one
- Frames where fibre and finish dust are shortening bearing life
Technical Features
- PEEK bush as the wear-resistant lining between pin and chain
- PEEK dust cover and dust cover screws
- High quality bearings
- Black finish, approximate weight 0.65 kg per unit
Specifications
| Machine | Monforts stenter, oil-free guide |
|---|---|
| Bush | PEEK, replacing copper mesh lining |
| Dust cover | PEEK with PEEK screws |
| Colour | black |
| Weight | approx 0.65 kg |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Bearing free-running check on every assembled link
- Bush bore and pin diameter checked as a matched pair
- Chain pitch measured over a run of links, not link by link
Customisation Options
- Chain length built to your machine
- Standard or PEEK bush specification at your choice
- Supplied with matching Monforts pin plates, holders and clips
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against the Type 2 lightweight chain, this is the conventional build: proven, lower cost, and the right answer where running speed is not the constraint. The Type 2 build uses lighter and stronger materials to make the chain run more smoothly on the track, which matters on faster lines.
Use Guide
Check guide rail condition before fitting a new chain, because a worn rail will chew it
Fit in sections and keep the pitch consistent across joints
Clean the guide and chain at least once a year
Use a high temperature grease such as DuPont, Miller or Kluber
Gauge chain elongation at each annual service so replacement can be planned
FAQ
Questions About Monforts Stenter Chain Type 1
What is a PEEK bush and why does it matter?
It is the wear-resistant lining between the pin and the chain, replacing the original copper mesh lining. Because PEEK is self-lubricating it is more wear resistant and has a longer service life.
Does this fit oil-free guide machines?
Yes, it is built for Monforts stenters with oil-free guide.
What grease should I use?
A high temperature grease. DuPont, Miller and Kluber are the brands our customers use. Clean the guide and chain at least once a year when you re-grease.
Can I buy the small parts separately?
Yes. Connectors, U-shaped connectors, pins, PEEK bushes, dust cover screws and wear sleeves are all available individually.
How is chain length specified?
By your machine. Tell us the frame and the run you are replacing and we build to it.
Lead time?
Standard items within 7 days; full chain lengths are confirmed at quotation.
