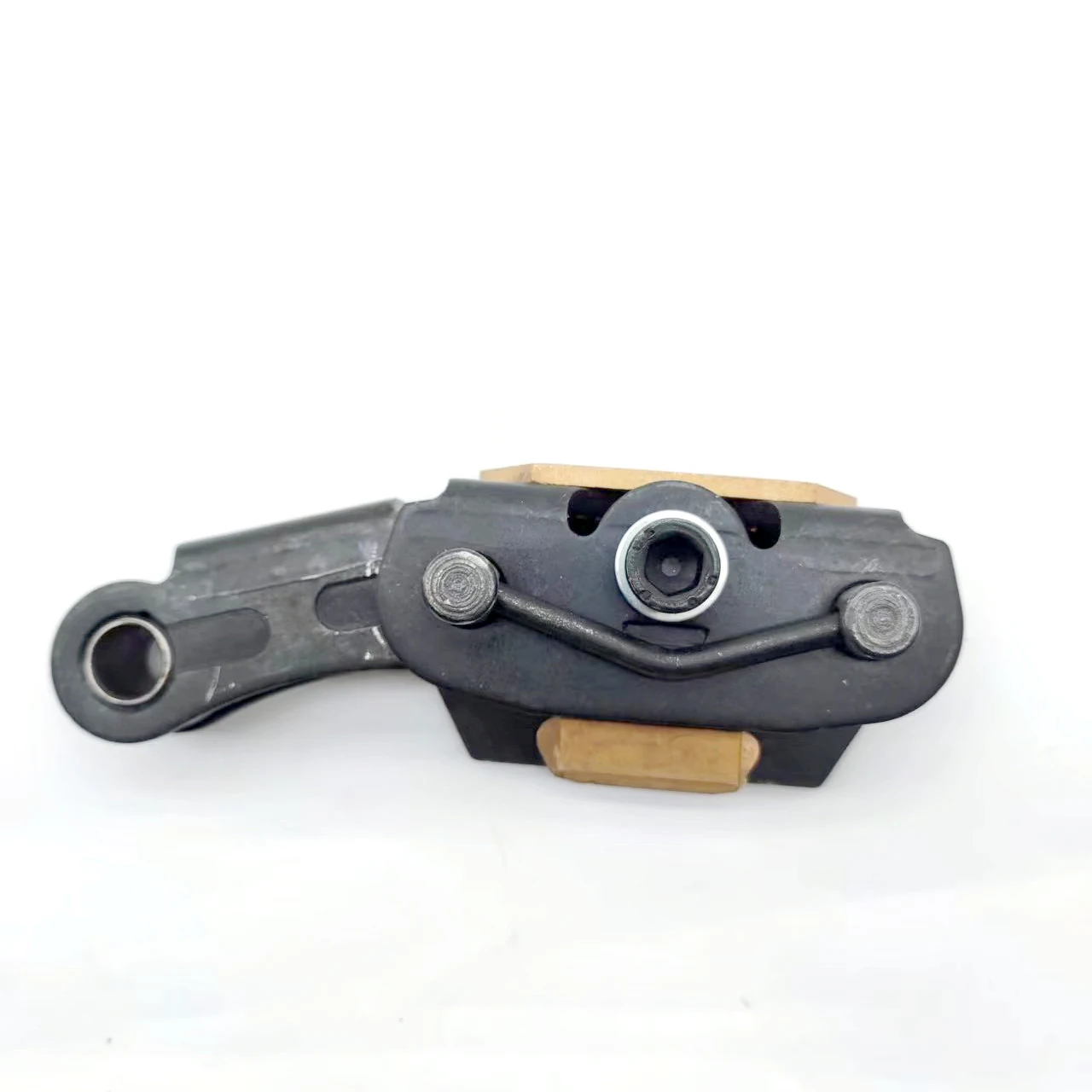

Artos Stenter Chain Complete Assembly
Full Artos chain assembly supplied as a run, with all small parts available separately.
Product Overview
This is the complete Artos chain assembly supplied as a run rather than as components: connectors, U-shaped connectors, pins, PEEK bushes, PEEK dust cover screws, wear sleeves and copper sliders, assembled on high quality bearings for the oil-free guide frame.
Mills order the complete assembly when the chain has reached the end of its life rather than when individual parts have worn. We continue to sell every small part separately, so the same chain can be serviced rather than replaced next time.
Key Benefits
- Complete chain run rather than a box of components to assemble
- Assembled and pitch-checked in the factory
- Every small part remains available separately for later servicing
- High quality bearings with long service life
Who It Is For
- Artos users planning a full chain replacement
- Maintenance teams with limited assembly labour during shutdowns
- Engineers who want the chain pitch verified before it arrives
Problems It Solves
- Chain elongation that wear part replacement cannot fix
- Assembly labour during a short shutdown window
- Mixed-age links around one chain run giving uneven pitch
Application Scenarios
- Artos chain at the end of its service life
- Chain elongation pulling the pin bed out of register
- Major overhaul during an annual shutdown
Technical Features

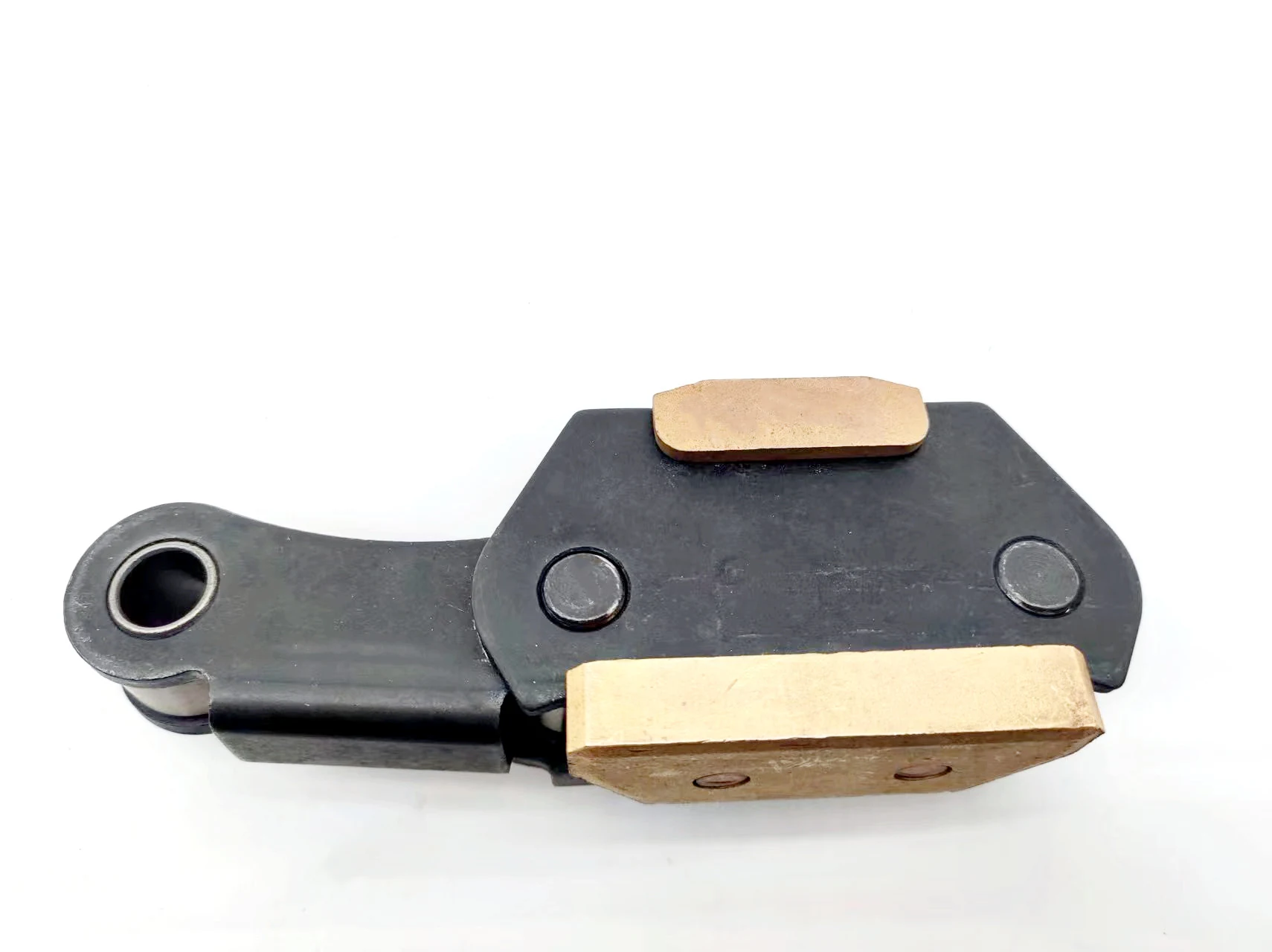

- Complete assembly with copper sliders and PEEK bushes
- Connectors, U-shaped connectors, pins, dust cover screws and wear sleeves
- High quality bearings
- Black finish, approximate weight 0.65 kg per unit
Specifications
| Machine | Artos stenter, oil-free guide |
|---|---|
| Supplied as | complete assembled chain run |
| Slider | copper, PEEK available |
| Bush | PEEK |
| Colour | black |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control

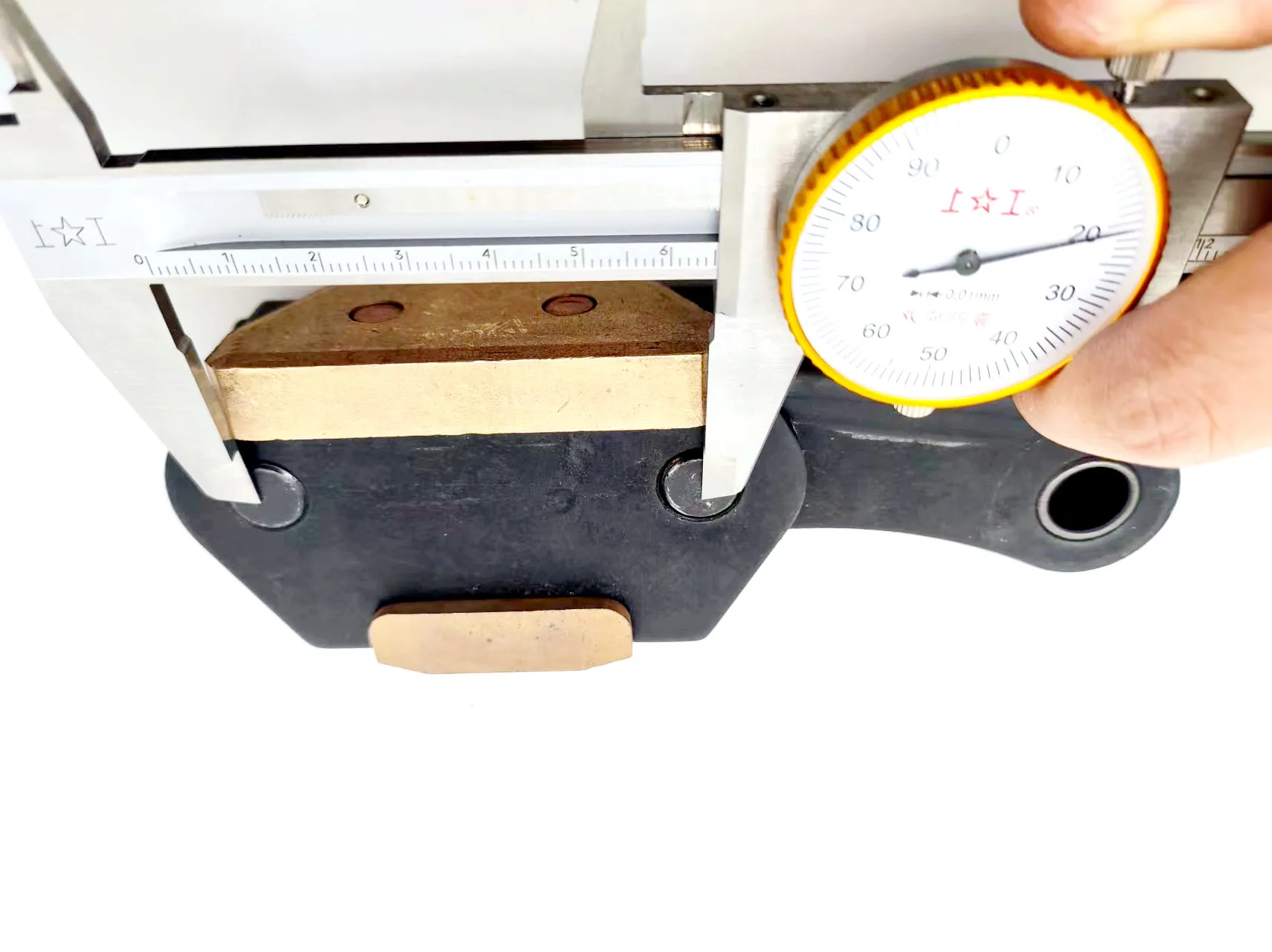

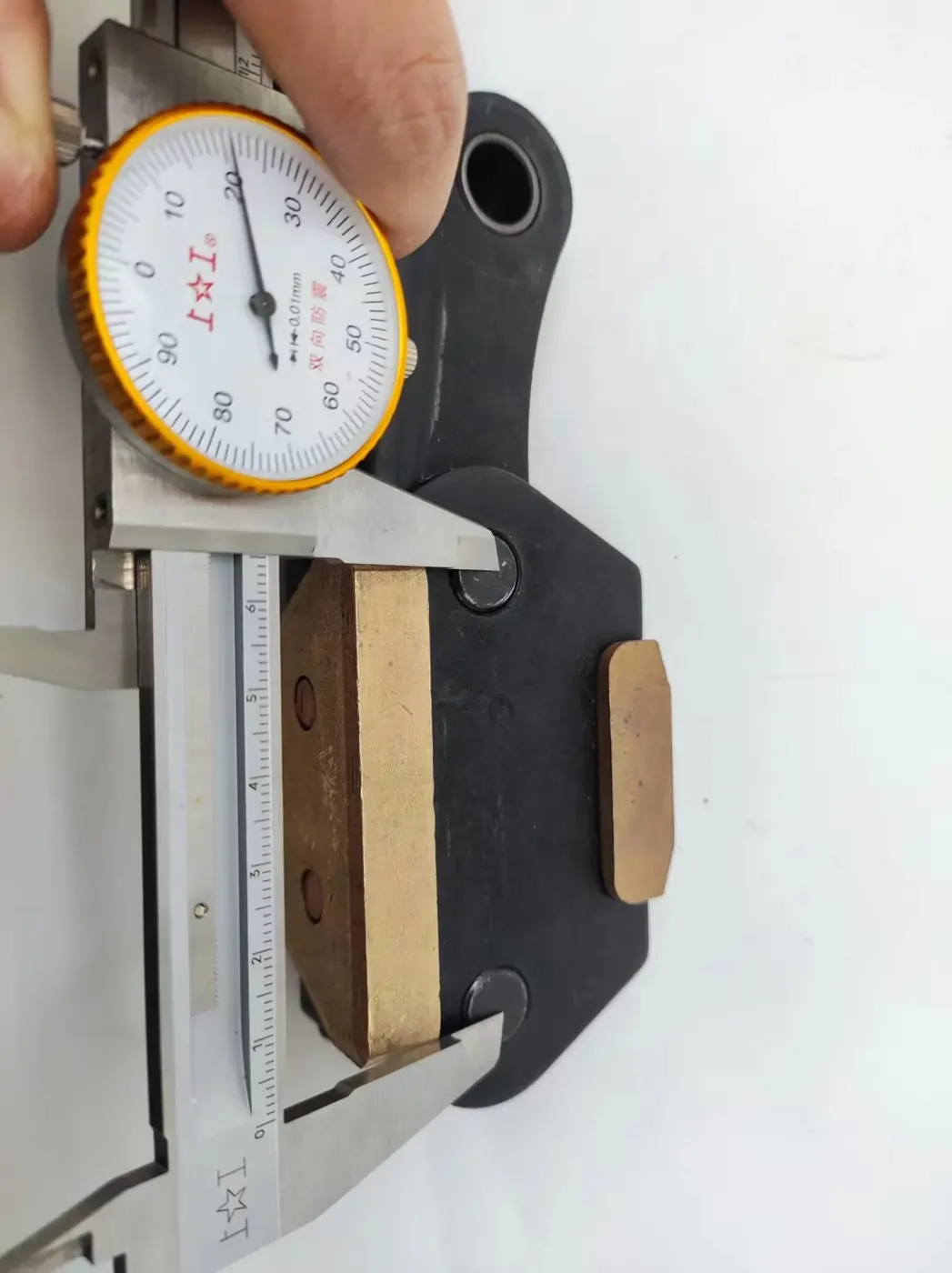

- Chain pitch measured over a run of links before despatch
- Every link free-run checked
- Section articulated over a test radius to confirm free movement
Customisation Options
- Chain length built to your machine
- Copper or PEEK sliders at your choice
- Supplied with Artos pin plates and holders as a package
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against buying components, the assembled run costs more but removes the labour and guarantees uniform pitch from the start. Against replacing only wear parts, it is the right answer once elongation has passed the point where the pin bed can be held in register.
Use Guide
Gauge existing chain elongation before committing to a full replacement
Inspect and if necessary dress the guide rail while the chain is out
Fit the run without mixing in old links
Grease with a high temperature product before the first run
Clean the guide and chain at least once a year thereafter
FAQ
Questions About Artos Stenter Chain Complete Assembly
How do I know it is time to replace the chain?
Gauge the pitch. Once elongation is enough that the pin bed cannot be held in register, wear part replacement will not recover it.
Can I still buy the small parts afterwards?
Yes. We sell connectors, U-shaped connectors, pins, PEEK bushes, dust cover screws and wear sleeves individually, so the new chain can be serviced rather than replaced.
Copper or PEEK sliders?

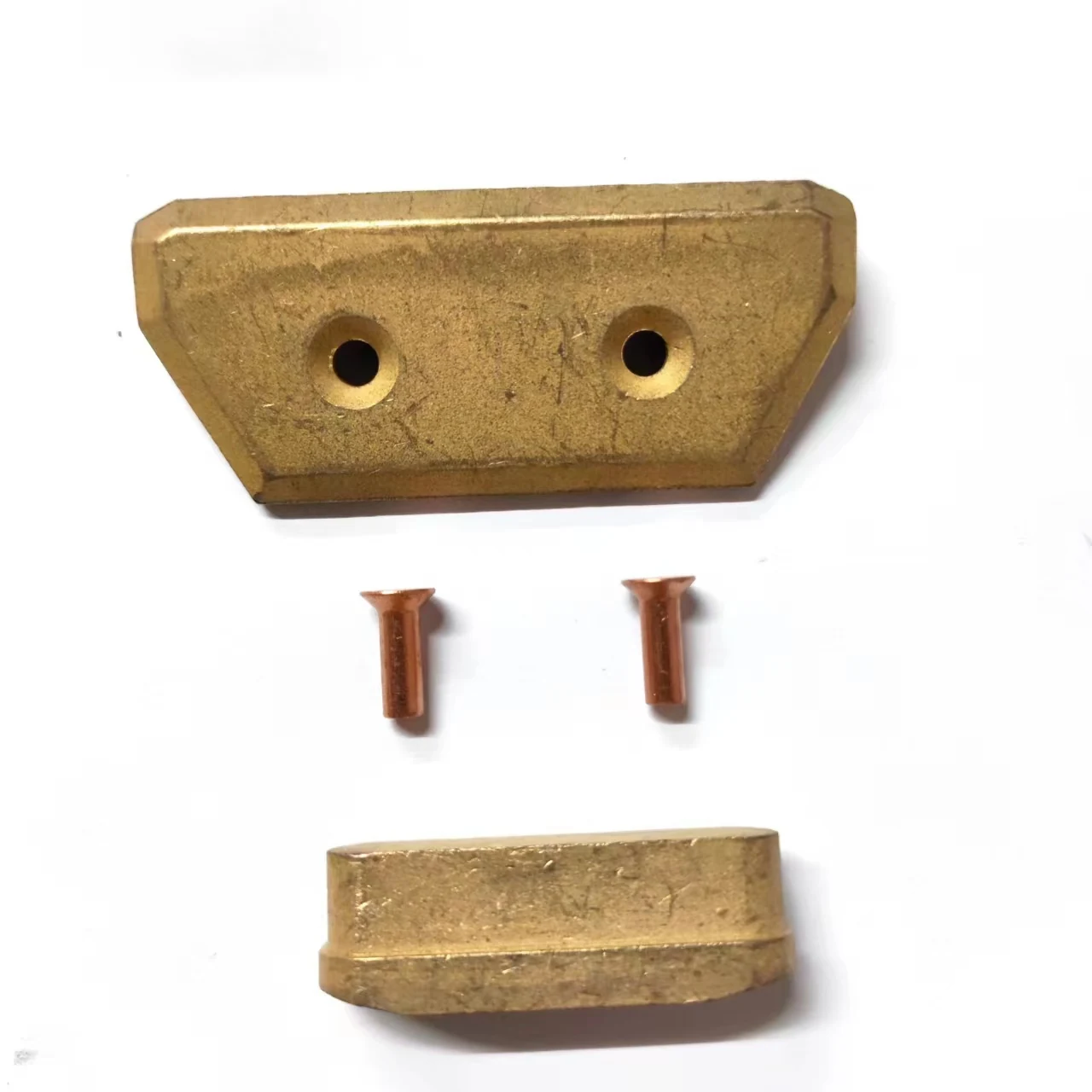

Copper is more forgiving of a rail with surface defects; PEEK is self-lubricating and lasts longer on a good rail. Check the rail first.
How is chain length specified?
By your machine run. Tell us the length you are replacing and we build to it.
What maintenance does it need?
Clean the guide and chain at least once a year and add a high temperature grease such as DuPont, Miller or Kluber.
Lead time?
Confirmed at quotation, because chains are built to length.
