Stenter Pin Plates and Pin Holders
Copper pin plates with carbon or stainless steel pins, plus holders and loose pins, for Monforts, Bruckner, Artos, LK, IL SUNG, Krantz and PI film stenters.
All 19 Parts in This Category
A pin plate is the part that actually holds the fabric. Pins about 5 mm long sit in two rows at 3 to 4 pins per cm along the base plate, thicker at the root so the cloth never touches the hot plate directly. The press wheel pushes the selvedge onto the pins, the plate sits in its holder and the holder rides on the chain. Get that assembly right and the fabric holds width at up to 100 m/min. Get it wrong and the edge lets go in the chamber.
E+L KF 2020 Pneumatic Web Guider and Selvedge Holder
View Part
E+L ELSPREADER LPA 03 Pneumatic Selvedge Uncurler
View Part
EHWHA Pin Plate Holder
View Part
Bruckner Stenter Chain Type 4 With Pin Plate Mounting
View Part
Bruckner Pin Plate and Chain Assembly
View Part

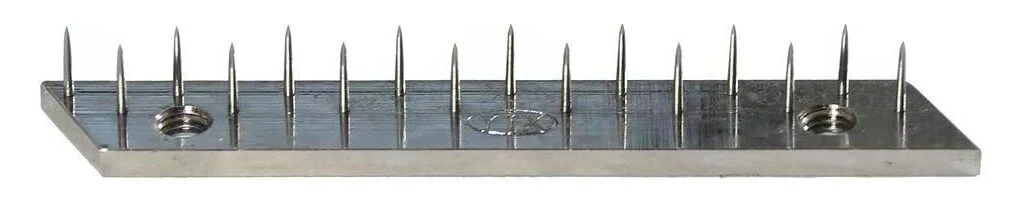

Stenter Pin Plate 642 Small Size 4 x 130 x 12 mm
View Part
Artos Stenter Pin Plate 4 x 130 x 12 mm
View Part
Stenter Pin Plate for Krantz 4 x 12 x 77 mm
View Part
Stenter Pin Plate 707 and 708
View Part
IL SUNG Stenter Pin Plate
View Part
Stainless Steel Pin Plate for Polyimide Film Stenters
View Part
Replacement Stenter Pins for Pin Plates
View Part
Stenter Pin Plate for Monforts Pin Rails
View Part
Bruckner Stenter Pin Plate Type 1
View Part
LK Stenter Pin Plate
View Part
Bruckner Stenter Pin Plate Type 2
View Part
Artos Stenter Pin Plate Second Pattern
View Part
Monforts Stenter Pin Plate Type 1
View Part
Monforts Stenter Pin Plate Type 2
View PartProblems This Category Solves
- Worn or bent pins letting the selvedge slip, so the fabric loses width and the edge frays
- Pins sitting too low, pressing the fabric onto the hot base plate and scorching the selvedge
- Plates bought in small lots from different batches giving uneven pin height along the rail
- Plates ordered on the machine brand alone with hole centres that do not line up
Who Buys These Parts
- Finishing mills running pin stenters of any brand
- Maintenance teams rebuilding a pin rail after a chain overhaul
- Workshops that re-pin their own plates
- Dealers holding pin plate stock for local mills
What You Get With This Category
Copper plate body conducts chamber heat away from the pin roots
Carbon steel or stainless steel pins depending on your finishing chemistry
Matched full-rail sets from one batch so pin height is identical along the chain
Plates matched to your hole centres from a sample or a drawing
Application Scenarios
- Heat setting polyester and polyamide knits
- Drying and width recovery after dyeing
- Polyimide film tenter lines running far hotter than a textile range
- Continuous finishing at up to 100 m/min
Related Solutions
Guides About These Parts
What Is a Stenter Machine and How Does It Work
A stenter heat sets and dries fabric by holding it at a controlled width while hot air passes through it. This guide walks through the process and names the parts that do the work.
Read Guide
Key Parts of a Stenter Machine
Entry section, clip or pin chains, rail system, heating chambers, blowers, weft straightener, cooling and exit. What each part does and which ones you will be buying again.
Read Guide
Pin Plate or Clip Which Stenter Rail Suits Your Fabric
Pins hold more tension and run faster but mark the selvedge. Clips leave the edge clean but need a real selvedge to grip. Here is how to decide, and what to do when you need both.
Read GuideStenter Pin Plates and Pin Holders Questions
How long are stenter pins?
About 5 mm proud of the base plate, in two rows at 3 to 4 pins per cm. The pins are thicker near the root so the fabric never contacts the hot base plate.
Will pin plates mark my fabric?
Pin stenters leave pinholes in the selvedge. Most mills accept that because the selvedge is trimmed. If the selvedge stays in the finished goods, use a clip rail.
How do I order the right plate?
Measure hole to hole and the plate length on the plate you are removing, and send us a photo with a ruler across the fixing holes.
Can you re-pin my existing plates?
Send us the plates and a pin sample and we will quote the work. We also sell loose pins for workshops that re-pin in house.
Quote Stenter Pin Plates and Pin Holders
Send a photo of the part you are removing with a ruler across the mounting, or post us one sample. We confirm the match before you pay.
