Chain Customisation for New Fabric Types
Change the chain and the machine can work for other types of fabric, without buying another stenter.
What This Solution Covers
A stenter is set up around the fabric it was bought for. When the order book moves, the machine often cannot follow. Customising the chain is the cheapest way to change that: by replacing the chain, the machine can work for other types of fabric. That covers moving between pin and clip holding, changing slider material for a different line speed, and changing bush specification for a different chamber temperature.
Every Stage From Enquiry To Service
Nothing here is a black box. If a stage does not apply to your machine we say so and take it out of the quotation.
Define the new work
Tell us the fabric, the width, the line speed and the chamber temperature you want to run.
Review the machine
Send a sample chain link and photos of the rail, plates or clips currently fitted.
Choose the holding method
Pins for higher tension and faster running; clips for a flat unmarked edge on thicker wovens; a double use clip if you need both.
Choose the wear surfaces
Copper sliders for high load, PEEK for lighter running at speed. PEEK bush with dust cover where the mill runs dusty.
Build
Chain made to the specification, cut to rail length with joining links counted in.
Fit and prove
Replace both rails together, turn by hand for a full pass, then run a trial length before committing production.
What You Receive
Chain built to the new fabric specification
Matching plates, clips or double use clips
Slider and bush material chosen for speed and temperature
Cut to rail length with joining links
Parts Used In This Solution
E+L KF 2020 Pneumatic Web Guider and Selvedge Holder
View Part
E+L ELSPREADER LPA 03 Pneumatic Selvedge Uncurler
View Part

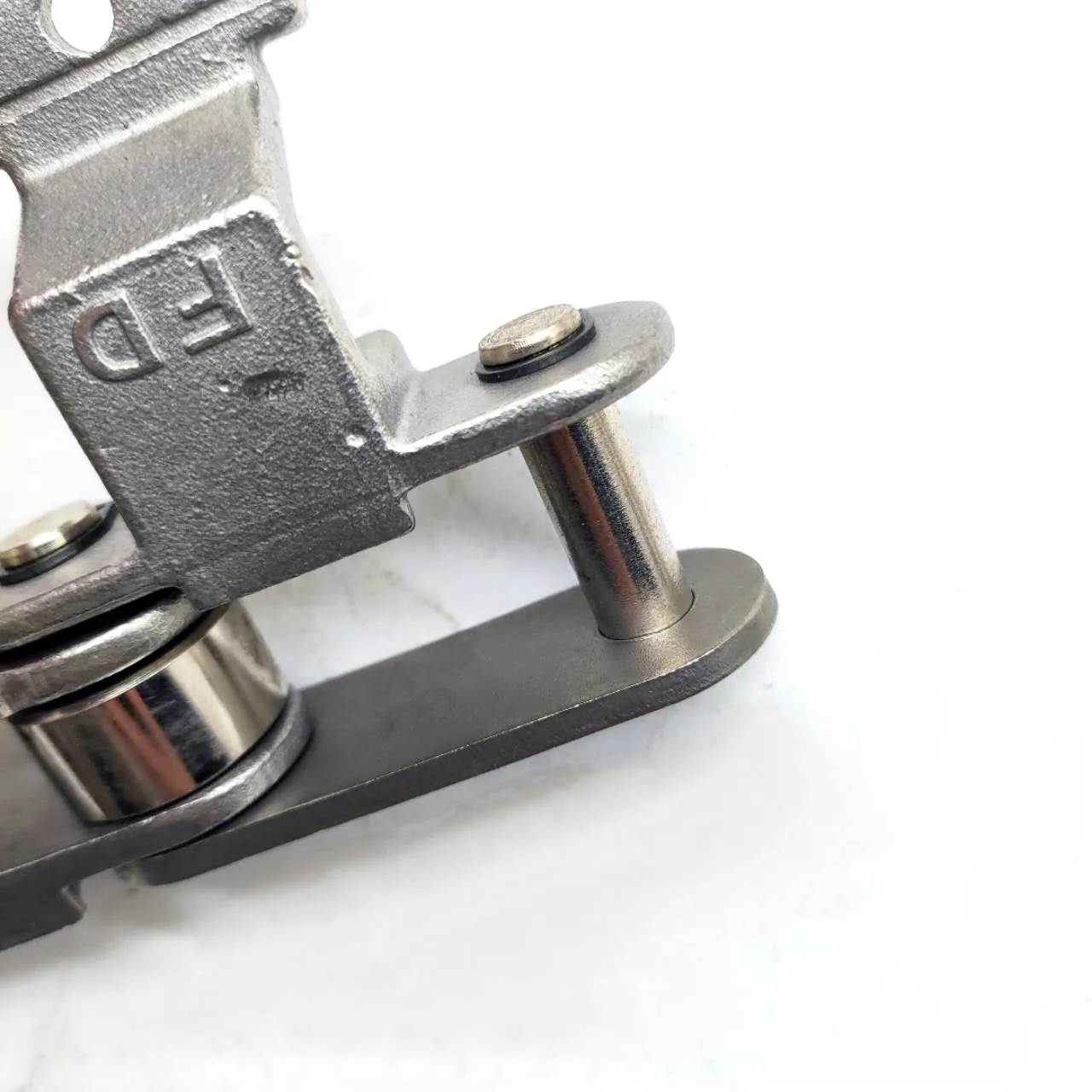

Chain for Ferraro Compact Machines
View Part
Chain for Lafer Compact Machines
View Part
LK Pin Plate Holder for Stenter Chains
View Part
Bruckner Stenter Chain Type 4 With Pin Plate Mounting
View Part
Bruckner Stenter Chain Type 3
View Part
Bruckner Stenter Chain Type 2
View PartCategories Involved
Stenter Chains and Chain Parts
Complete stenter chains and every part inside them, for Monforts, Bruckner, Artos and LK frames and for Ferraro and Lafer compact machines.
Open Category
Stenter Clips
Clips for Monforts, Bruckner, Artos and Stentex clip stenters, plus a clip and pin double use clip that lets one rail run both ways.
Open Category
Stenter Pin Plates and Pin Holders
Copper pin plates with carbon or stainless steel pins, plus holders and loose pins, for Monforts, Bruckner, Artos, LK, IL SUNG, Krantz and PI film stenters.
Open Category
Chain Customisation for New Fabric Types Questions
Can changing the chain really let me run different fabric?
Yes, within limits. By replacing the chain the machine can work for other types of fabric. Tell us the fabric and the speed you want and we will tell you honestly whether the chain is the constraint.
Can one machine run both pins and clips?
With a clip and pin double use clip, yes. We make one for Monforts frames.
How do I choose between copper and PEEK sliders?
Copper carries higher load, PEEK runs lighter and quieter. Heavy fabric at high tension favours copper; lighter goods at speed favour PEEK.
Do you quote this as a project or as parts?
As a package. Chain, plates or clips and the wear parts are specified together so they suit the new work.
Chain Customisation for New Fabric Types
Send us photos of the machine and the parts you are removing. We will tell you what actually needs replacing before we quote anything.
