G43 and G70 Hooks
Weld On Grab Hook Grade 70 Forged Steel Chain Hooks
A forged steel weld-on grab hook designed for attachment to buckets, trailers, or equipment using arc welding. It provides a secure, permanent chain connection point without requiring threaded fasteners or complex fittings. Available in sizes from 5/16" to 5/8" with working load limits from 4700 lbs to 15800 lbs, it is built for use with Grade 70 or lower chain. Not rated for overhead lifting or direct load suspension.
- Size
- From 5/16" to 5/8" Ultimate Load is 4 times Working Load Limit
- Material
- Alloy Steel Processing: Forged
- Finish
- Self-colored
- Packing
- Cartons + Pallets
- Catalogue Family
- G43 and G70 Hooks
- Certificates
- EN 10204 3.1 material test certificate on request
CAD files are supplied on request via WhatsApp or email rather than published for open download.
Key Benefits
What Weld on Grab Hook Gives You
- Permanent attachment via welding eliminates loose bolts or pins that can fail under vibration
- No need for drilling or machining the host structure, saving setup time and cost
- Matches chain size directly to avoid mismatched connections and premature failure
- Self-colored finish resists corrosion in outdoor and industrial environments
- High strength forged alloy steel body supports repeated towing, pulling, and dragging
- Clear working load limit stamped on the hook for traceability and safe use
- Compact design fits in tight spaces on trailers, loaders, and utility vehicles
Application Scenarios
Where Weld on Grab Hook Is Used
- Welding a chain attachment point onto a front-end loader bucket for dragging or hauling materials
- Securing a trailer hitch or cargo tie-down anchor on a tractor trailer frame
- Creating a fixed chain connection on a dump truck bed for load securing during transport
- Mounting a chain anchor on a utility vehicle for recovery or winching operations
- Adding a quick chain point to a custom-built industrial cart or trailer frame
- Using on farm equipment where repeated pulling and dragging are required
Who It Is For
Buyers This Product Is Built For
- Tractor and loader manufacturers building custom attachments or buckets
- Trailer and transport equipment builders needing permanent chain points
- Industrial equipment fabricators integrating chain systems into machinery
- Fleet operators retrofitting trailers or utility vehicles with secure tie-down points
- Contractors building custom material handling carts or transport frames
Problems It Solves
Problems This Product Removes
- Eliminates the need to drill holes and install bolts on equipment for chain attachment
- Prevents loose or missing fasteners that can lead to chain detachment during use
- Avoids mismatched hook and chain sizes that cause premature wear or failure
- Reduces setup time compared to bolted or threaded attachment systems
- Provides a permanent anchor point where repeated loading and unloading occur
- Solves the issue of temporary or unreliable attachment points on mobile equipment
Technical Features
Technical Features
- Drop forged alloy steel construction for high impact resistance and durability
- Weld-on design with no moving parts or fasteners required
- Working load limit stamped on the body for field traceability
- Dimensions A, B, and C matched to chain diameter for proper fit
- Minimum 4:1 design factor with minimum breaking strength four times the WLL
- Self-colored finish for corrosion resistance in outdoor and harsh environments
- Not rated for overhead lifting or suspended loads
Specifications
Weld on Grab Hook Specifications
Values published in the Kailipu catalogue for this item. Anything not listed is available on request.
| Capacity Range | 4700 lbs to 15800 lbs working load limit |
|---|---|
| Material | Alloy steel drop forged and heat-treated |
| Grade | Grade 70 or lower chain compatible |
| Design Factor | 4:1 minimum breaking load to safe working load |
| Surface Finish | Self-colored |
| 5/16” Dimensions | A 11.5 B 64.0 C 49.6 mm weight 0.21 kg |
| 3/8” Dimensions | A 13.0 B 76.0 C 60.0 mm weight 0.40 kg |
| 1/2” Dimensions | A 17.5 B 99.1 C 78.1 mm weight 0.79 kg |
| 5/8” Dimensions | A 20.6 B 127.0 C 103.9 mm weight 1.50 kg |
Full size table on request. The catalogue publishes a full dimension and capacity table for this item. Ask on WhatsApp or by email and we will send it as a PDF.
Materials
Materials And Finishes
- Alloy steel body drop forged and heat-treated for strength and impact resistance
- Self-colored finish applied after forging to resist rust and surface degradation
- No additional coating or plating to avoid interference with welding integrity
Manufacturing Process
How This Product Is Made
1Forging of the hook blank from alloy steel billet
2Heat treatment to achieve required hardness and tensile strength
3Machining of the hook profile and attachment dimensions
4Surface finish application (self-colored)
5Stamping of working load limit and marking on the body
6Proof load testing and dimensional inspection before packing
Quality Control
Quality Control On Every Batch
- Proof load test on production batches before release
- Dimensional tolerance check against published size table
- Breaking strength validation to confirm 4:1 design factor
- Material Test Certificate to EN 10204 3.1 issued with the order on request
- Third-party inspection accepted at the China warehouse before shipment
Customisation
Customisation Options
- Custom tonnage stamping on the hook body
- Private label and OEM marking available
- Custom surface finish on request (not available for welding integrity)
- Custom sizes and dimensions built to a supplied drawing
- Packing configuration adjusted for carton count and pallet pattern
Compare
How It Compares With The Alternatives
An honest read on where this pattern wins and where another one would serve you better.
| Alternative | Honest Trade Off |
|---|---|
| Bolt-on hook with pin and nut | Weld-on hook has no loose parts and is more secure under vibration but cannot be removed without cutting |
| Screw pin hook | No pin to back out under load or vibration, but cannot be reused or replaced after welding |
| Eye hook with threaded stud | Weld-on hook is simpler to install and more robust, but requires permanent attachment |
| Chain link with welded end | Weld-on hook provides a larger, more visible attachment point and better load distribution |
Use Guide
How To Use And Inspect Weld on Grab Hook
- Ensure the hook size matches the chain diameter before welding
- Do not exceed the stamped working load limit under any condition
- Weld only to clean, flat, and structurally sound surfaces
- Avoid welding near heat-sensitive components or seals
- Inspect the weld joint visually and by touch after installation
- Do not use for overhead lifting or suspended loads
Related Products
Often Ordered With This Item

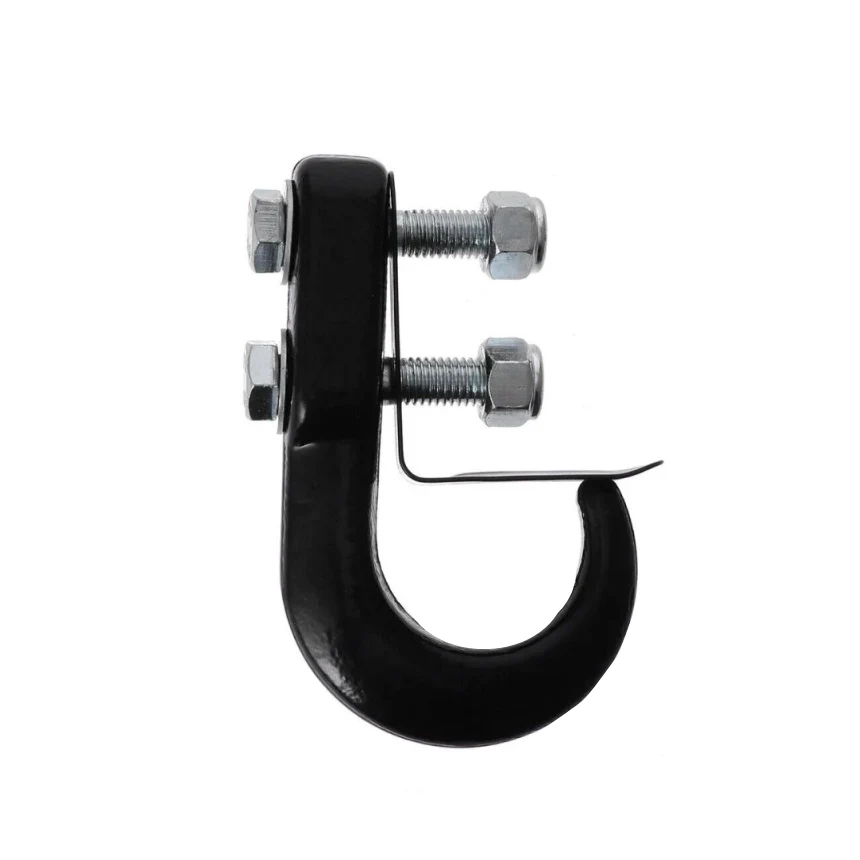

Bolt-On Tow Hook with Safety Latch

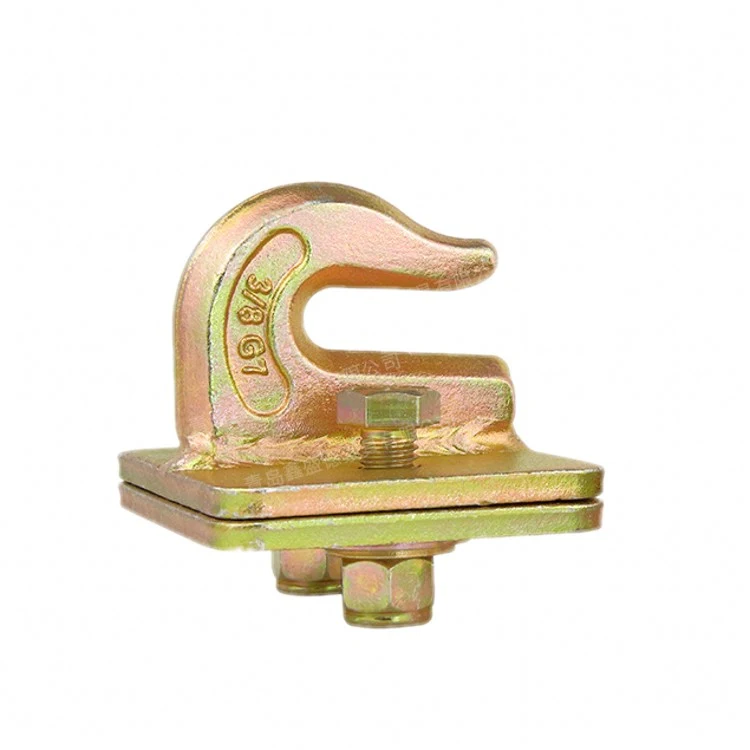

Grade 70 Bolt-On Grab Hook with Backer Plate

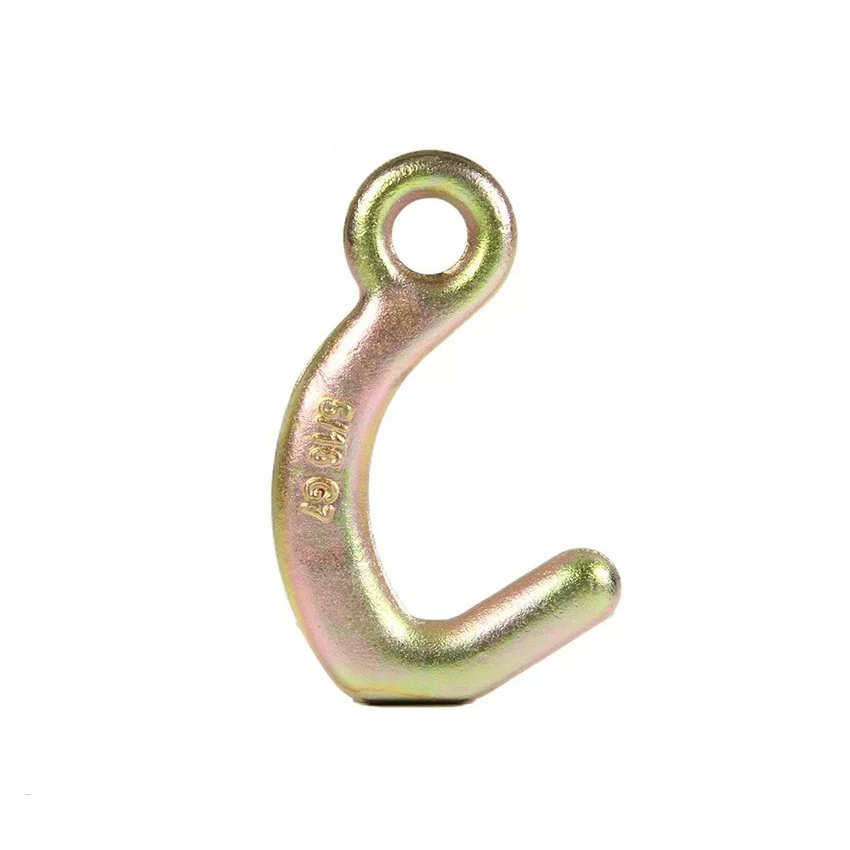

5/16 G70 Mini J Hook | Compact Frame J Hook

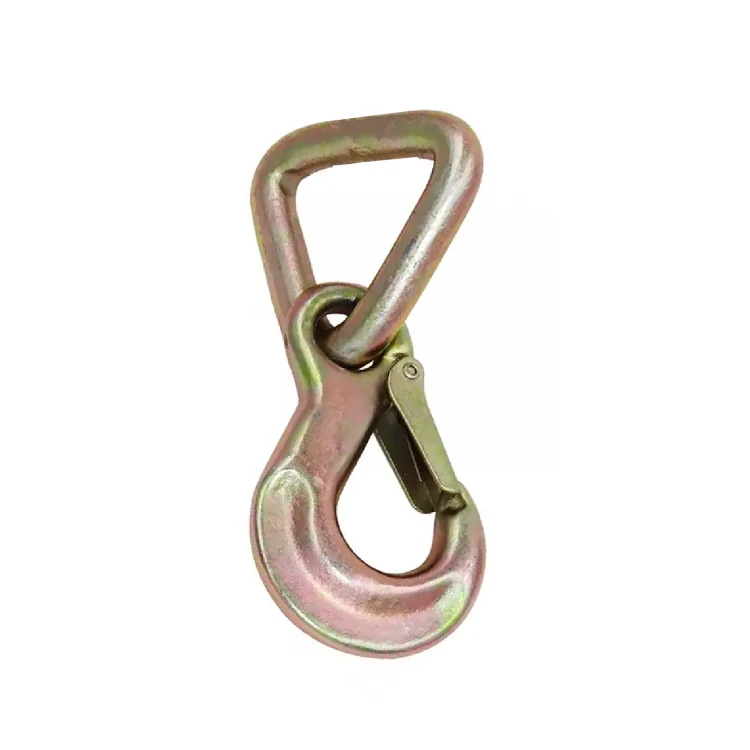

Triangle Snap Hook, Triangle Ring Safety Hook For Lashing Strap

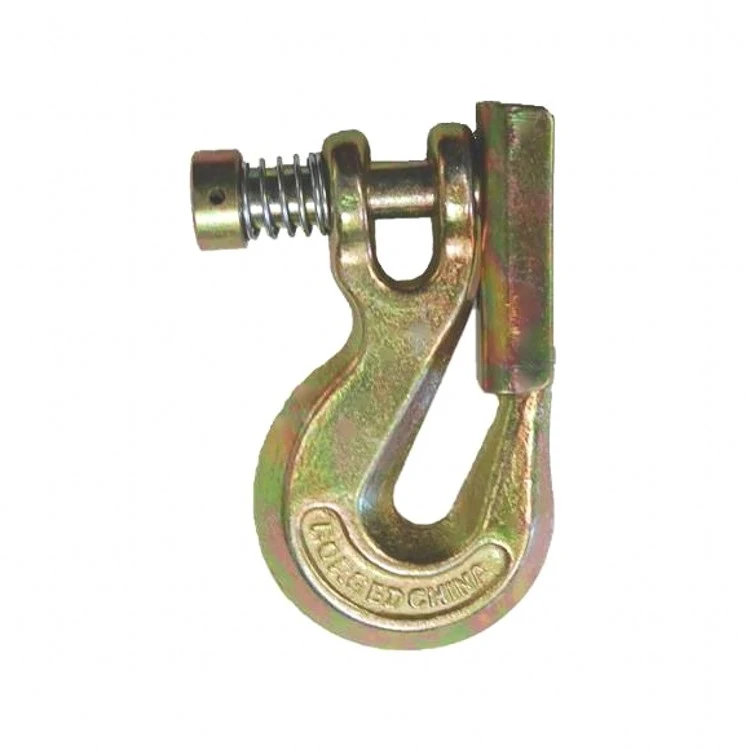

Clevis Grab Hook with Safety Latch A330N Grade 70

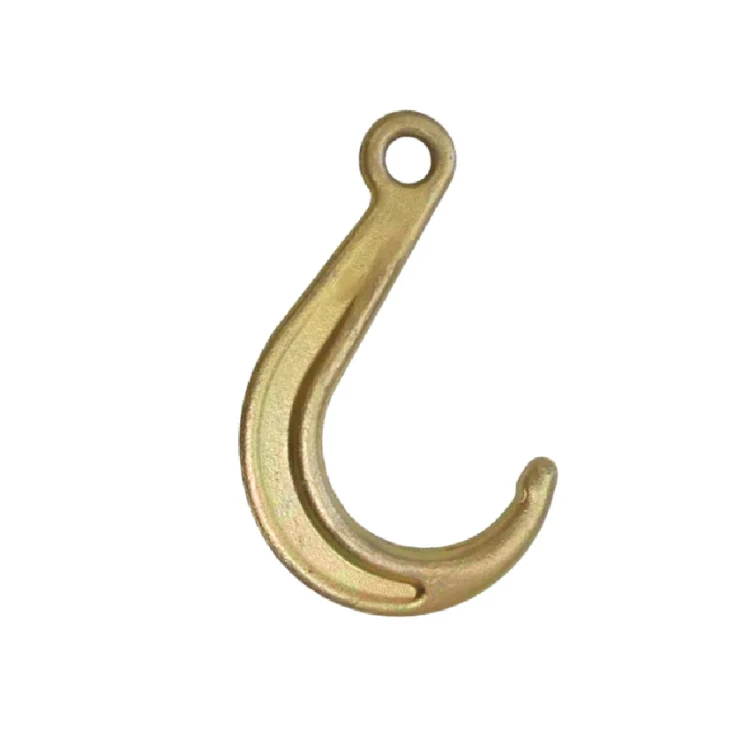

Eye J Hook 8" Tow J Hook Short Type, G70 WLL 4700LBS
Eye J Hook 15" Towing Long Shank Hook,Grade 70 Forged Steel WLL 4700LBS

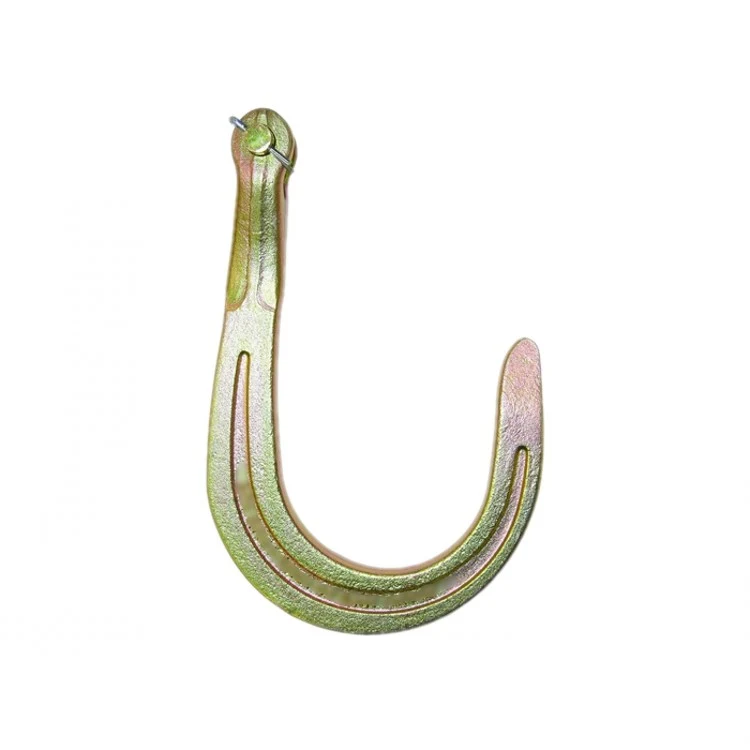

8 Inch Clevis Short J Tow Hook Grade 70 Forged Steel WLL 5400LBS
Browse The Category
Industries Using This Product
Sourcing Support For This Product
Guides Worth Reading Before You Order
Answers
Weld on Grab Hook FAQ
Can this hook be used for overhead lifting?
No. It is designed only for welding to equipment and not for overhead lifting or suspended loads.
What chain grade is compatible with this hook?
It is designed for use with Grade 70 chain or lower. Higher grades may exceed the hook’s strength rating.
Is the working load limit stamped on the hook?
Yes. The safe working load is stamped on the body for traceability and field use.
Can I weld this hook to any steel surface?
Yes, but only to clean, flat, and structurally sound steel. Avoid welding to thin or heat-sensitive materials.
What is the design factor for this hook?
A standard 4:1 design factor, so the minimum breaking strength is four times the stated working load limit.
Can you provide a Material Test Certificate?
Yes. A Material Test Certificate to EN 10204 3.1 is supplied with the order on request.
How are these hooks packed for export?
Cartons on pallets as standard. We can adjust the carton count and pallet pattern to match your warehouse or retail pack requirements.
