Tie Down Hardware

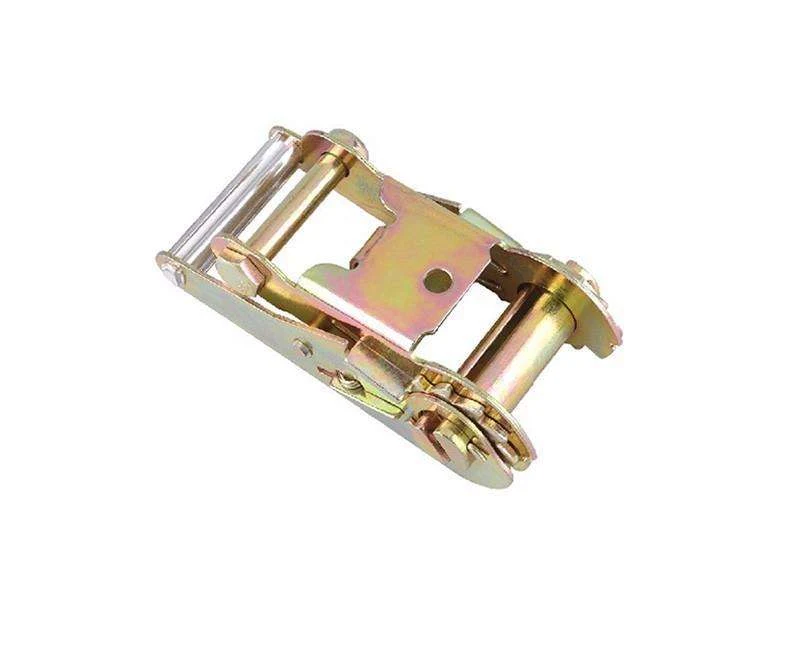

Ratchet buckle
A ratchet buckle with a steel frame and integrated ratcheting mechanism, designed to secure loads on trailers, trucks, and cargo containers. Available in working load limits from 0.85T to 10T, with options for plastic, aluminum, or steel handles, swivel hooks, and ergonomic or long handles. Sizes range from 25mm to 100mm in length, with zinc-plated or black zinc-coated finishes. All units are stamped with the working load limit and traceability marking.
- Catalogue Family
- Tie Down Hardware
- Certificates
- EN 10204 3.1 material test certificate on request
CAD files are supplied on request via WhatsApp or email rather than published for open download.
Key Benefits
What Ratchet Buckle Gives You
- Self-locking ratchet mechanism maintains tension without manual re-tightening during transport
- Swivel hook option allows alignment with load anchor points to reduce side loading
- Ergonomic and long handles improve leverage for tightening in tight spaces
- Aluminum and plastic handle variants reduce weight while maintaining strength
- Zinc-plated or black zinc-coated finish resists corrosion in outdoor and marine environments
- Compact design fits in tight spaces on trailers and cargo decks
- Stainless steel ratchet teeth and internal components resist wear under repeated use
Application Scenarios
Where Ratchet Buckle Is Used
- Securing heavy machinery and industrial equipment on flatbed trailers during long-haul transport
- Tightening cargo straps on shipping containers where vibration and movement are constant
- Mounting and tensioning load bars on truck beds with limited access to the front end
- Securing steel coils and pipe bundles on rail flatcars and marine cargo decks
- Tensioning tie-downs in construction site transport where quick setup and reliability are critical
- Using in offshore or marine logistics where corrosion resistance and durability are required
Who It Is For
Buyers This Product Is Built For
- Trucking and freight operators specifying durable tie-down hardware for commercial fleets
- Logistics companies managing containerized cargo and intermodal transport
- Manufacturers shipping heavy equipment and industrial components
- Marine and offshore contractors securing cargo on vessels and offshore platforms
- Rigging suppliers offering a complete tie-down solution across multiple load classes
- Fleet maintenance teams replacing worn or damaged ratchet buckles with consistent specs
Problems It Solves
Problems This Product Removes
- Manual strap tensioning that loosens during transit due to vibration and shock
- Inconsistent tension across multiple tie-downs when using hand-tightened buckles
- Lack of swivel hook or handle options that limit alignment with anchor points
- Ratchet mechanisms that seize or fail under repeated use due to poor material choice
- Corrosion damage on buckles exposed to saltwater, rain, or humid environments
- Buying different ratchet buckles from multiple suppliers for different load capacities
Technical Features
Technical Features
- Steel frame with integrated ratchet mechanism for high tensile strength
- Self-locking ratchet teeth prevent back-off under dynamic load
- Swivel hook available on select models for improved alignment
- Handle options include plastic aluminum and steel for weight and durability trade-offs
- Ergonomic and long handles increase leverage for tighter tensioning
- Working load limit and traceability marking stamped on the frame
- Zinc-plated or black zinc-coated finish for corrosion resistance
- Standard 4:1 design factor unless otherwise stated on the product
Specifications
Ratchet Buckle Specifications
Values published in the Kailipu catalogue for this item. Anything not listed is available on request.
| Capacity Range | 0.85T to 10T safe working load |
|---|---|
| Length Range | 25mm to 100mm |
| Material | Steel frame with heat-treated ratchet components |
| Pin Type | Swivel hook or fixed pin depending on model |
| Handle Type | Plastic aluminum or steel handle |
| Surface Finish | Zinc plated or black zinc coated |
Materials
Materials And Finishes
- Steel frame with heat-treated ratchet teeth for wear resistance
- Stainless steel internal components for ratchet teeth and pivot points
- Plastic handle for lightweight and low-cost models
- Aluminum handle for reduced weight and improved grip
- Steel handle for maximum durability in high-use applications
- Zinc plating or black zinc coating over the steel frame for corrosion protection
Manufacturing Process
How This Product Is Made
1Steel blanking and forming of the frame and ratchet mechanism
2Heat treatment of the ratchet teeth and frame for strength and wear resistance
3Machining of the ratchet teeth and pivot holes
4Assembly of the ratchet mechanism and handle
5Installation of swivel hook or fixed pin as per model
6Surface finishing by zinc plating or black zinc coating
7Stamping of working load limit and traceability marking
8Proof load testing and packing
Quality Control
Quality Control On Every Batch
- Proof load test on production batches before release
- Dimensional tolerance check against published size table
- Breaking strength validation to confirm 4:1 design factor
- Ratchet mechanism function test for smooth engagement and no back-off
- Material Test Certificate to EN 10204 3.1 issued with the order
- Third-party inspection accepted at warehouse before shipment
Customisation
Customisation Options
- Custom tonnage stamping on the frame
- Private label and OEM marking for brand-specific packaging
- Custom handle material including plastic aluminum or steel
- Custom surface finish in zinc plating or black zinc coating
- Custom length and configuration built to a supplied drawing
- Carton and pallet packing configured for your warehouse or retail pack
Compare
How It Compares With The Alternatives
An honest read on where this pattern wins and where another one would serve you better.
| Alternative | Honest Trade Off |
|---|---|
| Manual buckle | The ratchet maintains tension automatically; manual buckles require re-tightening and are prone to loosening under vibration |
| Cam buckle | Ratchet offers higher holding force and better resistance to creep under load; cam buckles are faster to apply but less secure |
| Snap hook | Ratchet provides controlled tension and locking; snap hooks are quick but offer no locking mechanism and can open under shock |
| Standard ratchet with fixed handle | Ergonomic and long handles improve leverage in tight spaces but add bulk and weight |
Use Guide
How To Use And Inspect Ratchet Buckle
- Match the stamped working load limit to the calculated load, not the strap rating
- Ensure the ratchet engages fully with each pull; do not skip teeth
- Use swivel hooks to align with anchor points and avoid side loading
- Check that the handle moves freely and the ratchet does not bind before use
- Inspect for deformation or wear on the ratchet teeth and frame after heavy use
- Retire the buckle if the marking is illegible or the ratchet fails to lock
Related Products
Often Ordered With This Item
Browse The Category
Industries Using This Product
Sourcing Support For This Product
Answers
Ratchet Buckle FAQ
What is the working load limit for each model?
The working load limit is stamped on the frame. Models range from 0.85T to 10T, with dimensions and weights listed in the specs table.
Can I get a Material Test Certificate?
Yes. A Material Test Certificate to EN 10204 3.1 is supplied with every order on request.
Are swivel hooks available?
Yes. Swivel hook options are available on select models, including 5Tx50mm and 10Tx100mm.
What finishes are available?
Standard finishes are zinc plated or black zinc coated. Custom finishes are available upon request.
Can I have my own brand on the buckle?
Yes. Custom tonnage stamping, private label marking, and OEM packaging are standard options.
How are the buckles packed for export?
Cartons on pallets as standard. We can configure carton count and pallet pattern to match your warehouse or retail pack. Free storage in Qingdao warehouse for up to two months.
What is the design factor?
A standard 4:1 design factor applies unless otherwise stated. The minimum breaking load is four times the safe working load.
