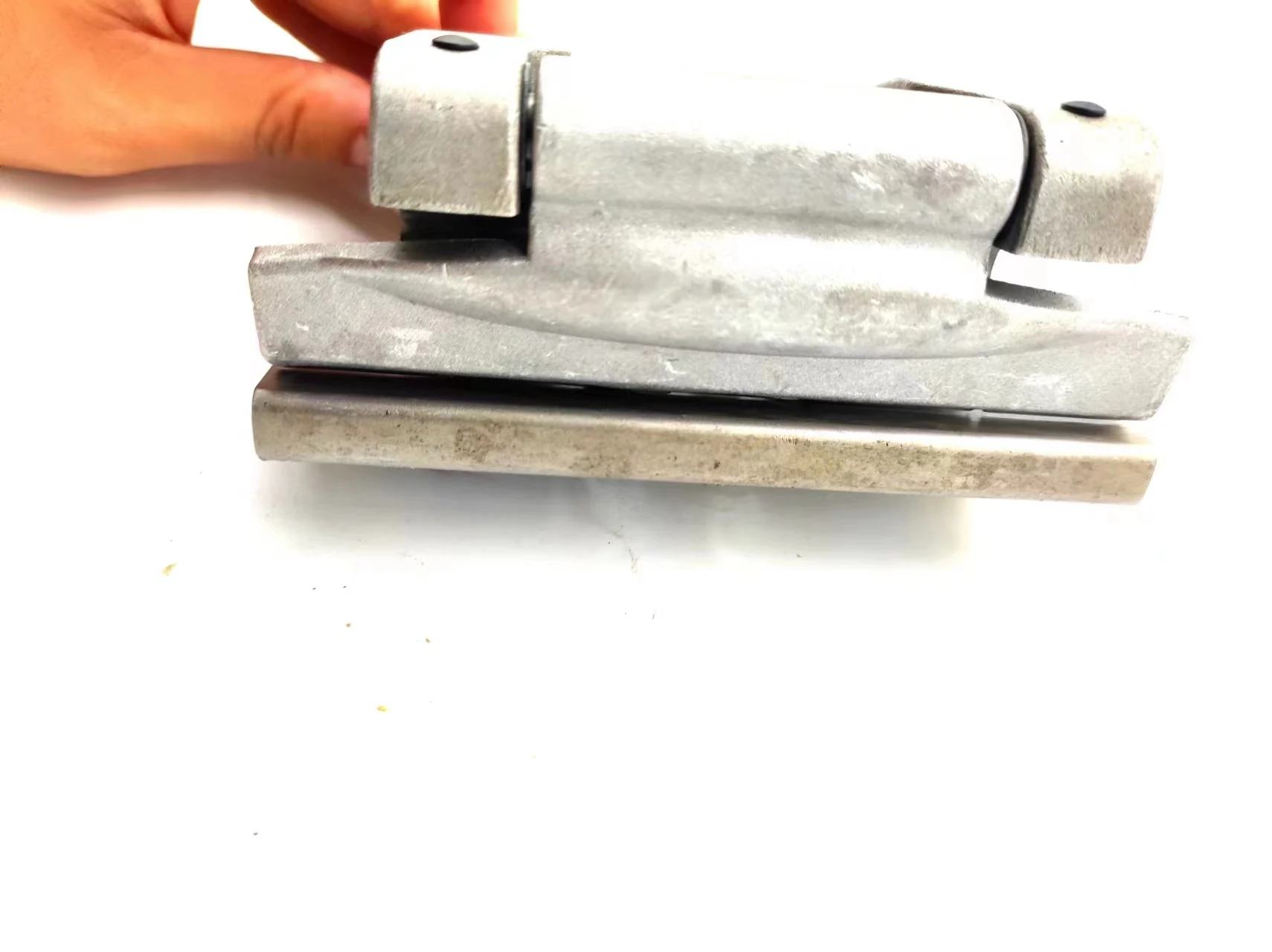

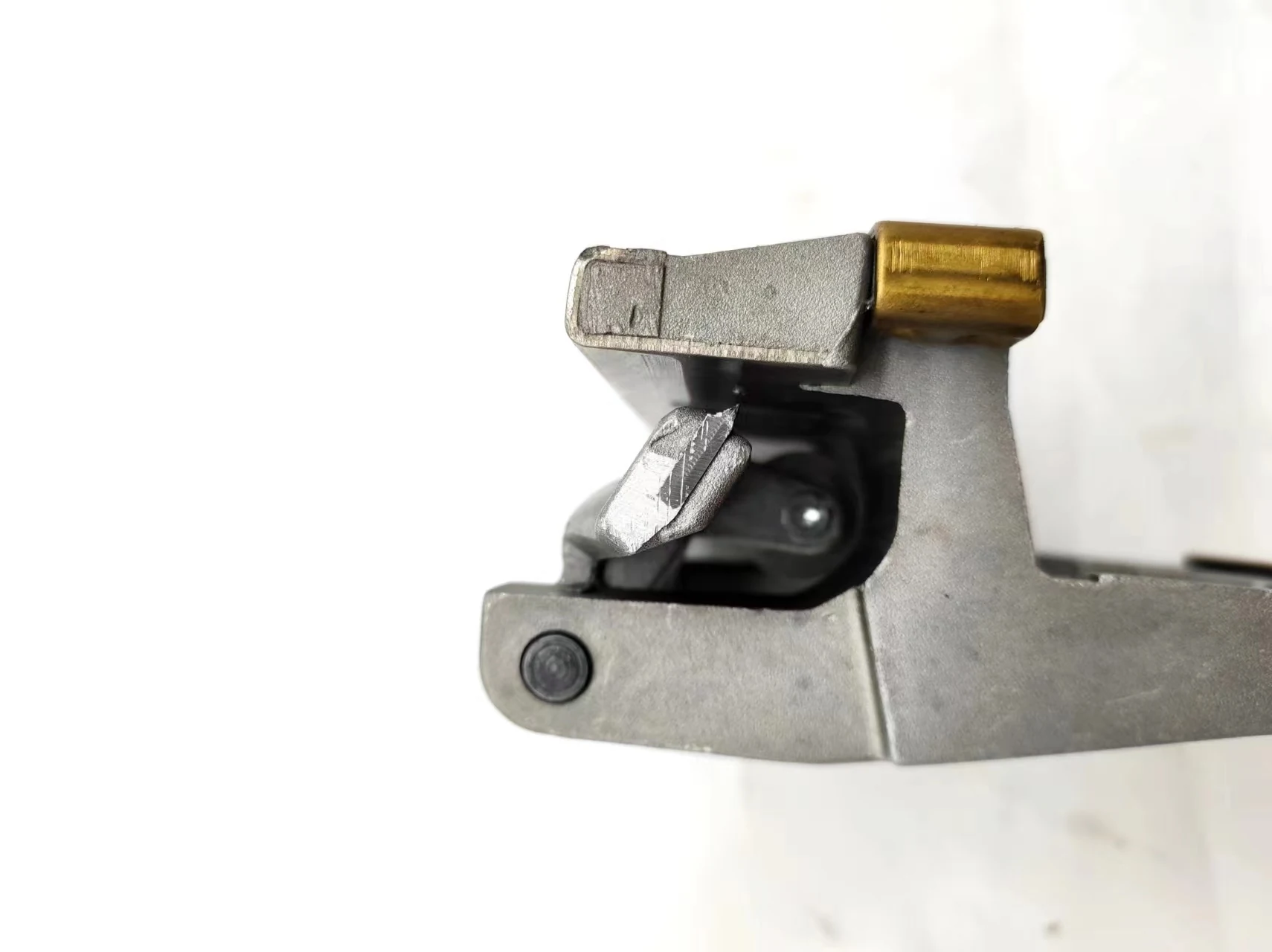

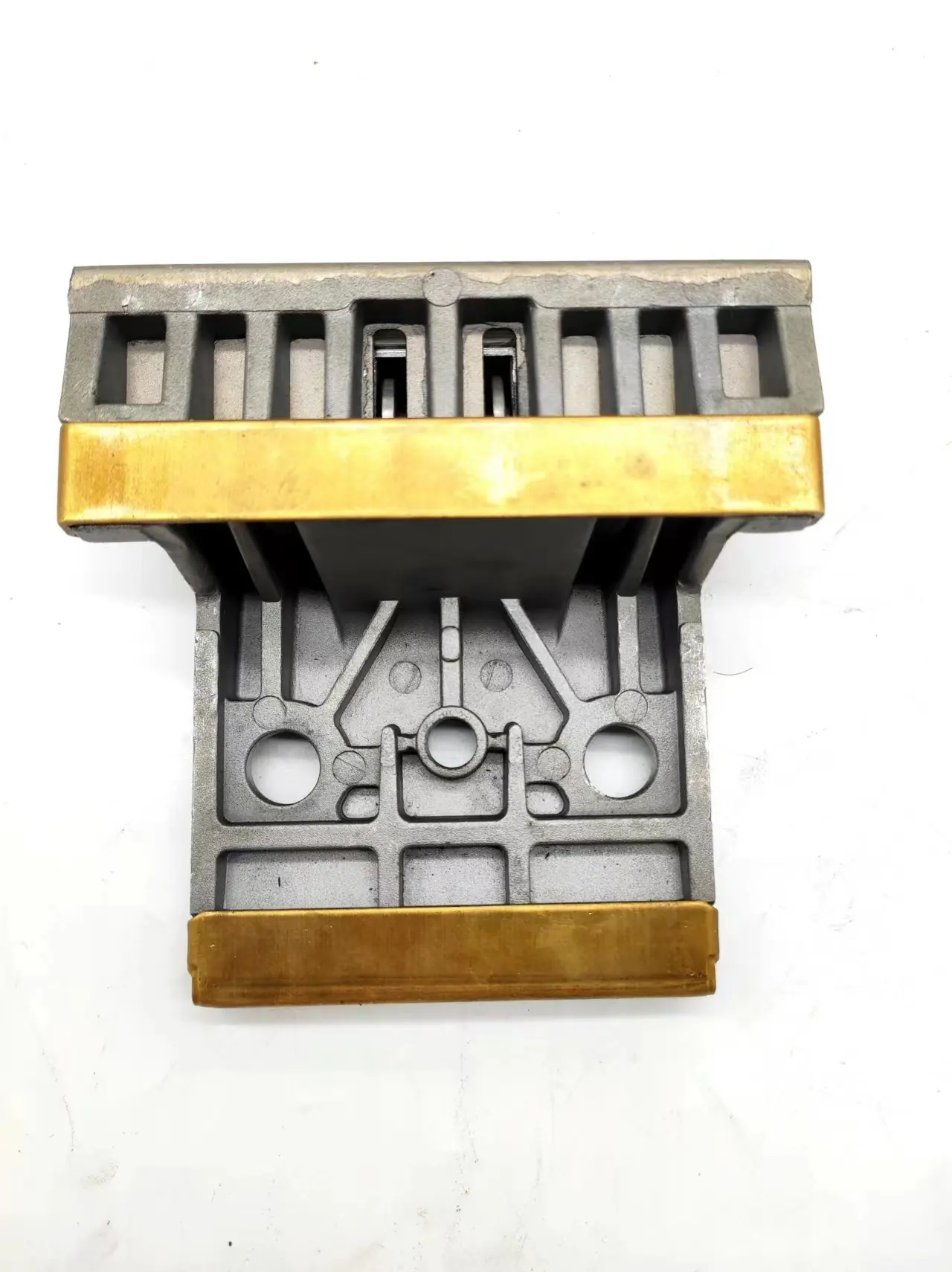

Clip For Monforts Stenters Type 3
Monforts clip that opens at the infeed, closes its knife on the cloth, and reopens at the machine end.
Product Overview
Stenter machines divide into clip stenters and pin stenters. A clip grips the fabric edge between a jaw and a knife instead of piercing it, which is why the edges of the cloth come out relatively flat and why clips suit thicker fabrics.
The working cycle is simple. At the infeed the clip is open. When the cloth enters, the knife of the clip closes and the cloth is held tightly. At the end of the machine the clip reopens and releases the fabric.
Key Benefits
- Leaves the edges of the cloth relatively flat with no pin marks
- Suits thicker fabrics that a pin bed would not hold cleanly
- Positive knife closure, so the cloth is held tightly through the chambers
- Made to the Monforts profile and supplied with the chain it runs on
Who It Is For
- Monforts users running thicker fabrics on clip
- Mills whose customers will not accept pinholes in the selvedge
- Maintenance teams renewing a clip chain section
Problems It Solves
- Pin marks in the selvedge on articles where the edge is visible
- Thick fabric releasing from a pin bed under tension
- Worn clips failing to close fully and dropping the cloth mid-chamber
Application Scenarios
- Heavier woven qualities where pinholes in the selvedge are not acceptable
- Articles where the selvedge is visible in the finished product
- Monforts frames running clip work as their main schedule
Technical Features
- Knife-type closure: open at infeed, closed on entry, reopened at machine end
- Monforts profile
- Metal construction, silver finish
- Suited to thicker fabrics
Specifications
| Machine | Monforts stenter |
|---|---|
| Type | clip, knife closure |
| Best suited to | thicker fabrics |
| Colour | silver |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Closing force checked on every clip against the reference sample
- Knife edge condition inspected before packing
- Open and close cycle tested by hand on each unit
Customisation Options
- Reproduced from your sample clip
- Supplied mounted on chain as a section
- Quoted with Monforts chain, pin plates and holders
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Clip against pin: the clip requires a specific edge, preferably a selvedge, to grip, and is usually confined to woven fabrics. It leaves no pin marks. A pin bed holds more tension and runs faster, and customers generally accept pinholes in the selvedge on pin stentered goods.
Use Guide
Check that each clip opens fully at the infeed before running production
Inspect knife edges for wear; a dull knife slips before it visibly fails
Replace clips in sets along a section rather than individually
Confirm the release point at the machine end is clean and consistent
Send a sample clip when ordering so the profile is matched
FAQ
Questions About Clip For Monforts Stenters Type 3
How does a stenter clip work?
At first the clip is open. When the cloth enters, the knife of the clip closes and holds the cloth tightly. At the end of the machine the clip reopens and releases it.
Clip or pin, which should I use?
Clips leave no pin marks and suit thicker fabrics, but they need a specific edge, preferably a selvedge, to grip, and they are usually confined to woven fabrics. Pins hold more tension and run faster.
Which Monforts clips do you make?
We hold several Monforts clip variants, including a double-use clip that works as both pin and clip. Send a sample and we identify which you run.
Can you supply clips already on chain?
Yes, as a chain section with clips mounted, which shortens the shutdown.
Minimum order?
No fixed minimum. Section quantities are usual.
Lead time?
Within 7 days for standard profiles.
