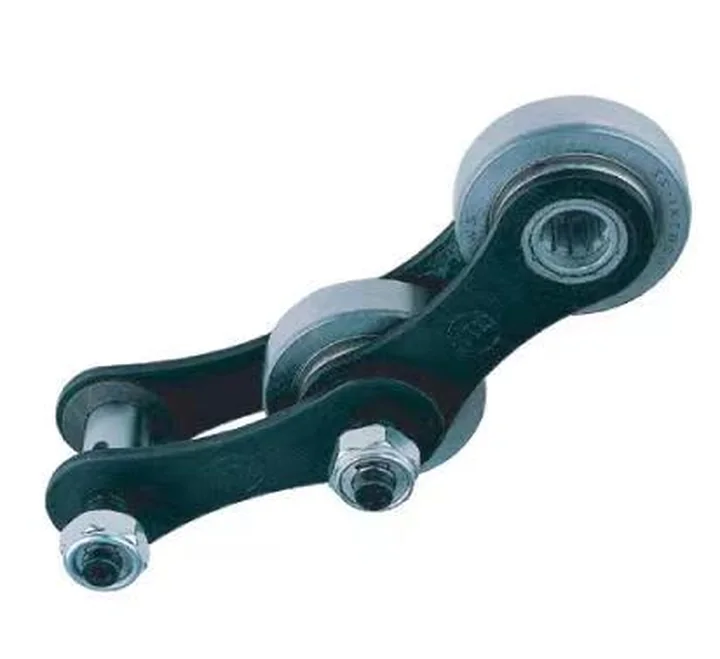

Bruckner Stenter Chain Type 1
The base Bruckner chain build, supplied by the section with all small parts available separately.
Product Overview
The base chain build for Bruckner stenter frames. Like every stenter chain it is an assembly rather than a single item: connectors, U-shaped connectors, pins, bushes, screws, wear sleeves and the components that hold them together.
Bruckner is one of the German brands we cover most closely, and we hold three chain builds for it. This is the first, the conventional specification, and it is the right answer where the line is not running at the top of its speed range.
Key Benefits
- Conventional Bruckner chain build at the lowest cost of the three
- All small components available separately for later servicing
- Supplied by the section with holders and plates if required
- Matched to the Bruckner clips and pin plates we also make
Who It Is For
- Bruckner users renewing a chain on a controlled budget
- Mills with a reliable annual cleaning and greasing routine
- Engineers who want the small parts available separately afterwards
Problems It Solves
- Chain elongation pulling the Bruckner pin bed out of register
- Bruckner chain parts being hard to source individually
- Paying for a premium build on a line that does not need it
Application Scenarios
- Bruckner chain at the end of its service life on a moderate-duty line
- Cost-controlled chain renewal
- Plants that maintain chains well and do not need a premium build
Technical Features
- Connectors, U-shaped connectors, pins, bushes, screws and wear sleeves
- Built for Bruckner stenter frames
- Black finish, approximate weight 0.65 kg
- Supplied by the section to your length
Specifications
| Machine | Bruckner stenter |
|---|---|
| Build | Type 1, conventional specification |
| Colour | black |
| Weight | approx 0.65 kg |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Chain pitch measured over a run of links before despatch
- Free-running check on every assembled link
- Section articulated over a test radius
Customisation Options
- Section length built to your order
- PEEK bush upgrade at order
- Supplied with Bruckner clips, holders and pin plates as one package
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against the Type 2 and Type 3 Bruckner builds, this is the base specification. The higher builds add PEEK bushing and lubrication provision, which earn their cost on hot, hard-run lines and not otherwise.
Use Guide
Gauge chain elongation before deciding scope
Inspect the guide rail while the chain is out
Fit complete sections rather than splicing short runs
Clean the guide and chain at least once a year
Use a high temperature grease such as DuPont, Miller or Kluber
FAQ
Questions About Bruckner Stenter Chain Type 1
Which of your three Bruckner chain builds should I take?
Type 1 is the conventional build and is adequate on a well-maintained line. The lubrication version and the PEEK-bushed builds cost more and pay back where the line runs hot and hard.
Can I buy small parts separately?
Yes. Connectors, U-shaped connectors, pins, bushes, screws and wear sleeves are all available individually.
How is chain length specified?
By your machine run. Tell us the section you are replacing.
What maintenance does it need?
Clean the guide and chain at least once a year and add a high temperature grease.
Do you supply Bruckner clips and pin plates too?
Yes: three clip variants, two pin plate seat profiles, holders and brush wheels in two sizes.
Lead time?
Confirmed at quotation, since chains are built to length.
