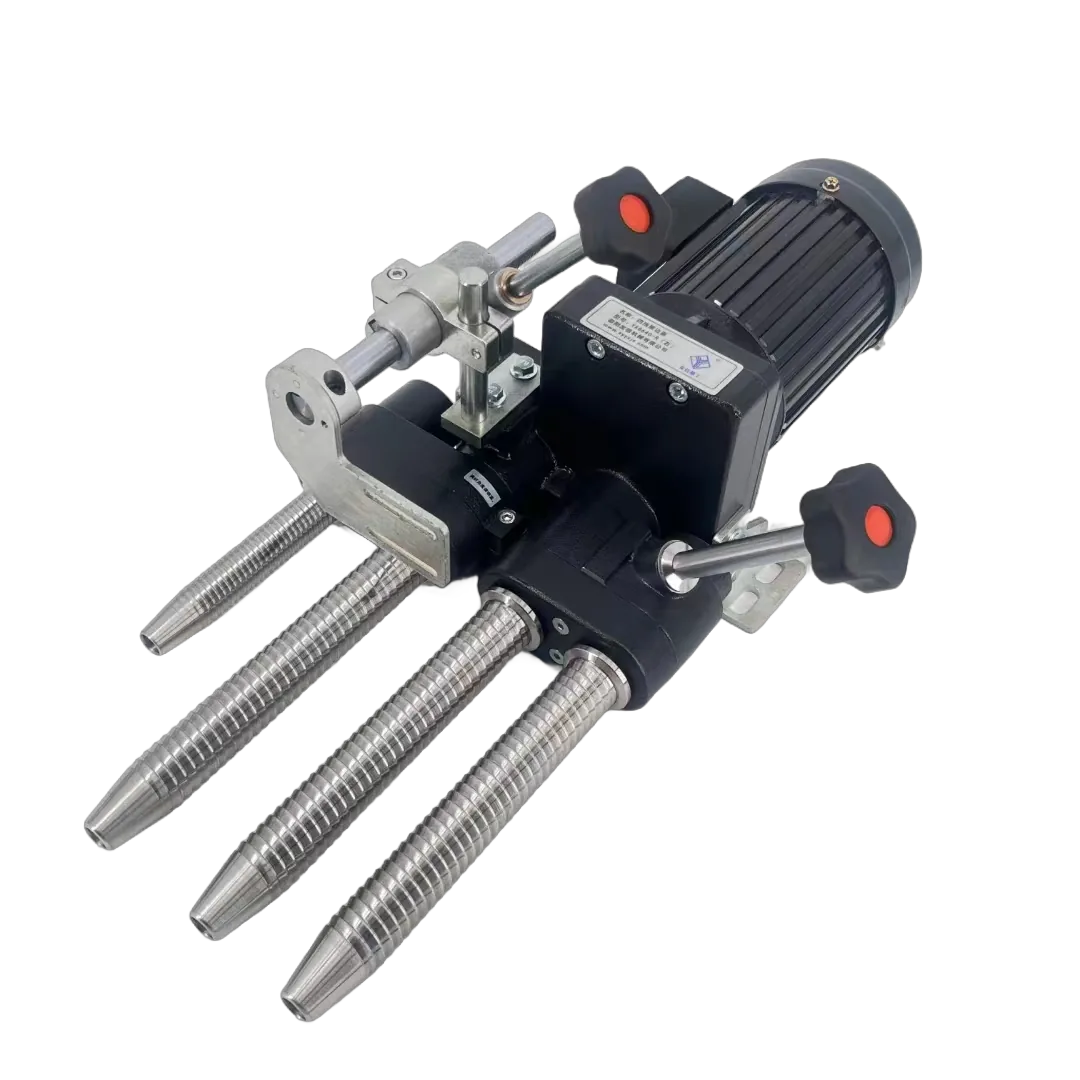

Four Finger Selvedge Uncurler For Monforts Stenters
Four adjustable fingers giving a longer, more progressive edge opening zone at the infeed.
Product Overview
The four-finger selvedge uncurler is an infeed accessory for Monforts stenter machines. Four adjustable fingers gently flatten the fabric edge as it enters the frame, so the selvedge arrives open and square at the pinning point.
Four fingers instead of three means the edge is opened progressively across a longer zone. That matters on heavier or more stubbornly curling cloth, where forcing the edge open in one step leaves a crease of its own.
Key Benefits
- Longer opening zone, so a stubborn edge is unrolled in stages rather than forced
- Prevents rolled or curled selvedges that cause uneven stretching and defects
- Ensures consistent fabric width and proper alignment in the chain clips or pins
- Each finger adjusts independently for fine control across the edge
Who It Is For
- Monforts users whose article mix includes heavy and strongly curling cloth
- Mills upgrading from a three-finger unit after edge faults on heavier articles
- Maintenance teams standardising on one uncurler across several frames
Problems It Solves
- Heavy edges that a short uncurler cannot open without creasing them
- Width variation across the roll caused by an edge entering the pin bed unevenly
- Defects and handling issues traced back to rolled selvedges at the infeed
Application Scenarios
- Denim and heavier apparel fabric finishing where the edge rolls hard
- Home textile production with wide, heavy qualities
- Frames that run a wide article mix and need one uncurler to cover the range
Technical Features
- Four adjustable fingers or guides, individually set
- Mounted at the infeed section of the Monforts stenter
- Metal construction, silver finish, approximate weight 0.6 kg
- Suited to denim, apparel fabrics and home textiles
Specifications
| Specification | TBC — send a sample part and we confirm dimensions |
|---|---|
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Finger tip profile checked against the reference part on every unit
- Full travel test on each adjustment before packing
- Surface finish inspected on all faces that contact fabric
Customisation Options
- Finger length and spacing matched to your existing unit
- Mounting bracket cut to your Monforts generation
- Supplied as a matched pair for both machine sides
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Compared with the three-finger version, this gives a longer and more progressive opening zone and better control on heavy or strongly curling cloth, in exchange for more mounting space and a higher price. Compared with a pneumatic spreader, it is mechanical, so it is not the choice for elastane blends and fine jersey.
Use Guide
Mount at the infeed, ahead of the pinning point, on both machine sides
Start with all four fingers level, then stagger them so the edge opens progressively
Set with the line running slowly and watch the edge through the whole zone
Re-tune when moving between article weights instead of leaving one setting
Check finger tips for grooving and replace before a groove starts to mark the cloth
FAQ
Questions About Four Finger Selvedge Uncurler For Monforts Stenters
How is this different from the three-finger unit?
Four fingers open the edge across a longer zone, in stages. On heavy or strongly curling fabric that is the difference between an open edge and a creased one. On light medium-weight wovens the three-finger unit is usually enough.
Which machines does it fit?
Monforts stenter machines, mounted at the infeed section. Confirm your machine generation with us and we match the bracket.
Can each finger be set separately?
Yes. Independent adjustment is the point of the design, because the outer and inner parts of a rolled edge need different treatment.
What fabrics is it used on?
Textile finishing including denim, apparel fabrics and home textiles.
Do you supply the pin plates behind it?
Yes. We manufacture pin plates, pin plate holders, chains and clips for Monforts and other frames, so the whole infeed can come from one order.
Delivery?
Standard units ship within 7 days of order confirmation.
