Selvedge Uncurlers and Web Guiders

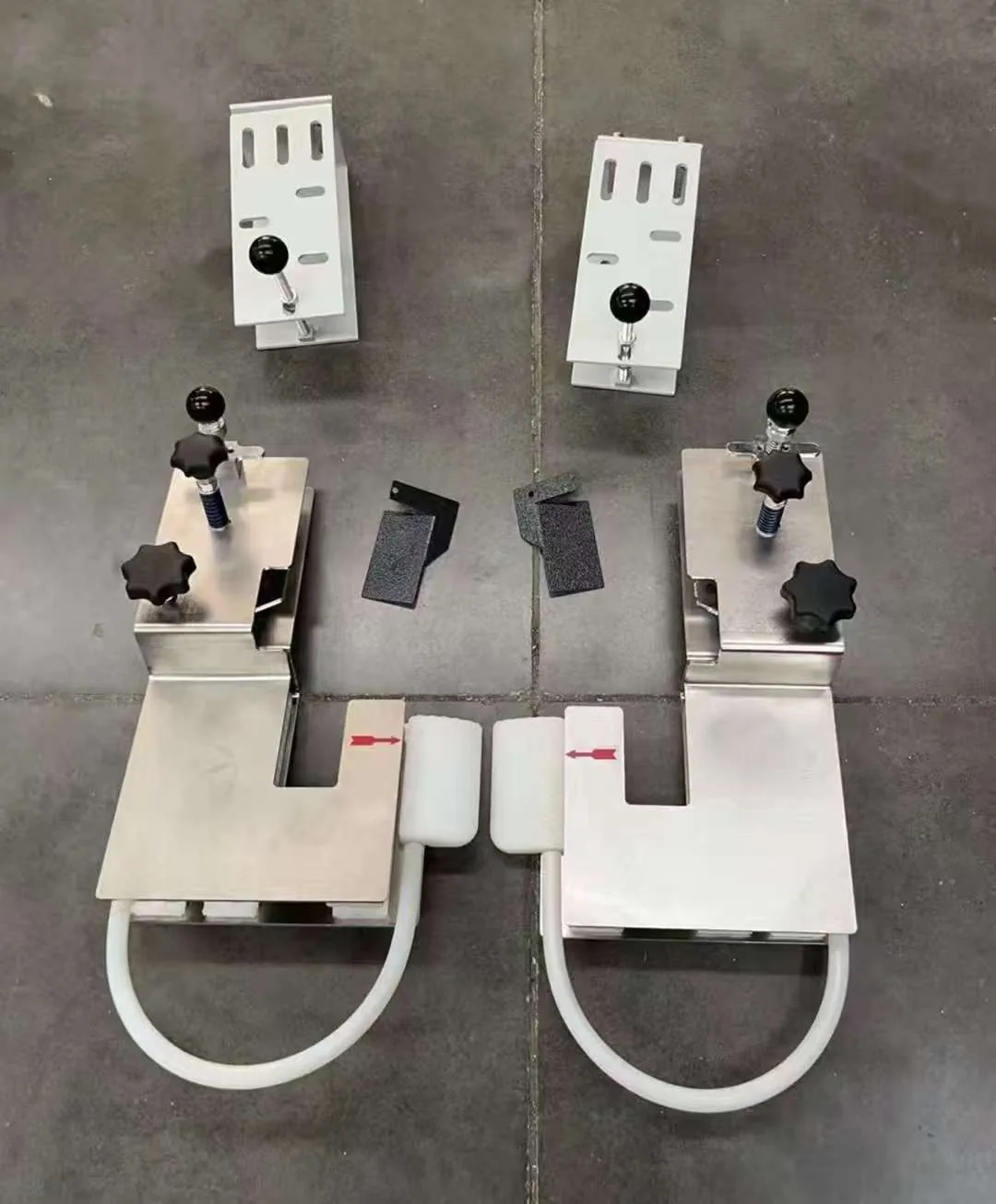

Flat Nylon Selvedge Uncurler
Non-abrasive nylon guide that flattens fabric edges without the damage a metal guide causes.
Product Overview
A flat nylon selvedge uncurler is a specialised guide used in stenter machines such as Monforts, Bruckner and Santex to stop fabric edges curling or rolling during processing.
The reason to choose nylon over metal is simple: on delicate or lightweight qualities a metal guide can damage the edge. High-wear nylon handles the cloth smoothly, resists heat and the chemicals used in finishing, and keeps friction low.
Key Benefits
- Non-abrasive contact face, so friction and edge damage drop compared with a metal guide
- Resistant to heat and to the chemicals present in finishing processes
- Flat profile gently opens the edge instead of forcing it
- Height and angle are normally adjustable for different fabric types
Who It Is For
- Mills processing delicate or lightweight cloth on a frame set up for general work
- Maintenance engineers who want a drop-in alternative to a metal guide
- Buyers who need an uncurler that will not mark the selvedge
Problems It Solves
- Metal guides scoring or abrading the fabric edge on light qualities
- Curled edges entering the pin bed and being pinned folded
- Guides degrading under the heat and chemistry of the finishing line
Application Scenarios
- Lightweight woven finishing where the edge shows every mark
- Replacing a worn metal guide that has started to score the selvedge
- Delicate qualities on a stenter frame that otherwise runs heavier goods
Technical Features
- Made from high-wear nylon or polymer for smooth fabric handling
- Flat or slightly curved profile to gently uncurl edges
- Often adjustable in height and angle for different fabric types
- Can be used as a replacement for existing guide hardware
Specifications
| Specification | TBC — send a sample part and we confirm dimensions |
|---|---|
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Profile and flatness check on the fabric-facing surface
- Material hardness check on incoming nylon stock
- Fit check against the customer's mounting reference where one is supplied
Customisation Options
- Profile and mounting hole pattern cut to your existing part
- Different polymer grades available depending on line temperature
- Supplied as a set for both machine sides
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against a metal guide, nylon trades a little rigidity for a much kinder contact face. Against a pneumatic spreader, it costs far less and needs no air supply, but it does touch the cloth, so on elastane and fine jersey a pneumatic unit is the safer choice.
Use Guide
Fit both machine sides and set them symmetrically
Set height so the uncurler just contacts the rolled edge, not the body of the cloth
Adjust angle until the edge opens without being dragged outward
Check the contact face for grooving at each maintenance stop
Replace both sides together so edge behaviour stays symmetrical
FAQ
Questions About Flat Nylon Selvedge Uncurler
Which machines does this fit?
It is used on stenter machines including Monforts, Bruckner and Santex. Send a photo or the old part and we match the profile and mounting.
Why nylon instead of steel?
Because on delicate or lightweight fabrics a metal guide can damage the edge. Nylon is non-abrasive, so friction and edge damage are reduced.
Will it survive the finishing chemistry?
The nylon grade used is resistant to heat and to the chemicals used in finishing processes. Tell us your maximum line temperature and we confirm the grade.
Is it adjustable?
Units are normally adjustable in height and angle so one part covers a range of fabric types.
Can it replace my current guide?
It is commonly fitted as a replacement for existing guides. The practical step is to send us the old part or a dimensioned photo.
What is the delivery time?
Standard profiles ship within 7 days. Custom profiles depend on the drawing and are confirmed at quotation.
