Monforts Stenter Chain Parts

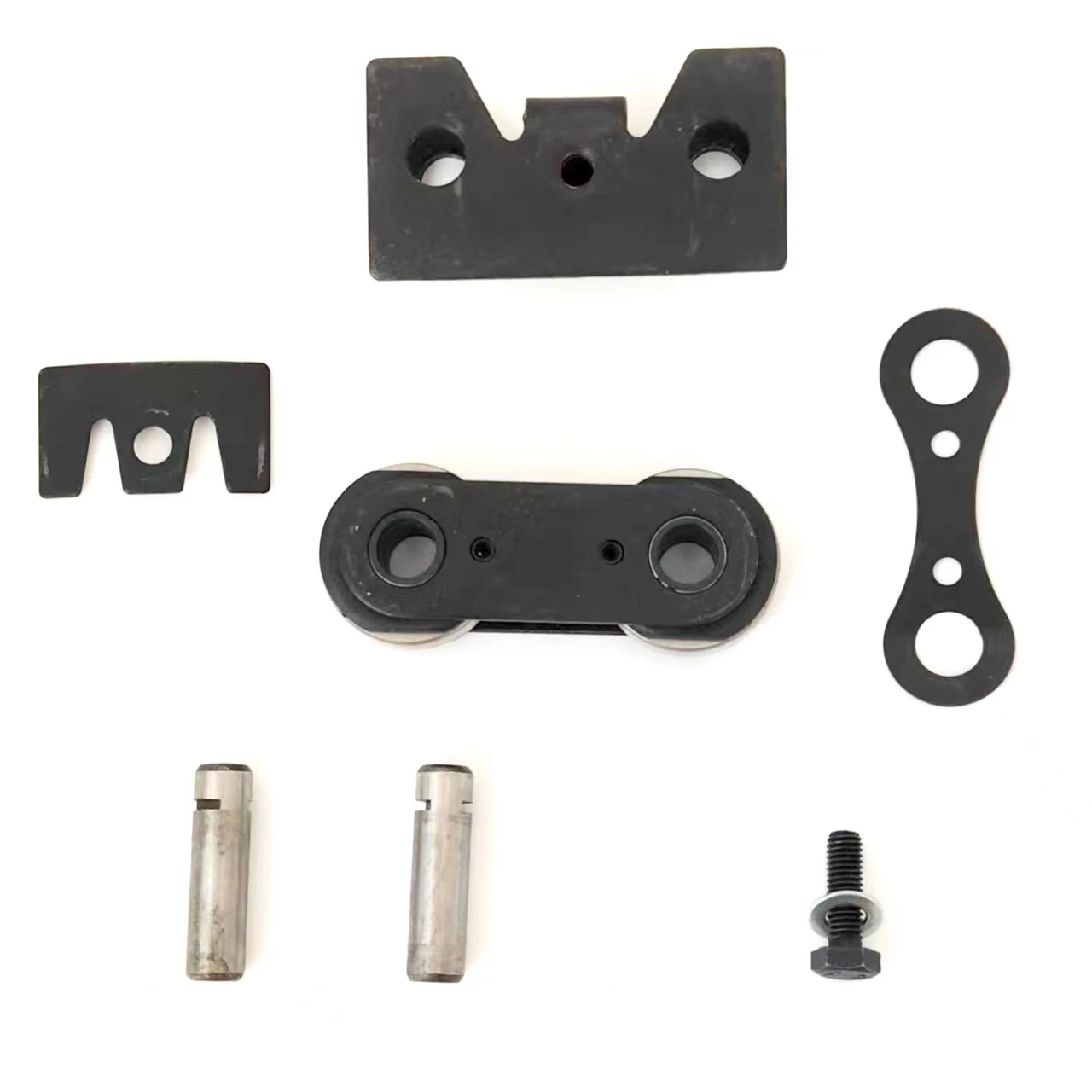

Loose chain components for Monforts oil-free guide frames: connectors, pins, PEEK bushes, dust covers and wear sleeves.
Product Overview
A stenter chain is not a single item. It consists of connectors, U-shaped connectors, pins, PEEK bushes, PEEK dust cover screws, wear sleeves and other components, and each of those wears at its own rate.
We sell the small parts individually as well as the complete chain, which is what most maintenance departments actually need. Bushes and sleeves go long before the connectors do, and replacing only what has worn keeps the chain in register without the cost of a full renewal.
Key Benefits
- Small parts sold individually, so you replace only what has worn
- Built for Monforts oil-free guide frames with high quality bearings
- PEEK bushes and dust cover screws available as separate items
- Long service life when the chain is cleaned and greased on schedule
Who It Is For
- Monforts users who service chains rather than replace them
- Maintenance stores building a chain spares kit
- Engineers extending chain life between major overhauls
Problems It Solves
- Replacing a whole chain when only bushes and sleeves have worn
- Chain running rough on the track because bushes have gone
- Small chain parts being unavailable separately from original suppliers
Application Scenarios
- Routine chain servicing where bushes and sleeves are due but connectors are sound
- Rebuilding a chain section after localised damage
- Stocking a chain spares kit against unplanned stops
Technical Features
- Components: connectors, U-shaped connectors, pins, PEEK bushes, PEEK dust cover screws, wear sleeves
- For Monforts stenters with oil-free guide
- High quality bearings
- Black finish, approximate assembly weight 0.65 kg
Specifications
| Machine | Monforts stenter, oil-free guide |
|---|---|
| Components | connectors, U-shaped connectors, pins, PEEK bushes, PEEK dust cover screws, wear sleeves |
| Colour | black |
| Weight | approx 0.65 kg |
| Lead time | within 7 days |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Bearing quality verified on incoming stock before assembly parts are released
- Pin and bush fit checked as a pair rather than individually
- Dimensional sampling through every batch of wear sleeves
Customisation Options
- Individual components supplied in any combination you need
- PEEK or standard bush specification at your choice
- Kits made up per machine so the store holds one part number
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against a complete chain, buying parts is far cheaper and is the right answer while the connectors and pins are still within tolerance. Once chain pitch has elongated to the point where the pin bed drifts out of register, parts will not save it and a chain section is the honest fix.
Use Guide
Gauge chain pitch before deciding between parts and a full section
Clean the guide and chain at least once a year
Add a high temperature grease such as DuPont, Miller or Kluber
Replace bushes and sleeves as a set along the section, not individually
Record service dates, because chain life is a function of maintenance more than of hours
FAQ
Questions About Monforts Stenter Chain Parts
Can I buy just the bushes?
Yes. We sell the small parts individually: connectors, U-shaped connectors, pins, PEEK bushes, PEEK dust cover screws and wear sleeves.
How often should the chain be greased?
Clean the guide and chain at least once a year and add a high temperature grease. DuPont, Miller and Kluber greases are used for this.
Is this for oil-free guide machines?
Yes, this chain is for Monforts stenters with oil-free guide.
When should I replace the whole chain instead?
When chain pitch has elongated enough that the pin bed cannot be held in register. Below that point, replacing wear parts is the better value.
Do you supply PEEK bushes separately?
Yes, and they are a common upgrade because PEEK is self-lubricating and outlasts the original copper mesh lining.
Lead time?
Within 7 days.
