Tipper Dump Trailer Stone Sand Transport U Shape 3 Axles 38Cbm Dump Semi-Trailer for Sale
38cbm U shape stone and sand tipper, 9800*2500*3800mm, 50 tonne payload on FUWA 16T axles.
Overview
What This Trailer Is Built For

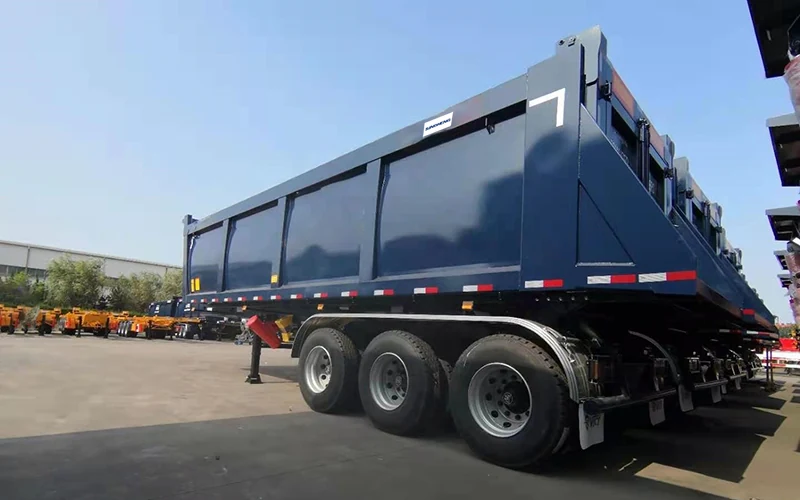

A three-axle U shape tipper at 38 cubic metres on a 9800mm*2500mm*3800mm chassis, rated at 50 tonnes maximum payload on FUWA 16 tonne axles. The U shape body is the specific choice for stone and sand: the curved floor has no corners for material to pack into, so the load releases cleanly and the body empties without the driver having to shake the trailer. Suspension is mechanical, the kingpin is 2 inch 50mm or 3.5 inch 90mm, landing gear is JOST two-speed, tires can be 11.00R20, 12R22.5, 315 or 385 series, and the trailer carries CE marking.
Key Benefits
What You Get
- U shape floor has no corners for sand and stone to pack into, so the body empties cleanly
- 38 cubic metres on a compact 9800mm chassis keeps the trailer manoeuvrable on site
- 50 tonne payload on FUWA 16 tonne axles
- Four tire series options for local availability
- CE marking supports import documentation
Problems Solved
What It Fixes
- Square-cornered bodies retain wet sand and stone that has to be dug out
- Long tippers cannot manoeuvre on congested urban sites
- Shaking a stuck load damages the body and the tipping gear
- Unavailable tire sizes strand a trailer after a blowout
Who It Is For
Operators Who Buy This Model
- Aggregate and sand hauliers
- Concrete batching supply operations
- Quarry transport contractors
- Operators whose drivers lose time cleaning out square bodies
Application Scenarios
Where It Works
- Stone and sand haulage from quarry to batching plant
- Aggregate delivery on urban construction sites
- Gravel and crushed rock transport
- Wet material haulage where cleaning out is a daily problem
Technical Features
Build Specification
- Three axles, U shape tipper dump trailer, material steel
- Size 9800mm*2500mm*3800mm, body volume 38cbm
- Maximum payload 50 ton
- Axles FUWA 16 ton, mechanical suspension
- Kingpin 2 inch 50mm or 3.5 inch 90mm, landing gear JOST brand two-speed
- Tires 11.00R20, 12R22.5, 315 or 385 series
- CE certification, colour to customer request
Specifications
Manufacturer Data Sheet
| Use | Truck Trailer |
|---|---|
| Type | Three axles 38cbm tipper dump trailer |
| Material | Steel |
| Size | 9800mm*2500mm*3800mm |
| Max Payload | 50ton Brand Name tipper trailer |
| Axle | FUWA 16ton tipper trailer |
| Suspension | Mechanical tipper trailer Color Customer’s Request |
| King Pin | 2′′(50mm)or3.5′′(90mm) tipper trailer |
| Landing Gear | JOST Brand Two-speed |
| Tire | 11.00r20 12r22.5 315 385 |
| Certification | ce |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- U shape body profile checked against the drawing
- Hydraulic lift cycle test under load
- Weld inspection on the body and main beam
- Axle alignment and brake balance test
Customization
What You Can Change
- Body volume and plate thickness set to your material
- Tire series chosen from four options
- Kingpin 2 inch or 3.5 inch
- Colour finished to your request
- Tail gate arrangement specified at order
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Rectangular body tipper | The U shape releases wet sand and stone cleanly; a rectangular body carries squared and mixed loads better. |
| Six-axle 70 tonne tipper | This three-axle unit is lighter and more manoeuvrable; the six-axle carries far more on dense material. |
| 55cbm four-axle tipper | 38cbm suits dense stone that reaches the weight limit before it fills the body; larger volumes suit lighter material. |
Use Guide
Operating This Trailer
- Choose the U shape if you regularly carry wet sand or sticky material
- Tip only on level compacted ground with the tractor in line
- Lower the body fully before moving off
- Check the floor plate for abrasion wear after rock work
- Grease hinge pins and inspect cylinder seals at each service
Related Products
Related Trailers
Rear Flip Tipper Semi Trailer 40cubic 3 Axle Heavy Duty for Sale
40 cubic metre rear flip tipper, HYVA or China lifting brand, mechanical or air suspension.
View Specification
Heavy Truck Trailer 3 Axles Dump Semi Side Trailer 80ton Hydraulic Side Tipping Trailer
80 tonne hydraulic side tipping trailer on an Hg60 main beam with 12 twist locks.
View Specification

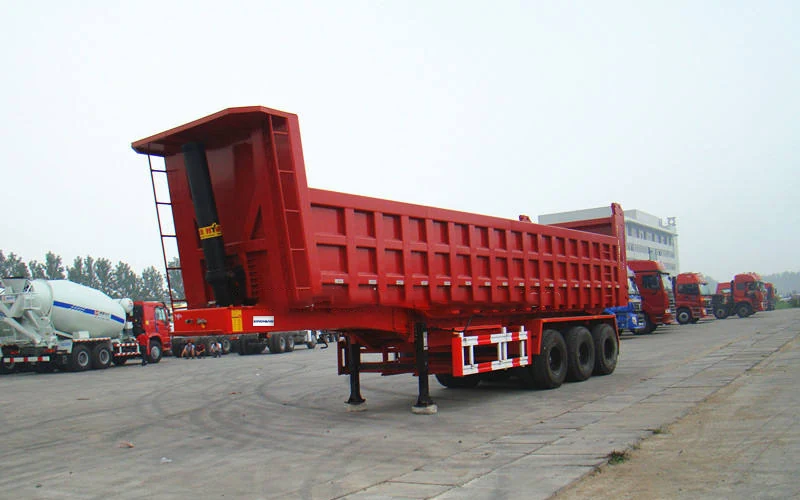

Heavy Duty Tipping Truck Trailer Dump Semi Trailer China Manufacturer
Gooseneck rear dump trailer, 30m3 body at 9600kg tare with a full HYVA 196 lifting set.
View SpecificationKnowledge
Related Guides
Ten Types of Semi Trailer and How to Choose
A working comparison of the ten semi-trailer types we build most often, what each is actually for, and how to pick the one that matches your cargo and your roads.
How Much Does a Semi Trailer From China Cost
How trailer pricing actually works, what moves the number, and reference FOB prices for a range of SINOHENG models.
Four Reasons the Side Dump Truck Market Keeps Growing
Structure, load capacity, safety devices and cycle time: why side-unloading trailers have taken market share from conventional tippers.
FAQ
Questions About This Model
Why Choose a U Shape Body
The curved floor has no corners for wet sand or stone to pack into, so the load releases cleanly and drivers do not have to shake the trailer to empty it.
What Is the Body Volume
38 cubic metres on a 9800mm x 2500mm x 3800mm chassis.
What Payload Can It Carry
50 tonnes maximum on FUWA 16 tonne axles. Confirm local axle limits, which usually set the legal figure.
Which Tires Can Be Fitted
11.00R20, 12R22.5, 315 series or 385 series.
What Kingpin Does It Use
2 inch 50mm or 3.5 inch 90mm. Confirm which size your tractor fifth wheel takes.
Does It Carry CE Marking
CE certification is listed for this model. We confirm the applicable documents for your destination before shipment.
Can the Body Volume Be Increased
Yes. Body volume and plate thickness are set to the material density you carry. Tell us your material and we will size it.
