Heavy Duty Tipping Truck Trailer Dump Semi Trailer China Manufacturer
Gooseneck rear dump trailer, 30m3 body at 9600kg tare with a full HYVA 196 lifting set.
Overview
What This Trailer Is Built For

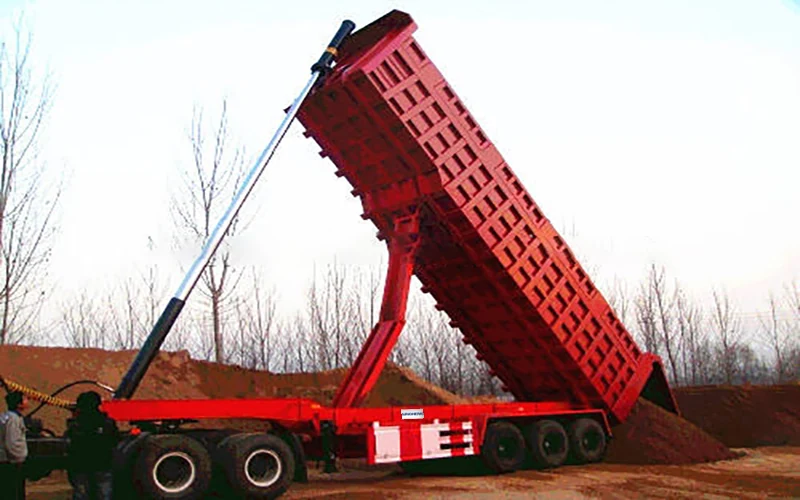

A gooseneck rear dumping trailer with a 30 cubic metre body at 9600kg tare on a 10000*2500*3970mm envelope. The gooseneck design lowers the body over the tractor so the centre of gravity stays down when the trailer is loaded, which matters on the rough ground where tippers actually work. The main frame is 500mm high, axles are three 13T FUWA units on common mechanical suspension, the kingpin is a JOST 2.00 inch traction pin, landing legs are JOST brand, tires are 12.00R22.5 on 9.00-22.5 rims, and the lifting set is a full HYVA 196 package.
Key Benefits
What You Get
- Gooseneck body design keeps the loaded centre of gravity low, which improves stability on uneven ground
- 30 cubic metre body at 9600kg tare is a good volume-to-weight balance for a heavy-duty tipper
- Full HYVA 196 lifting set rather than a mixed hydraulic package
- 500mm main frame height gives the section depth a tipping load needs
- JOST kingpin and landing legs are specified brands with known parts availability
Problems Solved
What It Fixes
- High-bodied tippers are unstable when loaded on uneven ground
- Mixed hydraulic components are hard to support with one parts supplier
- Shallow main frames flex under repeated tipping loads
- Unbranded kingpins and landing legs fail under heavy use
Who It Is For
Operators Who Buy This Model
- Bulk hauliers working on uneven ground
- Quarry and mining transport contractors
- Civil contractors on earthworks packages
- Operators who have had stability problems with high-bodied tippers
Application Scenarios
Where It Works
- Aggregate and sand haulage on rough site roads
- Mine and quarry material movement
- Construction spoil and demolition waste removal
- Agricultural bulk transport
Technical Features
Build Specification
- Gooseneck rear dumping trailer, outside dimension 10000*2500*3970mm
- Body volume 30m3, tare weight 9600KG
- Three axles at 13T, FUWA brand, common mechanical suspension
- Main frame height 500mm
- Kingpin JOST 2.00 inch traction pin, landing legs JOST brand
- Tires 12.00R22.5, rims 9.00-22.5
- Lifting system full set of HYVA 196
Specifications
Manufacturer Data Sheet
| Type | Gooseneck Rear dumping trailer |
|---|---|
| Tare Weight | 9600KG |
| Payload | 30m3 |
| Axle | specs. 3axles *13T FUWA |
| Suspension | Common mechanical suspensions |
| King Pin | JOST 2.00inch traction pin |
| Dimensions | Out side dimension:10000*2500*3970 |
| Rim | 9.00-22.5 |
| Tire | specs. 12.00R22.5 Landing legs JOST brand Lifting system Full set of HYVA 196 |
| Frame | (specs. and materials) Main frame Main frame is height 500mm |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Hydraulic lift cycle tested through full travel under load
- Main frame weld inspection at the tipping mounts
- Axle alignment and brake balance test
- Loaded stability check before dispatch
Customization
What You Can Change
- Body volume and plate thickness set to your material
- Axle brand and rating chosen to suit local service
- Tire and rim specification changed to local supply
- Air suspension in place of mechanical on request
- Tail gate arrangement specified at order
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Straight-frame rear tipper | The gooseneck lowers the loaded centre of gravity for better stability on uneven ground; a straight frame is simpler and slightly lighter. |
| Side tipping trailer | Rear tipping is safer on soft ground; side tipping unloads faster along a trench or roadside. |
| 55cbm four-axle tipper | The 30m3 gooseneck is more manageable on rough site roads; the larger four-axle unit carries far more per trip on better ground. |
Use Guide
Operating This Trailer
- Tip only on level compacted ground with the tractor in line
- Lower the body fully before moving off
- Keep the load spread evenly toward the front of the body
- Grease the hinge pins and check HYVA cylinder seals at each service
- Inspect the main frame around the tipping mounts regularly
Related Products
Related Trailers
Rear Flip Tipper Semi Trailer 40cubic 3 Axle Heavy Duty for Sale
40 cubic metre rear flip tipper, HYVA or China lifting brand, mechanical or air suspension.
View Specification
Heavy Truck Trailer 3 Axles Dump Semi Side Trailer 80ton Hydraulic Side Tipping Trailer
80 tonne hydraulic side tipping trailer on an Hg60 main beam with 12 twist locks.
View Specification
Dump Tipper Semi-Trailer Bucket 6 Axles Tipper Truck Trailer China Factory Direct for Sale
Six-axle bucket dump tipper, 10500*2500*3800mm, 70 tonne payload on FUWA 16 tonne axles.
View SpecificationFAQ
Questions About This Model
What Is the Body Volume
30 cubic metres, at a 9600kg tare weight within a 10000*2500*3970mm envelope.
Why a Gooseneck Design
The gooseneck lowers the body over the tractor so the loaded centre of gravity stays down, which improves stability on the uneven ground where tippers usually work.
What Lifting System Is Used
A full HYVA 196 set, rather than a mixed hydraulic package, so the components come from one supplier for parts support.
What Axles Are Fitted
Three 13T FUWA axles on common mechanical suspension, with 12.00R22.5 tires on 9.00-22.5 rims.
What Kingpin and Landing Legs
A JOST 2.00 inch traction pin and JOST brand landing legs.
Can the Body Be Made Larger
Yes. Body volume and plate thickness are set to the material you carry. Tell us the density and typical load and we will size it.
What Is the Warranty
One year quality guarantee from delivery, with spare parts supply for the whole service life of the trailer.
