Overview
What This Trailer Is Built For

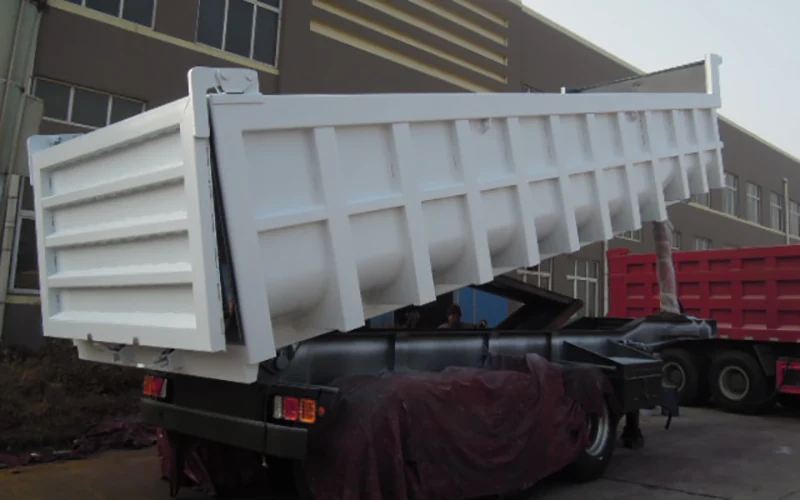

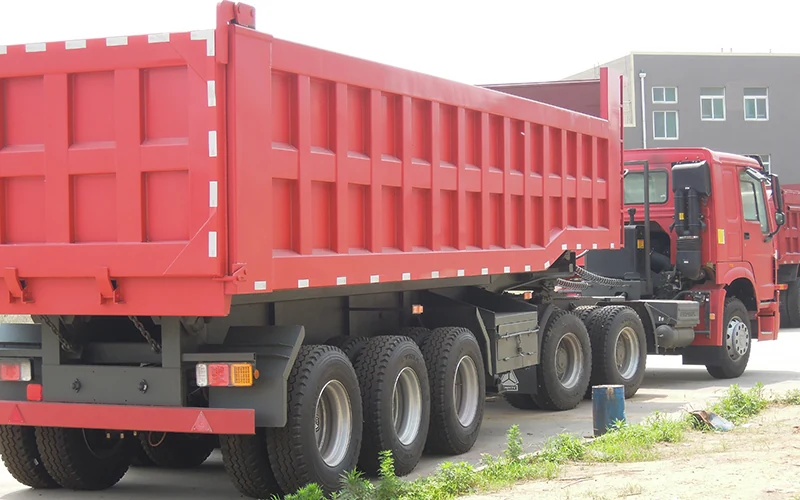

A 40 cubic metre rear flip tipper on an outside dimension of 10.3m x 2.5m x 3.3m with a 9.5m x 2.3m x 1.8m box, built for bulk haulage between 20 and 60 tonnes. The chassis main beam is high tensile carbon steel and the frame beam is sized to the maximum capacity you specify, so the trailer is built around your load rather than a single standard. Lifting is by HYVA 196 or China 191 brand cylinder, axles are FUWA, BPW or a Chinese brand of your choosing, and suspension is mechanical or air. Landing gear is a 28T two-speed unit and tires are 315/80R22.5, 12 pieces.
Key Benefits
What You Get
- Frame beam sized to your stated maximum capacity rather than a fixed factory default
- Load capacity spans 20 to 60 tonnes, so one model covers light aggregate and heavy ore work
- Choice of HYVA 196 or China 191 lifting brand lets you match parts availability in your market
- High tensile carbon steel main beam resists the bending that ends a tipper chassis
- Axle brand open to FUWA, BPW or a Chinese brand to suit local service support
Problems Solved
What It Fixes
- A factory-standard frame is either overweight for light work or underbuilt for heavy
- Hydraulic brands with no local parts support strand a trailer after a seal failure
- Mixed axle brands across a fleet complicate spares
- Single-speed landing gear is slow under a loaded body
Who It Is For
Operators Who Buy This Model
- Bulk hauliers with varied load densities
- Quarry and mine transport contractors
- Fleets that standardise on a particular axle or hydraulic brand
- Operators who want the frame specified to their real payload
Application Scenarios
Where It Works
- Aggregate and sand haulage to batching plants
- Ore and overburden movement at open-pit sites
- Grain and bulk agricultural product transport
- Construction spoil and demolition waste removal
Technical Features
Build Specification
- Outside dimension 10.3m x 2.5m x 3.3m, box dimension 9.5m x 2.3m x 1.8m, 40 cubic metres
- Load capacity 20 to 60 tonnes
- Chassis main beam in high tensile carbon steel, frame beam sized to maximum capacity
- Lifting brand HYVA 196 or China 191
- Three axles, FUWA or BPW or Chinese brand
- Mechanical or air suspension, 2.00 or 3.5 inch bolt-in kingpin
- 28T two-speed landing gear, 315/80R22.5 tires, 12 pieces
Specifications
Manufacturer Data Sheet
| Frame | Beam: According to your max capacity, heavy duty Parts |
|---|---|
| Axle | FUWA or BPW or Chinese Famous Brand |
| Suspension | Mechanical or Air |
| King Pin | 2.00 or 3.5 inch bolt-in |
| Landing Gear | 28T lifting capacity with two |
| Tire | 315/80R22.5*12pcs Or Optional |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Frame beam sizing checked against the declared maximum capacity
- Hydraulic circuit pressure tested and cycled before painting
- Weld inspection on main beam and body mountings
- Brake and lift function test before dispatch
Customization
What You Can Change
- Frame beam sized to the maximum capacity you specify
- Lifting brand HYVA 196 or China 191
- Axle brand FUWA, BPW or Chinese brand
- Mechanical or air suspension
- Kingpin 2.00 or 3.5 inch, tire specification to local supply
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Fixed-specification tipper | Sizing the frame beam to your real maximum payload avoids both carrying unnecessary steel and cracking an underbuilt frame. |
| Side tipping trailer | Rear tipping is safer on soft or uneven ground; side tipping unloads faster along a trench or roadside. |
| U-shape dump body | The rectangular box handles squared and mixed loads; a U-shape sheds sticky material faster. |
Use Guide
Operating This Trailer
- State your true maximum payload at enquiry so the frame beam is sized correctly
- Tip only on level compacted ground with the tractor in line
- Lower the body fully before moving off
- Use the two-speed landing gear in low gear under load
- Grease hinge pins and check cylinder seals at each service
Related Products
Related Trailers
Heavy Truck Trailer 3 Axles Dump Semi Side Trailer 80ton Hydraulic Side Tipping Trailer
80 tonne hydraulic side tipping trailer on an Hg60 main beam with 12 twist locks.
View Specification
Heavy Duty Tipping Truck Trailer Dump Semi Trailer China Manufacturer
Gooseneck rear dump trailer, 30m3 body at 9600kg tare with a full HYVA 196 lifting set.
View Specification
Dump Tipper Semi-Trailer Bucket 6 Axles Tipper Truck Trailer China Factory Direct for Sale
Six-axle bucket dump tipper, 10500*2500*3800mm, 70 tonne payload on FUWA 16 tonne axles.
View SpecificationKnowledge
Related Guides
Lifting Bridge Suspension Design on Semi Trailers
A patented axle-lift design from Liangshan that raises the first and third axles together, cutting fuel consumption and tire wear when running light.
FAQ
Questions About This Model
What Is the Body Volume
40 cubic metres, from a box of 9.5m x 2.3m x 1.8m inside an overall 10.3m x 2.5m x 3.3m envelope.
What Load Capacity Can It Take
20 to 60 tonnes. The frame beam is sized to the maximum capacity you declare, so tell us your heaviest regular load at enquiry.
Which Hydraulic Brand Is Used
HYVA 196 or China 191. Choose the one with better parts support in your market, since a cylinder seal failure stops the trailer.
Can I Choose the Axle Brand
Yes. FUWA, BPW or a Chinese brand, depending on what your local service network supports.
Mechanical or Air Suspension
Both are available. Mechanical is easier to repair on unsealed roads, air gives a better ride on paved corridors.
What Tires Does It Carry
315/80R22.5, twelve pieces, with other sizes available on request.
How Do You Quote
Send us your load type, maximum payload and country of use. We confirm the frame sizing and configuration and quote FOB or CIF within one to three days.
