Eye Bolts and Eye Nuts

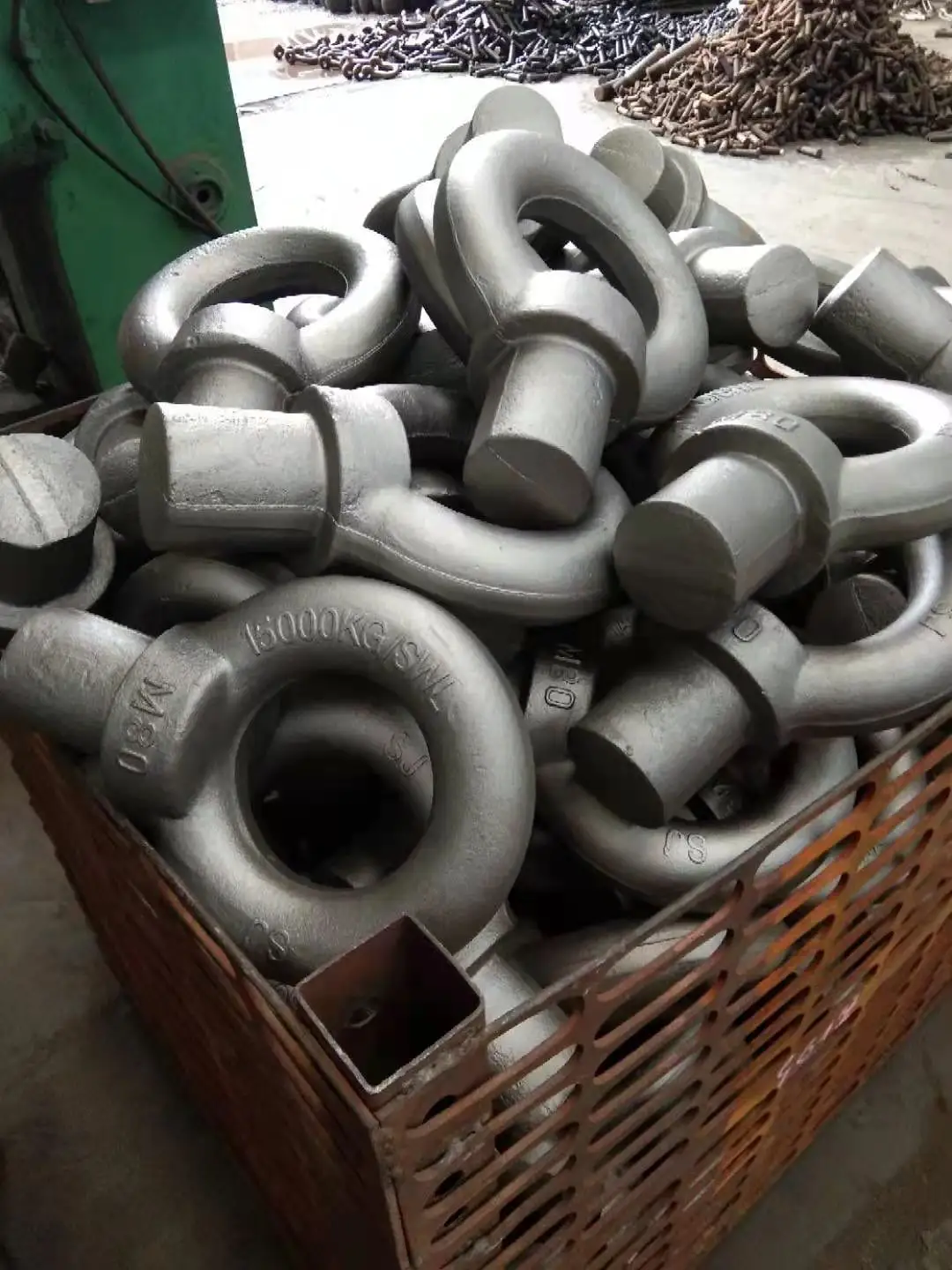

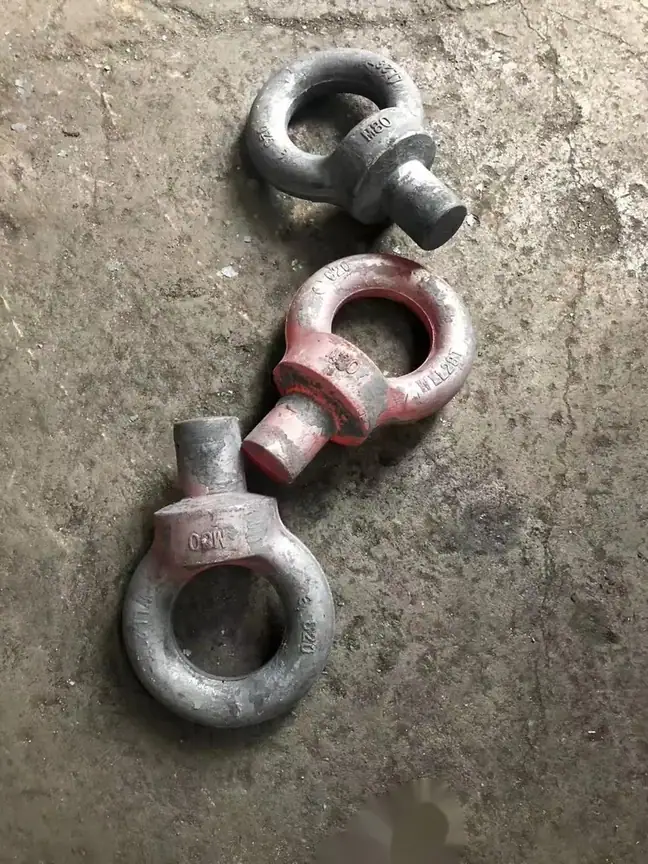

DIN 580 Eye Bolt
A DIN 580 eye bolt made from super carbon steel with a zinc-plated finish, designed for use in rigging and lifting applications. Available in sizes from M6 to M72X6, with a standard 4:1 safety factor and WLL marked on the body. The eye bolt features a threaded shank and is suitable for overhead lifting, anchoring, and load transfer in industrial and marine environments.
- Size
- M6-M64
- Material
- Super carbon steel
- Finish
- Zinc Plated. Self-Colored
- Packing
- Cartons or Gunny Bags and then on Pallets
- Catalogue Family
- Eye Bolts and Eye Nuts
- Certificates
- EN 10204 3.1 material test certificate on request
CAD files are supplied on request via WhatsApp or email rather than published for open download.
Key Benefits
What DIN 580 Eye Bolt Gives You
- Complies with DIN 580 standard for consistent performance and interchangeability across international rigging systems
- Zinc-plated finish provides corrosion resistance in humid and outdoor environments
- 4:1 safety factor ensures reliable performance under dynamic and static loads
- WLL stamped directly on the body for traceability and field verification
- Super carbon steel construction offers high tensile strength and impact resistance
- Self-colored packaging with cartons or gunny bags reduces handling damage and improves shipment clarity
- Available in a wide range of sizes from M6 to M72X6 to match various load and mounting requirements
Application Scenarios
Where DIN 580 Eye Bolt Is Used
- Overhead lifting in construction and infrastructure projects where a secure anchor point is needed
- Marine and offshore rigging where exposure to saltwater demands corrosion-resistant hardware
- Industrial manufacturing setups requiring fixed anchor points for hoisting and positioning
- Transport and logistics operations using tie-downs and lifting points on trailers and cargo
- Oil and gas field operations where reliable, stamped load limits are required for safety compliance
- Steel fabrication and assembly lines using eye bolts as temporary lifting or alignment points
Who It Is For
Buyers This Product Is Built For
- Procurement engineers sourcing standardized rigging hardware for multi-site projects
- Marine equipment suppliers specifying corrosion-resistant lifting points for vessel and dock systems
- Construction contractors needing certified eye bolts for crane lifts and structural rigging
- Logistics operators specifying durable lifting hardware for trailer and container handling
- Industrial plant maintenance teams requiring traceable, stamped load limits for safety audits
Problems It Solves
Problems This Product Removes
- Need for a single, certified eye bolt that meets DIN 580 standards without sourcing from multiple suppliers
- Risk of using non-compliant or unmarked eye bolts that lack traceability and safety margins
- Corrosion damage in outdoor or marine environments due to untreated steel components
- Uncertainty in load capacity when relying on unverified or non-stamped hardware
- Inconsistent sizing and fit across different brands leading to assembly delays and safety issues
- Lack of standardized packaging that protects hardware during long-distance shipping
Technical Features
Technical Features
- Drop-forged super carbon steel body with heat treatment for strength and durability
- Threaded shank with DIN 580 thread profile and pitch for compatibility with standard nuts
- Zinc-plated surface finish for corrosion resistance in harsh environments
- WLL and CE-marking stamped on the body for compliance and field identification
- Standard 4:1 design factor with minimum breaking load four times the safe working load
- Self-colored packaging in cartons or gunny bags, then palletized for export
- Available in sizes from M6 to M72X6 with documented dimensions and weight per piece
Specifications
DIN 580 Eye Bolt Specifications
Values published in the Kailipu catalogue for this item. Anything not listed is available on request.
| Standard | DIN 580 |
|---|---|
| Material | Super carbon steel |
| Safety Factor | 4:1 |
| Surface Finish | Zinc plated |
| Marking | WLL, CE-marking |
| Size Range | M6 to M72X6 |
| Weight Range | 0.06 kg to 49.1 kg per piece |
| WLL Range | 0.08 T to 40 T |
| Packaging | Cartons or gunny bags, then on pallets |
Full size table on request. The catalogue publishes a full dimension and capacity table for this item. Ask on WhatsApp or by email and we will send it as a PDF.
Materials
Materials And Finishes
- Super carbon steel for high tensile strength and forging integrity
- Zinc plating layer to resist rust and environmental degradation
- Threaded shank with DIN 580 specification for compatibility with standard nuts and fittings
- Stainless steel or galvanized nuts recommended for use with zinc-plated eye bolts in corrosive environments
Manufacturing Process
How This Product Is Made
1Raw material selection and inspection for carbon steel quality
2Drop forging of the eye bolt blank to achieve uniform grain structure
3Heat treatment to enhance strength and toughness
4Thread cutting and machining to DIN 580 dimensions
5Zinc plating process for corrosion protection
6WLL and CE-marking stamping on the body
7Final inspection and packaging in cartons or gunny bags, then palletized
Quality Control
Quality Control On Every Batch
- Proof load testing on production batches to verify the 4:1 safety factor
- Dimensional tolerance checking against DIN 580 specifications
- Breaking strength validation to confirm minimum breaking load is four times WLL
- Visual inspection for plating defects, thread damage, and marking clarity
- Material Test Certificate to EN 10204 3.1 supplied with orders
- Third-party inspection accepted at the Qingdao warehouse before shipment
Customisation
Customisation Options
- Custom tonnage stamping on the body for specific load requirements
- Private label and OEM marking available for brand-specific packaging
- Custom surface finish options including zinc plating, powder coating, or electrophoretic black
- Custom packing configurations including carton count and pallet layout
- Sizes and thread types built to a supplied drawing or specification
Compare
How It Compares With The Alternatives
An honest read on where this pattern wins and where another one would serve you better.
| Alternative | Honest Trade Off |
|---|---|
| Non-DIN eye bolt | DIN 580 ensures dimensional consistency and compliance with international rigging standards, reducing risk of fit and load failure |
| Unplated carbon steel | Zinc plating extends service life in humid or marine environments but may require replacement in high-abrasion settings |
| Galvanized eye bolt | Zinc plating offers better appearance and thinner coating; galvanizing provides thicker protection but may affect thread fit |
| Stainless steel eye bolt | Stainless steel resists corrosion better but has lower tensile strength and higher cost; carbon steel with zinc plating offers better strength-to-cost ratio |
Use Guide
How To Use And Inspect DIN 580 Eye Bolt
- Verify the stamped WLL matches the calculated load before use; do not exceed the rated capacity
- Inspect the zinc plating for damage before each use; replace if coating is worn or exposed steel is visible
- Use a compatible nut and washer to prevent thread galling and ensure even load distribution
- Avoid side loading the eye bolt; keep the load aligned with the axis of the shank
- Do not reuse eye bolts that show deformation, thread damage, or loss of marking
- Store in dry conditions to prevent premature corrosion, especially if not in immediate use
Related Products
Often Ordered With This Item
Browse The Category
Industries Using This Product
Sourcing Support For This Product
Answers
DIN 580 Eye Bolt FAQ
What standard does this eye bolt follow?
It complies with DIN 580, ensuring dimensional consistency and compatibility with international rigging systems.
Is the WLL stamped on the body?
Yes, the safe working load is stamped directly on the body for traceability and field verification.
What is the safety factor?
A standard 4:1 design factor is applied, meaning the minimum breaking load is four times the stated safe working load.
Can you provide a Material Test Certificate?
Yes, a Material Test Certificate to EN 10204 3.1 is supplied with each order upon request.
What finish is applied?
The standard finish is zinc plating. Custom finishes such as powder coating or electrophoretic black are available on request.
How are they packed for export?
They are packed in cartons or gunny bags, then palletized. Custom packing configurations can be arranged to suit your warehouse or retail needs.
What sizes are available?
Sizes range from M6 to M72X6. The full size table includes dimensions d1, d2, d3, d4, e, h, k, l, weight, and WLL for each size.
