Cone Crusher Parts
High manganese bowl liners, concaves and mantles cast to suit the cone crushers already running in your pit.
Every Cone Crusher Casting We Make
A cone liner set decides how much your crusher produces before the next shutdown. We cast concaves, bowl liners and mantles in seven manganese grades from Mn13 to Mn22Cr3, machine them on vertical lathes up to Ø3.4 m, and ship them ready to seat. Thousands of cone patterns are already finished, so a repeat set skips pattern making altogether.

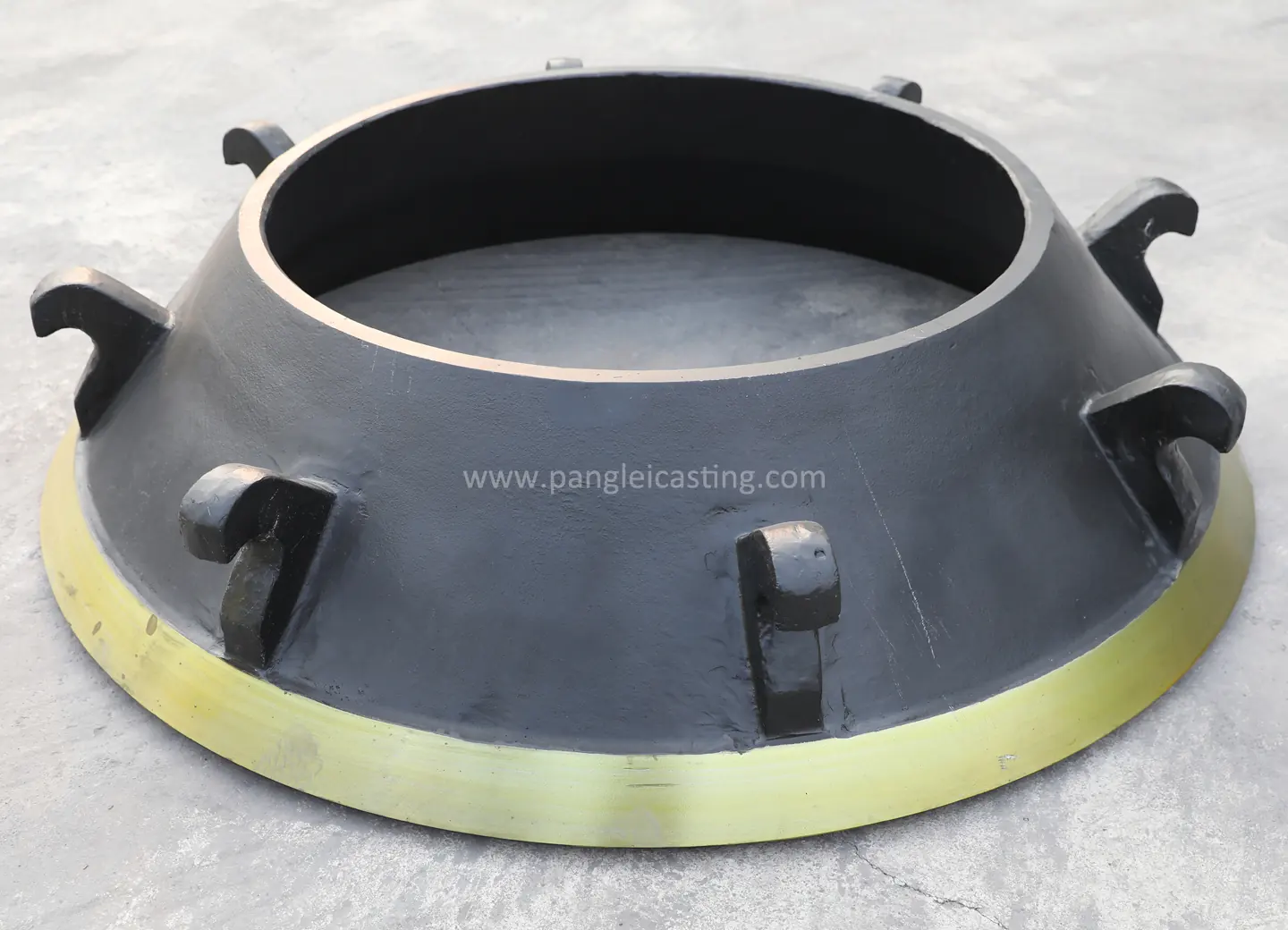

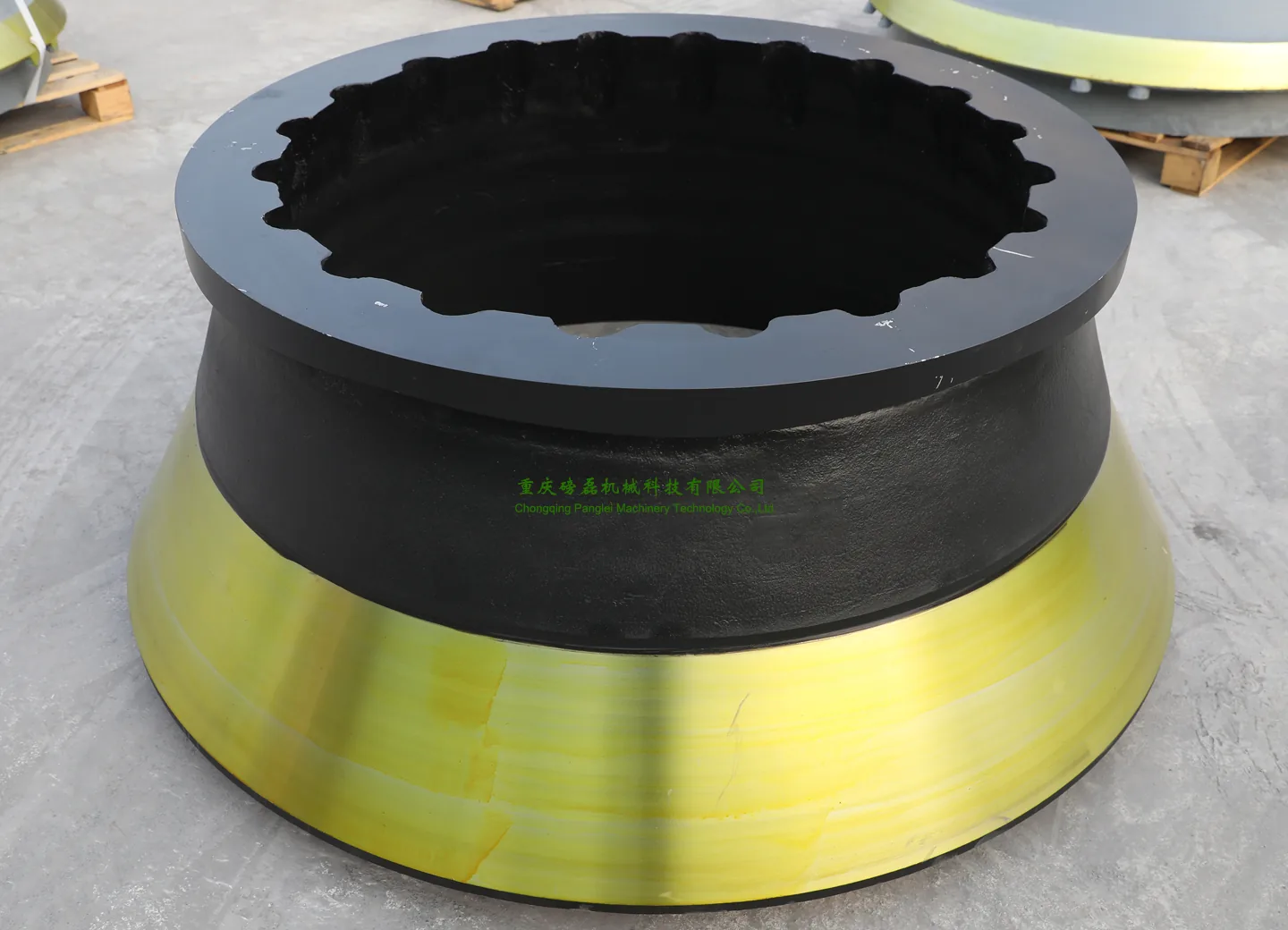

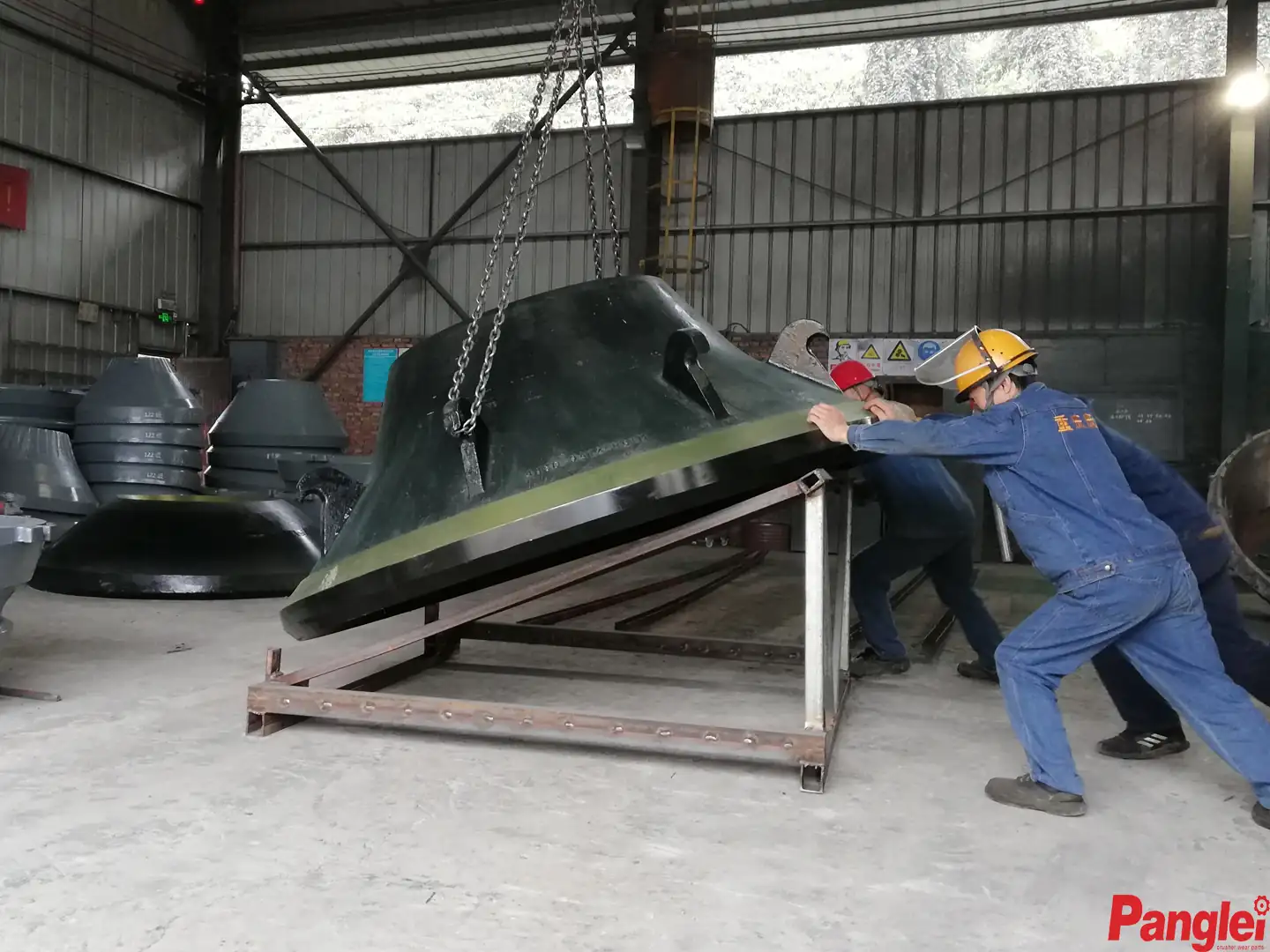

Bowl Liner And Concave
The fixed half of the cone crushing chamber, cast in seven manganese grades
View Part →
Cone Crusher Mantle
The moving cone face, cast to gyrate against your existing bowl liner
View Part →
Cone Crusher Burning Ring
The sacrificial ring that protects the head above the mantle
View Part →
Cone Crusher Feed Plate
Distributes feed evenly into the crushing chamber and takes the impact instead of the head
View Part →
Cone Crusher Rim Liner
Protects the bowl rim above the concave from feed washing
View Part →
Spider Cap And Spider Arm Shield
Shields the spider bearing and arms from the feed passing over them
View Part →
Main Shaft Assembly
Complete main shaft assemblies supplied to European customers
View Part →
Shaft Sleeves And Bushings
Bearing surfaces machined to the fit the crusher was designed around
View Part →
Cone Crusher Mounting Plate
The seating plate between the crusher frame and the wear components above it
View Part →What Usually Goes Wrong And What We Do About It
- Liner sets that arrive weeks after the crusher is already down
- Backing compound gaps caused by liners that were never machined to the seat
- Manganese that work hardens too slowly for abrasive feed and rounds off early
- OEM pricing on a consumable that is replaced several times a year
The Operations That Buy These Castings
- Quarry and aggregate producers running secondary and tertiary cones
- Crusher dealers and spare part distributors carrying liner stock
- Mining contractors crushing hard abrasive ore
- Mobile plant operators who cannot wait on OEM lead times
Part Types In This Family
- Bowl liners and concaves
- Mantles
- Burning rings
- Feed plates
- Rim liners
- Spider caps and spider arm shields
- Mounting plates
- Main shafts
- Shaft sleeves
- Bushings
Materials Available
- Mn13
- Mn13Cr2
- Mn18
- Mn18Cr2
- Mn20Cr3
- Mn22Cr2
- Mn22Cr3
Why These Castings Come From This Foundry
Seven manganese grades so the alloy matches your feed, not a catalogue default
Vertical lathes to Ø3.4 m for seat machining on large bowl liners
Chemical analysis and dimensional inspection report issued with every order
Ready-made patterns for common HP, GP, CH, CS and standard head models
Typical Application Scenarios
- Secondary and tertiary crushing in hard rock quarries
- Aggregate production for concrete and asphalt plants
- Copper and iron ore crushing circuits
- Mobile cone plants on demolition and recycling sites
Makes And Models We Already Hold Patterns For
This list is not exhaustive. Anything not shown is cast from your drawing or your worn part, including on-site 3D scanning where the component cannot be removed.
| Make Or Series | Models |
|---|---|
| Terex and Powerscreen | 900, 1500 (1500 Maxtrak), 1000 Maxtrak, 1000SR, C1540, 24" Gyrasphere |
| Metso HP and MP | HP100, HP200, HP300, HP350, HP400, HP500, HP700, HP800, HP4, HP5, MP800, MP1000 |
| Metso GP and Omnicone | Omnicone 1560, GP100, GP100S, GP200, GP200S, GP300, GP300S, GP11F, GP11M, GP250, GP500, GP500S, GP550 |
| Symons type | 3FT, 4FT, 4¼FT, 5½FT and 7FT standard head and short head |
| Sandvik | H2800, H4800, CH660, CH870, CH880, CS420, CS430, CS440, CS660, S2800 |
High Manganese Grades And Their Chemical Specification
Chemistry is verified from a sample taken during melting and adjusted before pouring. Samples are retained for at least three years.
| Material | Mn % | C % | Si % | P % | S % | Cr % |
|---|---|---|---|---|---|---|
| Mn13 | 11-14 | 1.00-1.45 | 0.3-1.0 | < 0.06 | < 0.04 | — |
| Mn13Cr2 | 11-14 | 1.15-1.25 | 0.3-0.8 | < 0.06 | < 0.04 | 1.5-2.5 |
| Mn18 | 17-19 | 1.2-1.3 | 0.3-0.8 | < 0.06 | < 0.04 | — |
| Mn18Cr2 | 17-19 | 1.2-1.3 | 0.4-0.9 | < 0.06 | < 0.04 | 1.5-2.5 |
| Mn20Cr3 | 19-21 | 1.2-1.3 | 0.3-0.8 | < 0.06 | < 0.04 | 2.5-3 |
| Mn22Cr2 | 21-23 | 1.1-1.4 | 0.3-0.8 | < 0.06 | < 0.04 | 1.5-2.5 |
| Mn22Cr3 | 21-23 | 1.1-1.4 | 0.3-0.8 | < 0.06 | < 0.04 | 2.5-3 |
Where These Parts Are Working Today
Quarrying And Aggregates
Wear parts for the crushing circuits behind every aggregate plant
See Applications →
Mining And Ore Processing
Crusher and mill wear parts for copper, iron ore and hard rock operations
See Applications →
Recycling And Demolition
Wear parts built for feed that contains steel as well as stone
See Applications →
OEM Equipment Manufacturers
Contract casting for crusher and roller machine builders
See Applications →Parts From This Family We Have Already Supplied

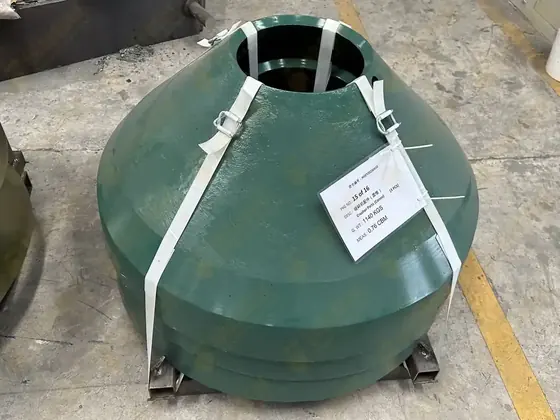

Repeat Cone Sets 603/9052 And 603/9106 For A Pegson 1000 Maxtrak
603/9052 bowl liner and 603/9106 mantle in Mn22Cr2
Read The Case →

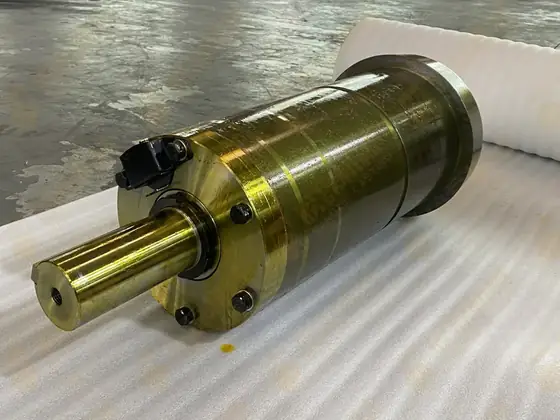

B962S3000A/V Main Shaft Assembly For A European Customer
B962S3000A/V main shaft assembly in Alloy steel
Read The Case →

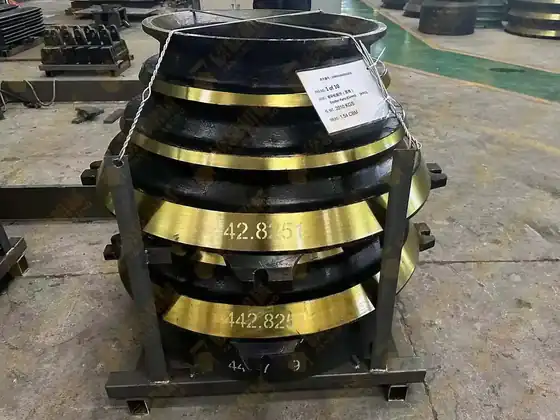

A Mixed Delivery Of Bowl Liners Mantles And Customised Castings To Europe
442.7989-02, 442.8251-02, 442.7225-02, 442.8417-02, 442.7379.90 and customised castings in Manganese grades to order
Read The Case →Cone Crusher Parts Questions
Which manganese grade should I order for my cone liners?
Mn13 and Mn13Cr2 suit general aggregate work. Mn18 and Mn18Cr2 are the usual choice for harder feed because the higher manganese work hardens further before it deforms. Mn20Cr3 and Mn22Cr3 go into the most abrasive duties. Tell us the rock type and the wear life you get now and we will recommend a grade.
Can you cast liners for a model that is not on your list?
Yes. The list shows models we already hold patterns for. For anything else we work from your drawing, or from your worn part, which we can 3D scan on your site or in our pattern shop.
Do the liners come machined ready to fit?
Yes. After rectifying and polishing, castings are machined strictly to drawing on our vertical lathes so the liner seats correctly, and a dimensional inspection report is issued before packing.
Are these OEM parts?
No. They are OEM-equivalent parts cast and warranted by PangLei. Manufacturer names and part numbers are used for identification only and we have no association with the OEM.
Send Your Cone Crusher Part Numbers
Tell us the machine model and the part numbers. We will check them against the pattern inventory and confirm the material grade before quoting.
