Repeat Cone Sets 603/9052 And 603/9106 For A Pegson 1000 Maxtrak

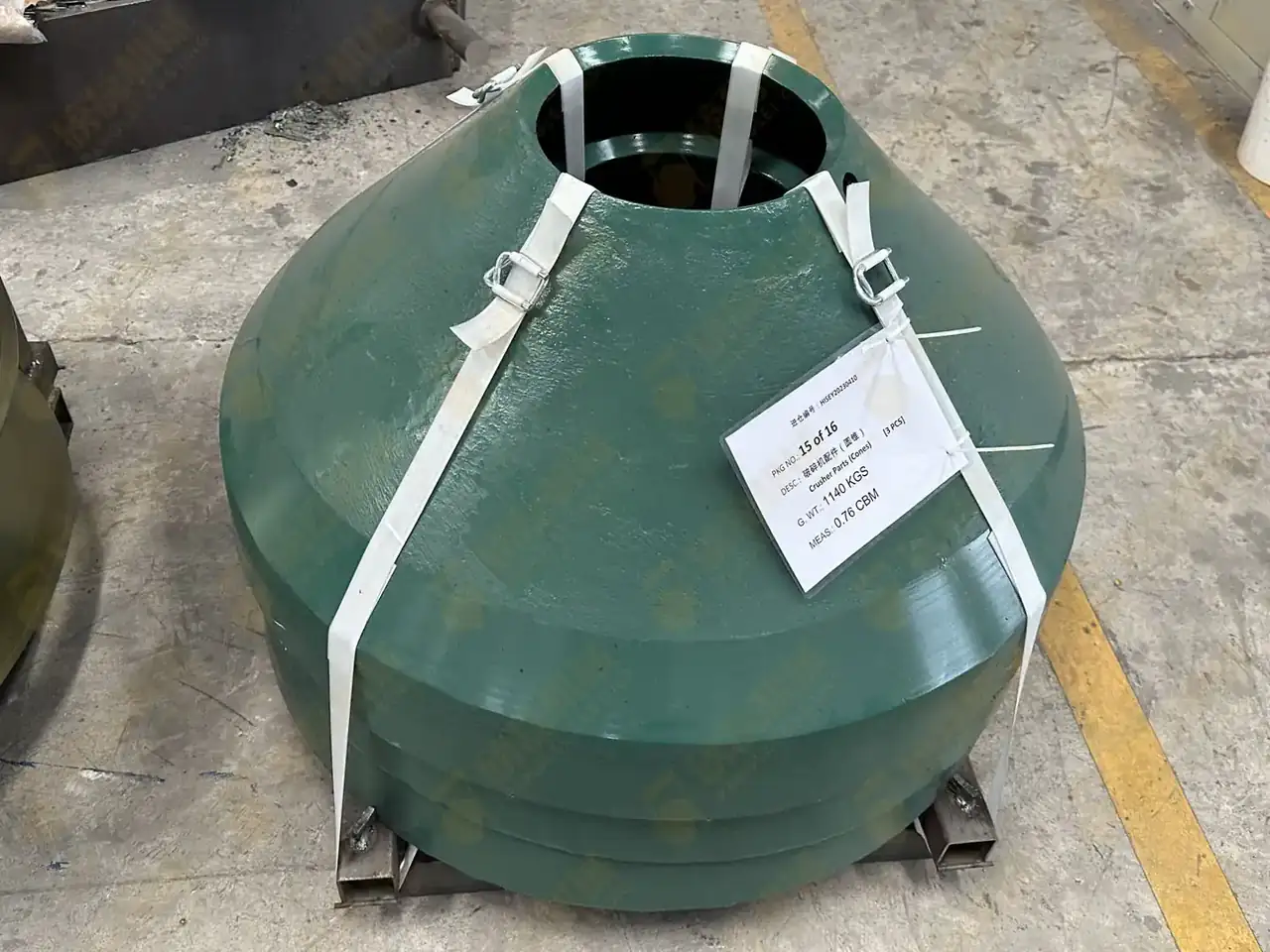

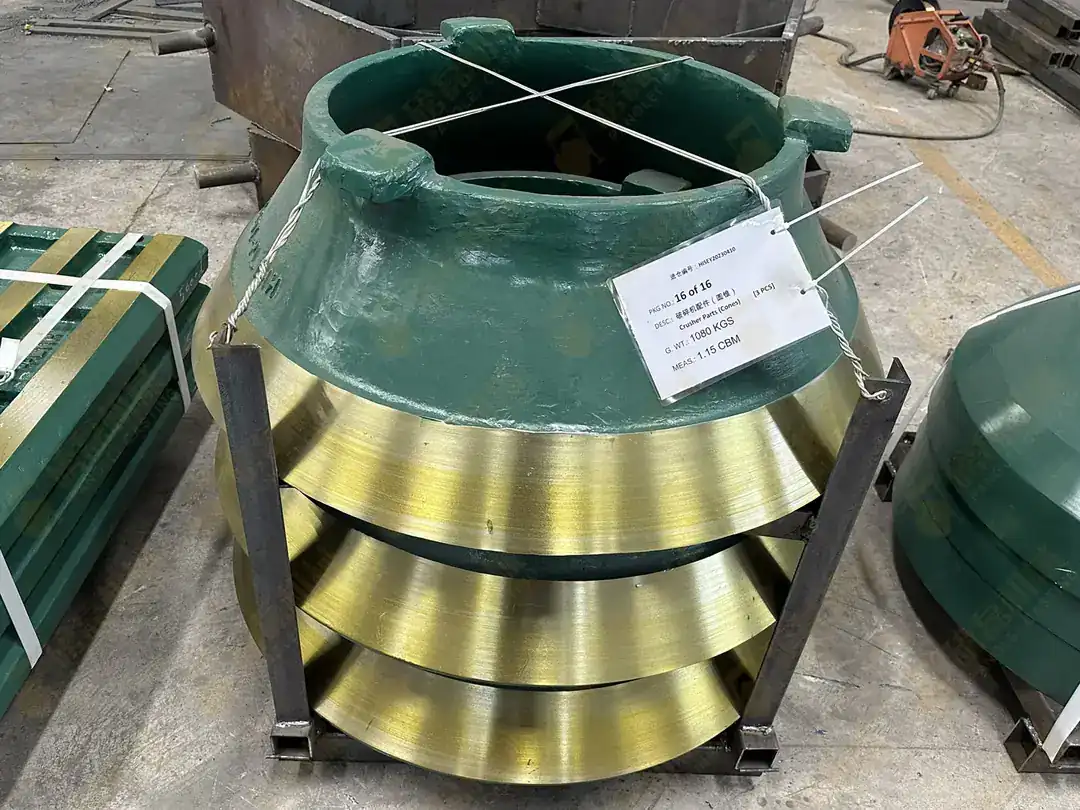

603/9052 bowl liner and 603/9106 mantle in Mn22Cr2, supplied to a european aggregate producer.
What The Customer Was Dealing With
A European customer running a Pegson / Powerscreen 1000 MXT Maxtrak cone crusher needed a liner supply they could order repeatedly without re-qualifying the parts each time.
Customer Pain Points
- Liner sets that vary between deliveries
- The bowl liner and mantle wearing at different rates
- Re-checking fitment on every order
What We Did About It
We supply the 603/9052 bowl liner and 603/9106 mantle as a set in Mn22Cr2, from a held pattern, cast from the same heat so the pair wears together. The customer now buys this set from us regularly.
How The Order Ran Through The Works
Patterns held in inventory for both parts
Bowl liner and mantle cast from the same Mn22Cr2 heat
Samples retained for three years for traceability
Seat faces machined on vertical lathes
Dimensional inspection report issued for each set

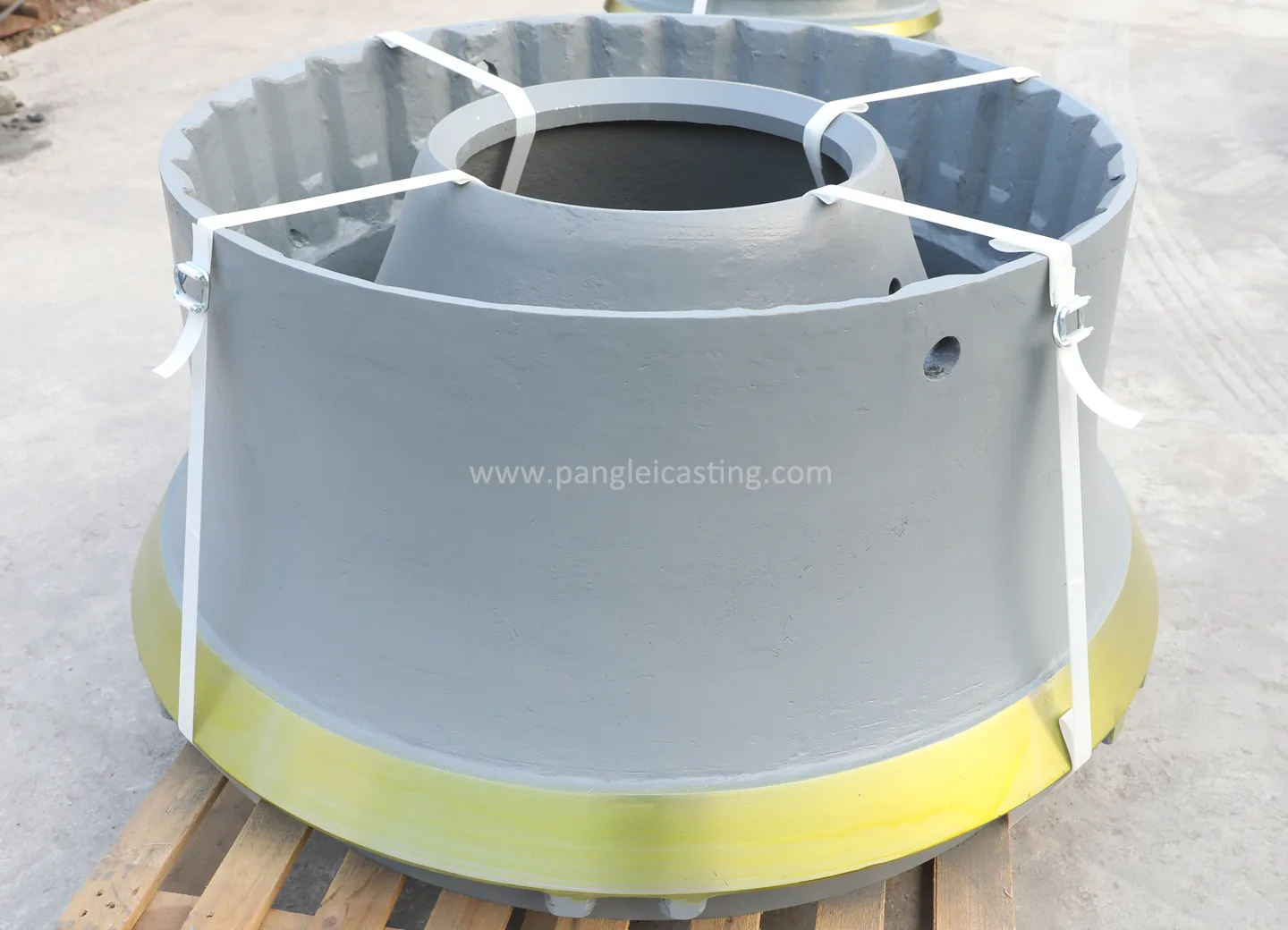

Packed on steel pallets for the sea route
What Was Delivered
This client in Europe buys the set regularly. Castings by our foundry have proven to perform on markets worldwide.
Customer Benefit
A repeat set from a held pattern and a consistent grade removes the qualification work from every subsequent order.
Quality Control
Chemical analysis was carried out on the heat and the sample retained for at least three years. A dimensional inspection report was issued after machining and before packing.
The Parts Behind This Case
Bowl Liner And Concave
The fixed half of the cone crushing chamber, cast in seven manganese grades
View Part →
Cone Crusher Mantle
The moving cone face, cast to gyrate against your existing bowl liner
View Part →
Cone Crusher Burning Ring
The sacrificial ring that protects the head above the mantle
View Part →About This Case
Can you name the customer?
No. We describe the customer by region and by sector — in this case a european aggregate producer — because customer names are commercially confidential. The part numbers and materials are real.
Can you repeat this part for us?
Yes. The pattern for 603/9052 bowl liner and 603/9106 mantle is held, so a repeat order goes straight into moulding with no pattern cost and no pattern lead time.
What documentation came with this order?
Chemical analysis and a dimensional inspection report, as on every order. Additional testing is carried out in our own laboratory when specified at order stage.
Do you supply parts to this region regularly?
Yes. Europe is a regular destination for us, and around 60% of our output is exported, directly by us or through other companies here in China.
Have A Similar Part To Source
Send the part number or a photograph with the main dimensions. We will check the pattern inventory and tell you what the lead time really is.
