Ready Made Pattern Inventory
Thousands of finished patterns already on the shelf
What This Covers
Pattern making is the slowest and most expensive part of a first casting order. We hold thousands of ready-made patterns, so parts we have cast before go straight into production — no pattern cost, no pattern lead time.
How The Work Actually Runs
Every stage below happens inside our own works, under one QC department, which is why a problem found at one stage can still be corrected at the next.
Identification
Give us the part number, the machine model, or a photograph. We check it against the pattern inventory.
Confirmation
If the pattern is held, we confirm the geometry and the material grade with you before moulding.

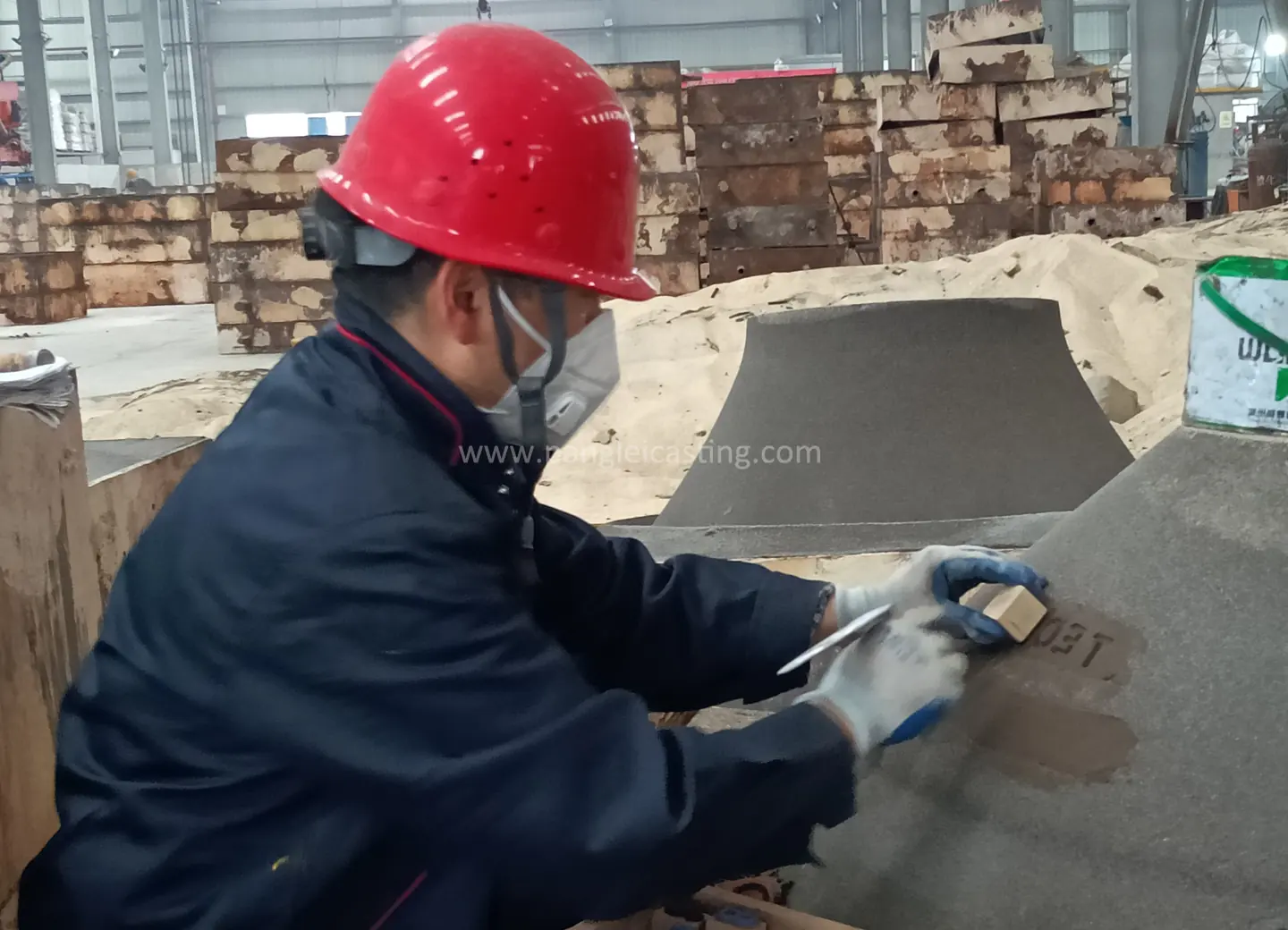

Direct to production
Moulding starts immediately. The pattern-making stage is skipped entirely.
Melting
Poured from 5 t intermediate frequency furnaces using bottom-pouring ladles, with samples taken for analysis.
Heat treatment
Quenched within 30 seconds of furnace withdrawal in the 2,000 m³ stirred pool.
Machining and inspection
Machined to drawing, dimensionally inspected and packed on steel pallets.
Equipment That Makes This Possible
- 5 t intermediate frequency furnace × 2 sets
- Maximum casting weight up to 10 tonnes
- 2,000 m³ heat treatment pool with underwater circulating and stirring system
- Vertical lathe × 12 sets — Ø3.4 m × 1, Ø2.5 m × 2, Ø2 m × 3, Ø1.6 m × 5, Ø1.25 m × 1
- Casting Process Simulation System (CPSS)
- German-made OBLF direct-reading spectrometer
Parts Most Often Handled This Way
Bowl Liner And Concave
The fixed half of the cone crushing chamber, cast in seven manganese grades
View Part →

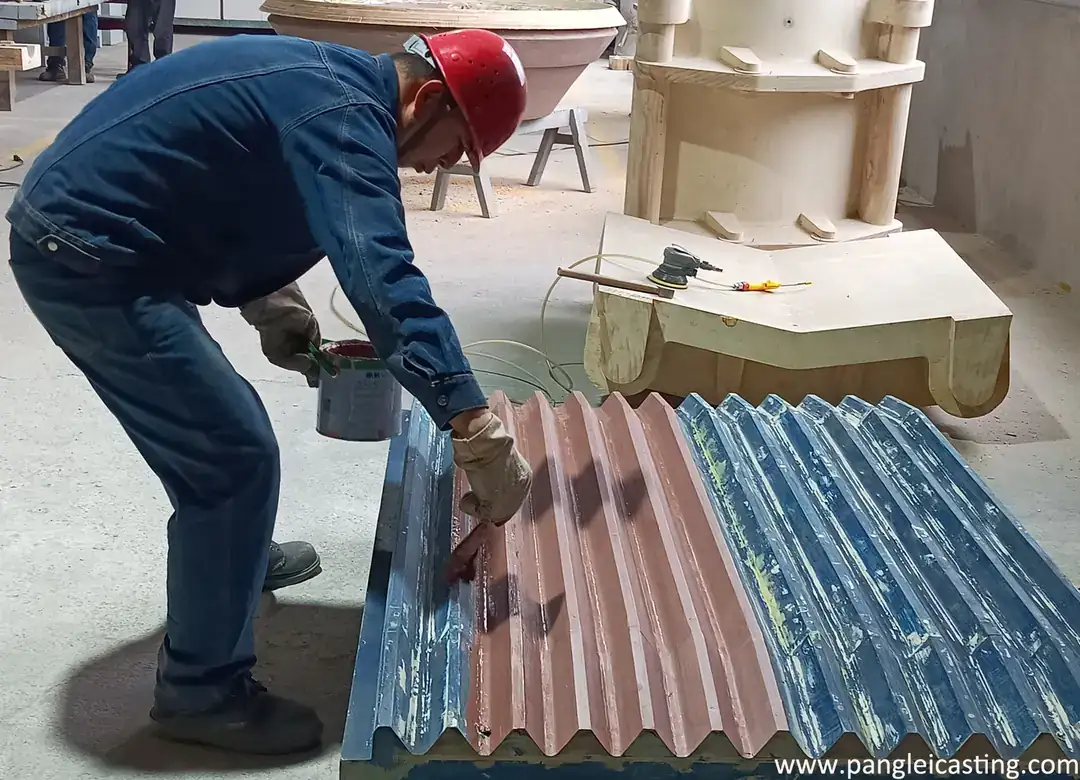

Fixed Jaw Plate
Stationary jaw dies in high manganese, from 600 × 400 machines up to a C200
View Part →
Impact Crusher Blow Bar
Manganese, chrome, ceramic-insert and TIC-insert bars for horizontal shaft impactors
View Part →
VSI Rotor Tip
High chromium tips held finished in stock so the rotor is never the reason you stop
View Part →Ready Made Pattern Inventory Questions
How do I find out whether you hold my pattern?
Send the part number or the machine model with your enquiry. The model lists on each category page show much of what we already cover.
Does holding the pattern reduce the price?
It removes the pattern-making cost from the order, which on a first-time part is a significant part of the total.
What if you do not hold it?
We quote the pattern with the job and build it in our own shop, working from your drawing, sample or a 3D scan.
Put Ready Made Pattern Inventory To Work On Your Part
Send what you have — a drawing, a part number, or a photograph of the worn component with its main dimensions. We will tell you what is possible before anyone ships anything.
