VSI Crusher Parts
The complete rotor wear package for vertical shaft impactors, held finished in stock to cut downtime.
Every VSI Crusher Casting We Make
Vertical shaft impactors — sand-making machines — sit at the end of the crushing circuit, so when the rotor wear package runs out the whole plant stops shaping product. We cast feed tubes, trail plates, cavity wear plates, distributor plates, rotor tips, upper and lower wear plates and the bolts that hold them, and we keep finished VSI parts on the shelf so an order placed on a Thursday can be collected the following Monday.
VSI Rotor Tip
High chromium tips held finished in stock so the rotor is never the reason you stop
View Part →
VSI Distributor Plate
Splits the feed evenly to the rotor ports so tips wear at the same rate
View Part →
VSI Feed Tube
Guides feed down onto the distributor without wearing into the rotor housing
View Part →
VSI Cavity Wear Plate
Lines the crushing cavity where material leaving the rotor lands
View Part →
VSI Upper And Lower Wear Plates
Rotor top and bottom protection supplied as a matched set with the tips
View Part →

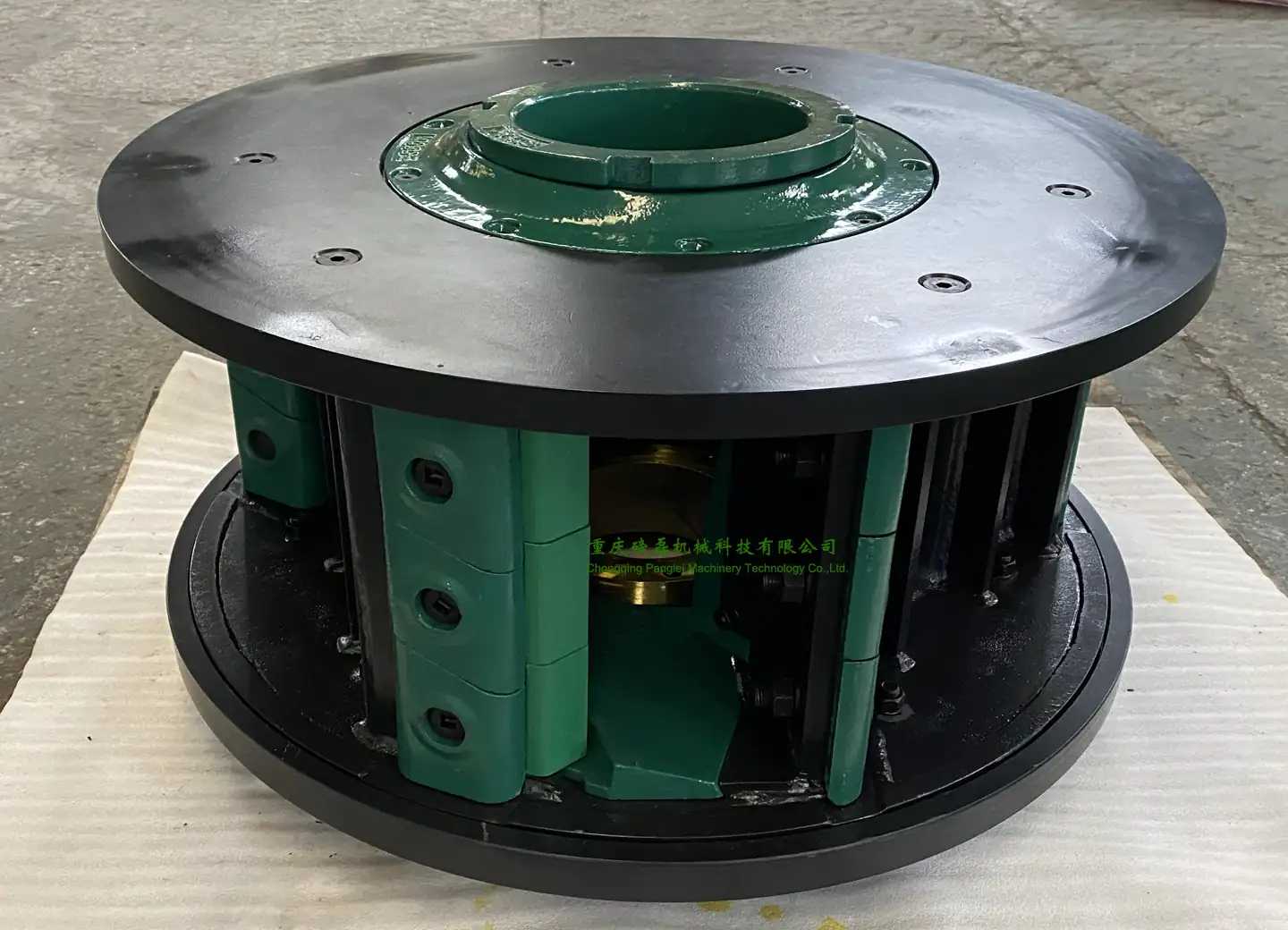

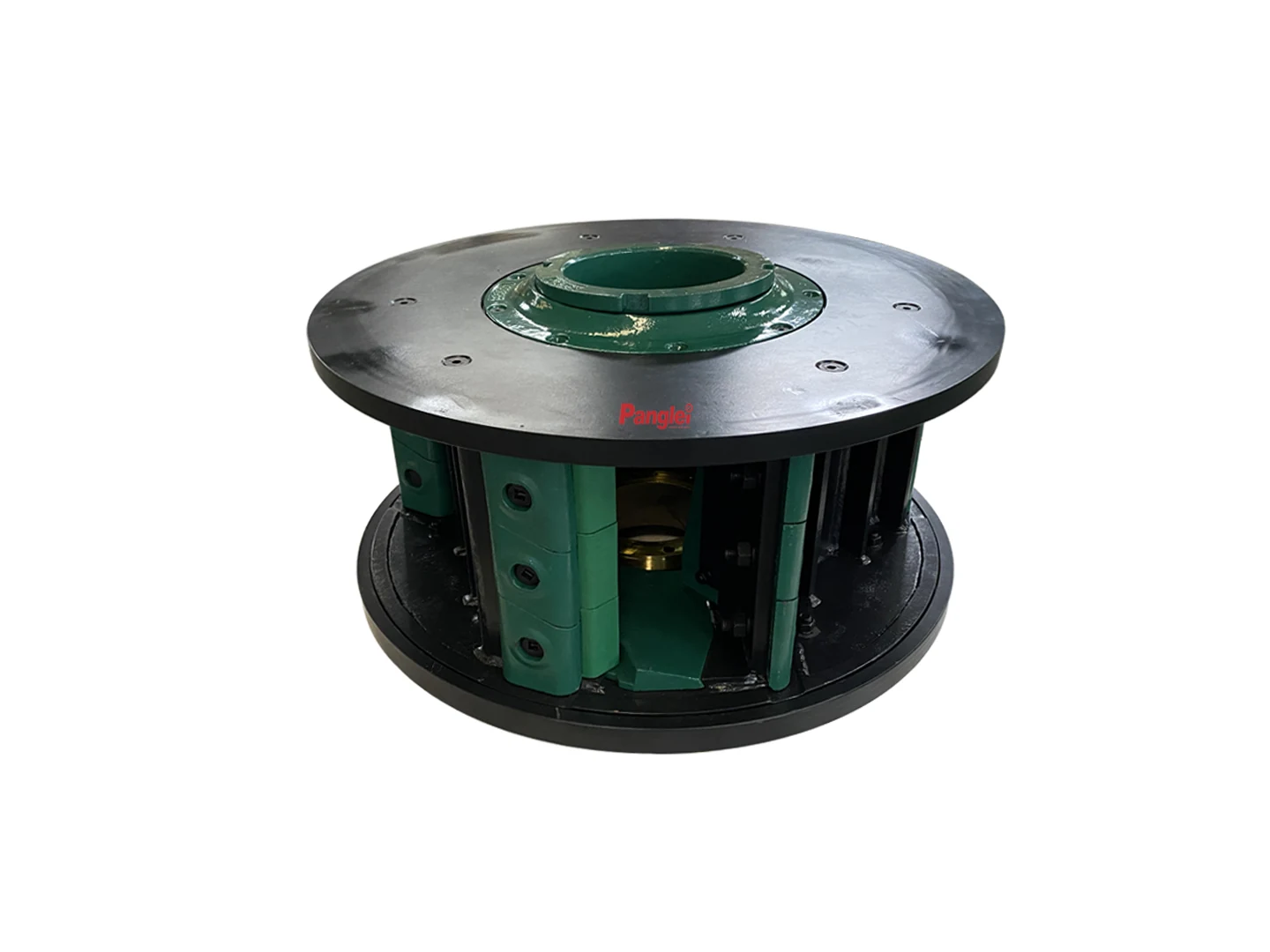

VSI Rotor Body And Frame
Complete rotor bodies for Barmac type and CV series machines
View Part →What Usually Goes Wrong And What We Do About It
- A rotor that goes out of balance because one tip wore faster than the rest
- Distributor plates worn through, letting feed bypass the rotor ports
- Whole rotor rebuild kits assembled from several suppliers with different wear rates
- Downtime waiting on a consumable that should be a stock item
The Operations That Buy These Castings
- Manufactured sand producers running VSI at the end of the circuit
- Aggregate plants shaping product for concrete specification
- Quarries running Barmac type and CV series machines
- Dealers holding VSI rotor kits for rental fleets

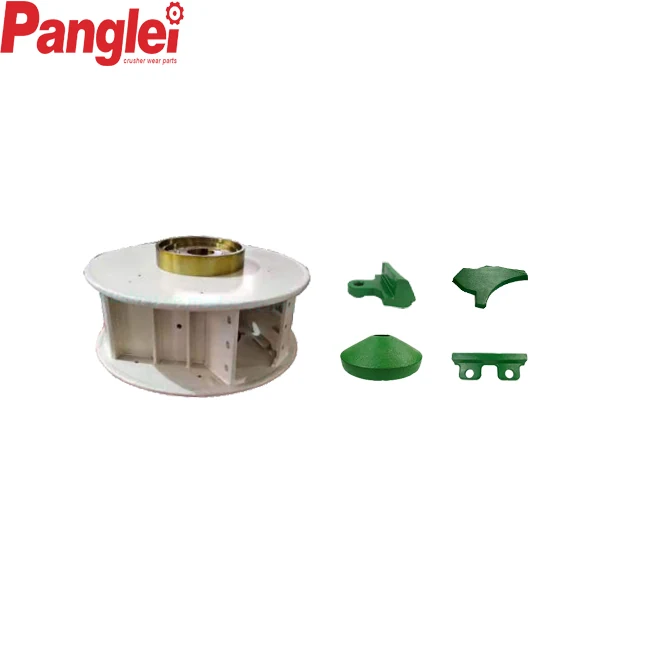

Part Types In This Family
- Rotor tips
- Distributor plates
- Feed tubes
- Cavity wear plates
- Upper and lower wear plates
- Trail plates
- Rotor bodies and frames
- Bolts
Materials Available
- High chromium white cast iron Cr15, Cr25, Cr30
- Austenitic manganese steel
- Alloy steel of various grades
Why These Castings Come From This Foundry
Complete rotor wear package cast in one foundry, so the set wears evenly
Finished VSI parts held in stock for fast despatch
Rotor bodies and frames available alongside the wear items
Tips and plates matched to the rotor port geometry, not to a nominal size
Typical Application Scenarios
- Manufactured sand production from quarry fines
- Final stage shaping of concrete aggregate
- Reducing flakiness in asphalt aggregate
- Closed circuit tertiary crushing
Makes And Models We Already Hold Patterns For
This list is not exhaustive. Anything not shown is cast from your drawing or your worn part, including on-site 3D scanning where the component cannot be removed.
| Make Or Series | Models |
|---|---|
| Metso Barmac B series | B6150SE, B7150SE, B9100SE |
| CV series | CV117, CV129, CV215, CV216, CV217, CV218, CV228, CV229 |
Where These Parts Are Working Today
Parts From This Family We Have Already Supplied
VSI Crusher Parts Questions
How fast can you ship VSI parts?
We keep finished VSI parts in stock. On one recent European order the customer confirmed on 18 July and their agent collected from our warehouse on 21 July.
Should the whole rotor wear package be changed at once?
It usually should. Mixing new tips with part-worn plates leaves the rotor unbalanced and the new parts wear unevenly, which is why we cast and supply the package as a set.
Do you make the rotor body itself, not only the wear parts?
Yes. Rotor bodies and frames are cast alongside the wear items for Barmac type and CV series machines.
Which material is used for rotor tips?
Rotor tips are normally cast in high chromium white iron for abrasion resistance. Where the feed carries tramp material a manganese or alloy steel option can be discussed.
Send Your VSI Crusher Part Numbers
Tell us the machine model and the part numbers. We will check them against the pattern inventory and confirm the material grade before quoting.
