KlearLaser Cabinet Pulse Laser Cleaning Machine — 300W–1500W Pulsed Industrial
Between a portable cleaner and a full CW industrial system there is a gap: work that needs more than 500W of pulsed energy, all day, on parts where heat input still matters — hardened dies, machined castings, thin structural members, anything that will be measured after cleaning.
Power 300W–1500WMode Pulsed fibreCooling Air or water cooledFormat Cabinet
The problem it solves
Between a portable cleaner and a full CW industrial system there is a gap: work that needs more than 500W of pulsed energy, all day, on parts where heat input still matters — hardened dies, machined castings, thin structural members, anything that will be measured after cleaning.
How this machine answers it
This is the pulsed answer at industrial duty. 300W–1500W inside a sealed cabinet with air or water cooling, a 0–145 mm continuously adjustable scan range at up to 10 m/s, and eight dual-axis scanning modes. Because it is pulsed rather than continuous, energy arrives in short bursts and the part stays cool — so the same machine that strips a coating can also clean a mould cavity without touching the tool steel.
Key features
- Enclosed cabinet housingBuilt for 24/7 duty in a factory environment, not for a demo bench.
- 300W–1500W pulsedPrecision retained at power levels usually reserved for CW machines.
- 2–500 ns adjustable pulse widthTune energy per pulse to the coating and the substrate.
- Scan up to 10 m/s0–145 mm continuously adjustable scan range, dual-axis, 8 modes.
- Field lens options210 mm standard, with 160 / 254 / 330 / 420 mm available for different working distances.
- Air or water coolingSpecified to match your duty cycle and ambient conditions.
- Production-line readyLong fibre and screen control make integration with a cell or line straightforward.
Typical applications
- Medium to large rust and paint removal on steel structures
- Industrial oxide and coating stripping
- Mould and die precision cleaning
- Automotive and machinery component preparation
- Shipyard and bridge maintenance
- High-volume production line cleaning
Related applications
Specifications
Published parameters for the 300W cabinet pulse configuration.
| Parameter | Specification |
|---|---|
| Average laser power | 300W (300W–1500W range available) |
| Laser working mode | Pulsed fibre |
| Pulse width | 2–500 ns adjustable |
| Power adjustment range | 10–100% |
| Power supply instability | <5% |
| Scanning range (L×W) | 0–145 mm continuously adjustable, dual-axis, 8 scanning modes |
| Scanning speed | Up to 10 m/s |
| Field lens focal length | 210 mm (optional 160 / 254 / 330 / 420 mm) |
| Main unit weight (incl. cleaning head) | 77 kg |
| Cleaning head weight | <1.25 kg |
| Control method | Screen control |
| Power supply | AC220V ±10%, 50/60 Hz adapter (DC48V output) |
| Operating temperature | 5°C–40°C |
| Operating humidity | <80% RH |
| Cooling mode | Air or water cooling (configuration dependent) |
Configurations outside the values shown are built to order. Confirm the exact specification with us before purchase.

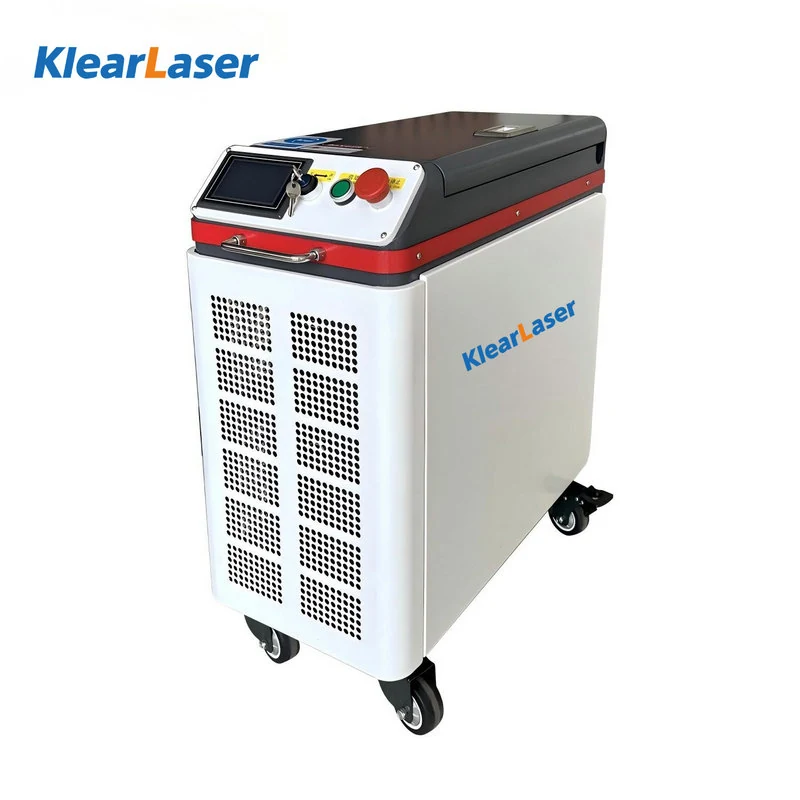

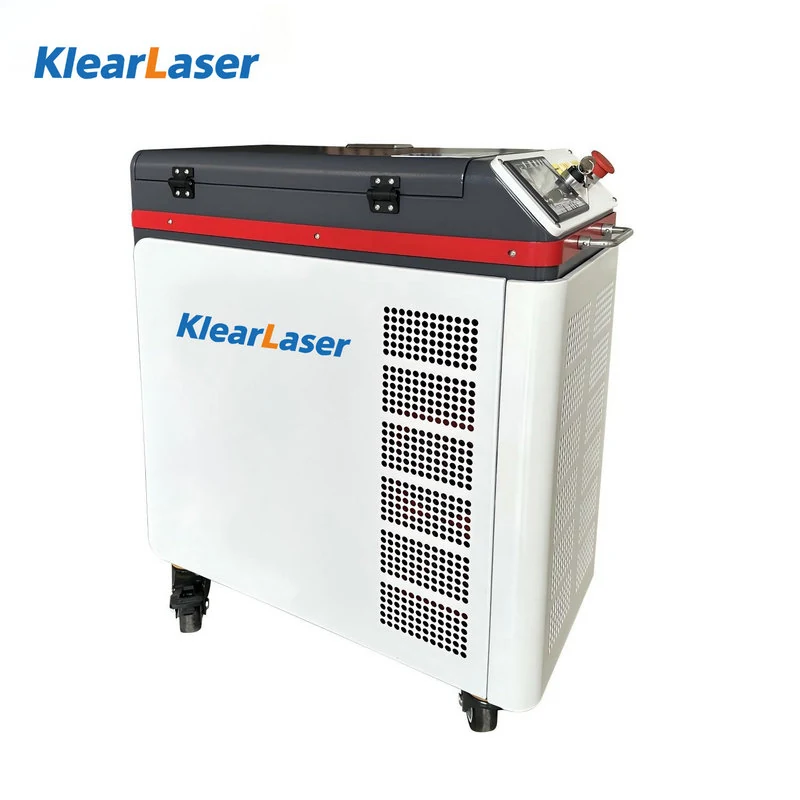

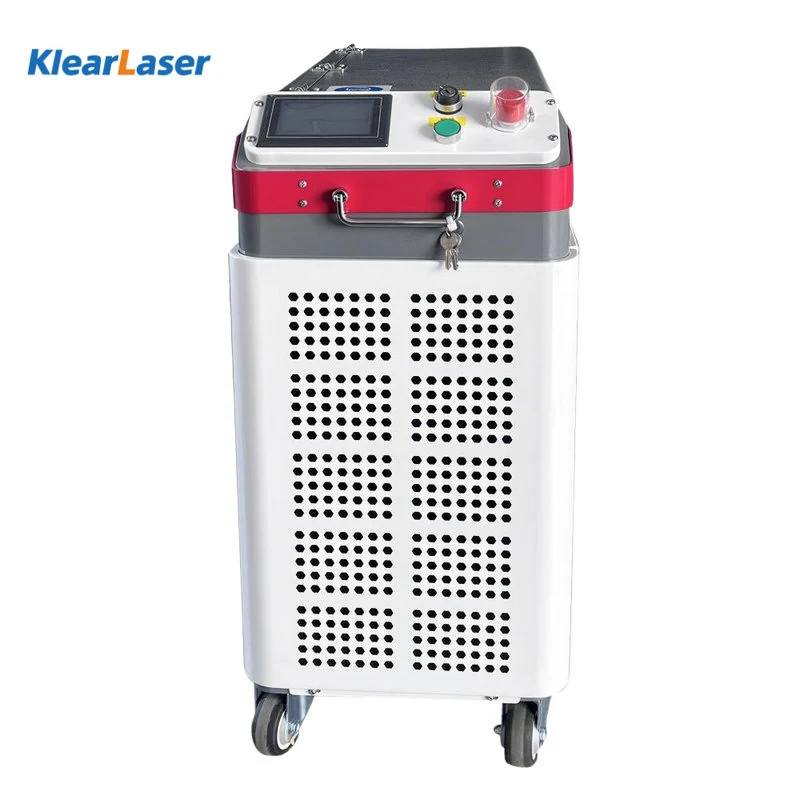

The machine
Photographs of this model, its accessories and its packing.
Questions about the Cabinet Pulse Laser Cleaning Machine
Pulsed or continuous wave — how do I choose?
Pulsed for precision and anything where the substrate matters: moulds, thin sections, delicate surfaces, parts that get measured afterwards. Continuous wave for heavy rust and paint over large areas where speed dominates. If the part is expensive and the layer is thin, buy pulsed.
Can it be integrated into a production line?
Yes. The long fibre and screen control are designed for fixed or semi-mobile installation in a cell. Tell us the cycle time and part handling and we will quote the configuration.
Does 1500W pulsed damage the substrate?
Pulsed energy is delivered in nanosecond bursts, so average heat input stays low even at high power. Parameters are set per material — and we prove them on your sample before you buy.
What warranty applies?
One to two years on core components including the laser source and fibre, with 24-hour remote support and video troubleshooting.
