KlearLaser Cabinet Continuous Laser Cleaning Machine — 1000W–6000W High-Power CW
Hull plate, bridge steel, pipeline sections, wind-turbine towers: square metres, not square centimetres, covered in mill scale and heavy rust.
Power 1000W–6000WMode Continuous wave fibreCooling Water-cooledFormat Cabinet
The problem it solves
Hull plate, bridge steel, pipeline sections, wind-turbine towers: square metres, not square centimetres, covered in mill scale and heavy rust. Blasting these means containment, media handling and a disposal bill; at that scale, a 500W portable machine is simply the wrong tool.
How this machine answers it
Continuous-wave power removes the throughput ceiling. 1000W–6000W of CW fibre energy at 1075–1085 nm, water-cooled for sustained duty, delivered through a 5 m fibre to a head with a 200–500 mm scanning width. The cabinet is built to run all day and to be integrated with a line or a manipulator, so the cleaning rate matches the rest of the process rather than gating it.
Key features
- 1000W–6000W continuous waveHighest area rate in the range, for heavy rust, scale and thick coatings.
- Water coolingSustained output without thermal derating in a hot workshop.
- 200–500 mm scanning widthWide passes over plate and structure.
- 5 m fibre lengthThe cabinet stays put while the head reaches into the work.
- Three-phase industrial supply380V ±10%, ≤25 kW at full configuration — specified as factory plant, not an appliance.
- Automation readyCompatible with production lines and robot integration.
- Enclosed cabinetSafety, cooling and cable management in one housing for 24/7 use.
Typical applications
- Large-scale rust and paint removal on steel structures and ship hulls
- Industrial oxide and coating stripping in factories
- Heavy-duty maintenance of bridges, pipelines and wind turbines
- Automotive and aerospace component preparation
- Metal surface pre-treatment before coating or welding
- High-volume production line cleaning
Related applications
Specifications
Published parameters for the high-power CW cabinet configuration.
| Parameter | Specification |
|---|---|
| Supply voltage | Three-phase 380V ±10%, 50/60 Hz |
| Power consumption | ≤25 kW |
| Laser working mode | Continuous wave (CW) fibre |
| Centre wavelength | 1075–1085 nm |
| Pulse width | 160 ns |
| Power adjustment range | 10–100% (gradual adjustable) |
| Scanning range (width) | 200–500 mm |
| Field lens focal length | 1500 mm |
| Depth of focus | Approx. 5 mm |
| Fibre length | 5 m |
| Cooling mode | Water cooling |
| Dimensions | Approx. 1420 × 750 × 1220 mm |
| Overall weight | 240 kg |
| Weight of cleaning head | <2.2 kg |
| Ambient temperature | 0°C–40°C |
| Working humidity | ≤80% RH |
Configurations outside the values shown are built to order. Confirm the exact specification with us before purchase.

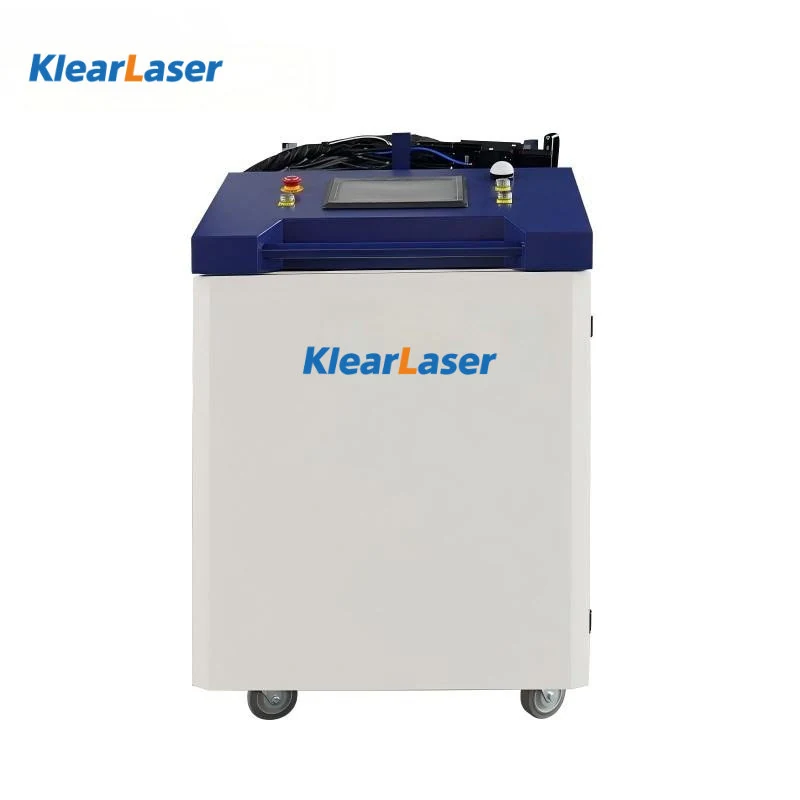

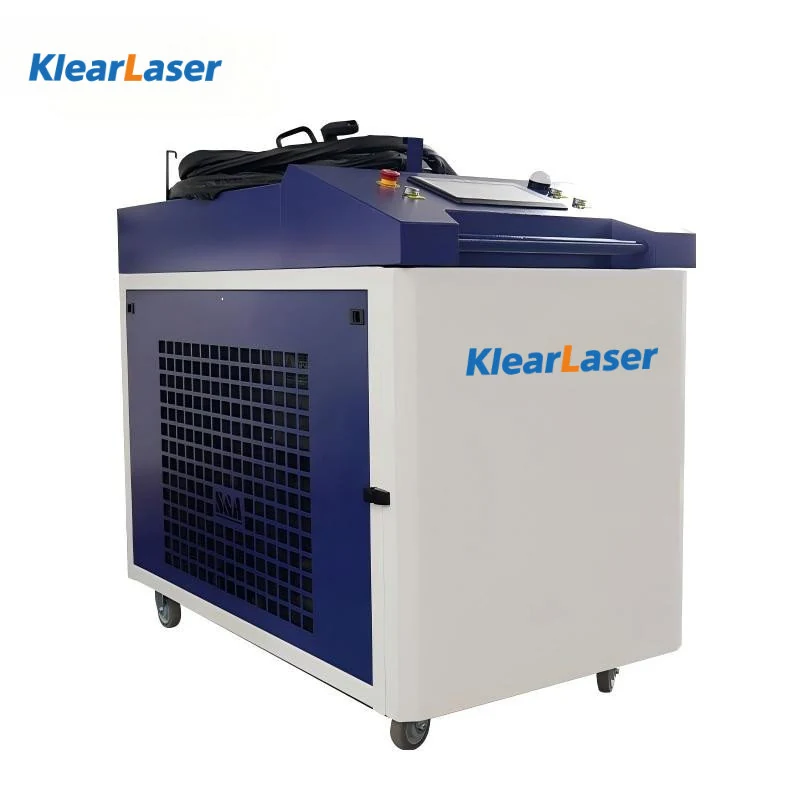

The machine
Photographs of this model, its accessories and its packing.
Questions about the Cabinet Continuous Laser Cleaning Machine
What supply do I need to install it?
Three-phase 380V ±10%, 50/60 Hz, and up to 25 kW at the top of the range. Confirm your incoming supply with us before ordering so we specify the right configuration and transformer if one is needed.
Why CW instead of pulsed at this power?
Continuous wave puts the most energy per second into the surface, which is what you want on mill scale and heavy rust over large areas. The trade-off is higher heat input — so for thin sections or precision parts, choose the pulsed cabinet instead.
Can it be mounted on a robot?
The cabinet is designed for integration with production lines and automation. Send us the cell layout and reach requirements and we will quote the configuration.
How long is delivery on a machine like this?
Standard models ship in 7–20 days after deposit; custom and automated systems run 25–60 days depending on complexity. You get an exact timeline once the configuration is confirmed.
