Warp Knitting Spare Parts
Tension Plates
Tension plates and tension springs in 12 to 26 pin formats.
What This Part Does On The Machine
Tension plates and their springs hold a steady drag on the warp sheet so every end enters the knitting zone at the same tension. If one end runs slack, that end knits a longer loop and the fault runs the length of the piece.

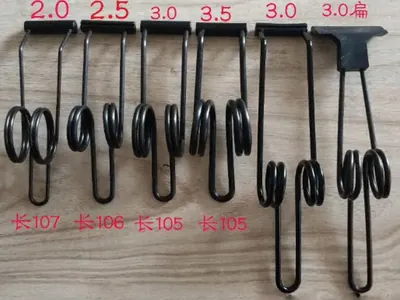

The range covers 12, 16, 20 and 26 pin tension springs, sets supplied with new rings, and plain tension plates in several forms.
Where It Is Used
Warp knitting machines and warp preparation.
What To Send With Your Enquiry
- Machine brand and machine type, for example Karl Mayer HKS or LIBA.
- Machine gauge in needles per inch, for example E28.
- The number cast or stamped on the old part, if it still reads.
- A photograph of the worn part next to a ruler.
- Quantity required and whether this is a trial or a running order.
Category At A Glance
| Parts listed | 14 |
|---|---|
| Pin counts | 12, 16, 20 and 26 pin springs |
| Supplied with | New rings, where the listing states it |
| Related parts | Spring and C type or U type tension rails |
Talk To Us About This Range
Send the machine details and a photograph and we will confirm the exact item.
Machine Applications
Related Guides
All 14 Parts In This Category
Listed with the reference used on the original Huaxiatex catalogue. Click any part for its full page.
Other Categories In Warp Knitting Spare Parts
Oil Bellows And Oil Cups
One, three and five layer oil bellows, cups, bases and rings.
22 parts listed
Needle Belts
Karl Mayer, KS and LIBA needle belts in 40 and 80 pin formats.
4 parts listed
Needle Covers
Needle covers by length, plus butterfly plates and press covers.
34 parts listed
Guide Bar Frames And Ball Bearings
Guide bar frames, ball bearings and machine axes.
28 parts listed
Flizers, Sliders And Rods
Flizers, sliders, connecting rods and rod bowls.
16 parts listed
Steel Wire Ropes
Steel wire ropes from 12cm to 30cm, wires, locks and hooks.
17 parts listed
Weft Hooks
Weft hooks listed by part number.
8 parts listed
Chain Links And Pattern Discs
Pattern discs and chain links for Karl Mayer and LIBA.
7 parts listedTension Plates FAQ
How do I count the pins?
Count the individual spring positions on the plate you removed. The listings on this site are grouped by that count.
Are rings included?
Some listings state that the springs come with new rings. Where that is not stated, ask before ordering.
How do I confirm the part fits my machine?
Send the machine brand, the machine type and the gauge together with a photograph of the old part. Where a number is cast or stamped on the part, send that as well. We match against the reference used on this site and confirm before anything is produced or shipped.
Can you supply a small quantity?
Yes. The original company statement is that quick delivery is done for any order, even for a small order size. Send the quantity you actually need and we will quote it.
Which countries do you ship to?
Products have been exported worldwide, covering Europe, Asia, Africa and the Middle East.
How do I get a price?
Send the part reference, the gauge and the quantity by WhatsApp or email to [email protected] and we will come back with a quotation.
Get A Quotation For Tension Plates
Send the machine brand, machine type, gauge and quantity. Quick delivery is done for any order, even for a small order size.
