Piezo Guides
Piezo Guides
Piezo jacquard guides from E12 to E32 and by type code.
What This Part Does On The Machine
A piezo guide carries a piezoelectric bender behind the guide blade. Applying a voltage deflects the blade one needle space to the left or the right, so a single guide bar can place a jacquard pattern without a mechanical pattern drive behind it.
The original description for this range states that piezo jacquard is an important electrical spare part for machines such as the double needle bar machine, RD6 and RD7, MSJ lace machines and terry towel warp knitting machines, that piezo guides are supplied for Karl Mayer machines including E14, E18, E24, E28 and E32, and that many types exist beyond the ones pictured.
Where It Is Used
Jacquard warp knitting machines, double needle bar machines, RD6 and RD7, MSJ lace machines and terry towel warp knitting machines.
What To Send With Your Enquiry
- Machine brand, machine type and gauge.
- The type code on the old guide, for example 24L or 28B.
- Number of guides required.
- A photograph of the connector end.
Category At A Glance
| Parts listed | 24 |
|---|---|
| Gauge range listed | E12, E14, E16, E18, E20, E22, E24, E26, E28, E30, E32 |

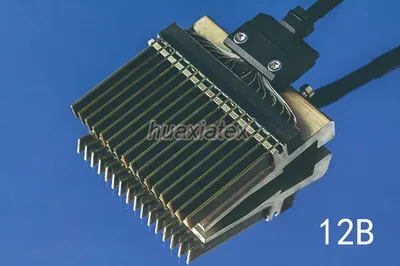

| Type codes listed | 12B, 12C, 12L, 18B, 18L, 20L, 24B, 24D, 24L, 24R, 28B, 28L, 32D |
| Machine brands | Karl Mayer and compatible |
Talk To Us About This Range
Send the machine details and a photograph and we will confirm the exact item.
Machine Applications
All 24 Parts In This Category
Listed with the reference used on the original Huaxiatex catalogue. Click any part for its full page.
How We Handle This Range
Gauge And Machine Matching
Getting the gauge right before anything is quoted or shipped.
Read MorePiezo Guides FAQ
What do the letters after the gauge mean?
They are the type codes used on the original catalogue listing, such as B, C, D, L and R. Quote the code from the old guide.
Is my type shown on the site?
Not necessarily. The original description states that there are many types and that not all of them could be photographed for the website, and invites orders for any of them.
Which machines use piezo guides?
The original description names double needle bar machines, RD6 and RD7, MSJ lace machines and terry towel warp knitting machines.
How do I confirm the part fits my machine?
Send the machine brand, the machine type and the gauge together with a photograph of the old part. Where a number is cast or stamped on the part, send that as well. We match against the reference used on this site and confirm before anything is produced or shipped.
Can you supply a small quantity?
Yes. The original company statement is that quick delivery is done for any order, even for a small order size. Send the quantity you actually need and we will quote it.
Which countries do you ship to?
Products have been exported worldwide, covering Europe, Asia, Africa and the Middle East.
How do I get a price?
Send the part reference, the gauge and the quantity by WhatsApp or email to [email protected] and we will come back with a quotation.
Get A Quotation For Piezo Guides
Send the machine brand, machine type, gauge and quantity. Quick delivery is done for any order, even for a small order size.
