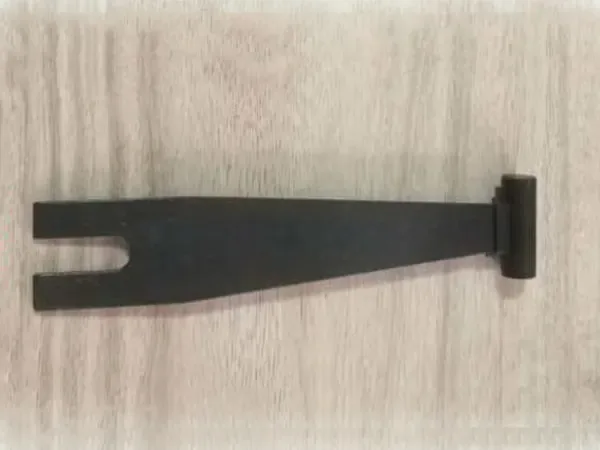

Tension Plate 1
Catalogue item No. 2703This item is listed in the Tension Plates range on the original Huaxiatex catalogue under the reference Tension Plate 1. No further written description was published for it. Send the machine brand, the machine type, the gauge and a photograph of the part you are replacing and the match will be confirmed before anything is shipped.
- Part ReferenceTension Plate 1
- CategoryTension Plates
- Catalogue ItemNo. 2703
- Supplied FromBeijing, China
Product Overview
This item is listed in the Tension Plates range on the original Huaxiatex catalogue under the reference Tension Plate 1. No further written description was published for it. Send the machine brand, the machine type, the gauge and a photograph of the part you are replacing and the match will be confirmed before anything is shipped.
Tension Plate 1 is listed on the Huaxiatex catalogue in the Tension Plates category, part of the Warp Knitting Spare Parts range. Tension plates and tension springs in 12 to 26 pin formats.
What This Part Does
Tension plates and their springs hold a steady drag on the warp sheet so every end enters the knitting zone at the same tension. If one end runs slack, that end knits a longer loop and the fault runs the length of the piece.
Where It Is Used
Warp knitting machines and warp preparation.
Who It Is For
Warp knitting mills and maintenance teams replacing worn tension plates, machine builders and rebuilders sourcing elements for refurbishment, and agents supplying spare parts to knitting plants. Products have been exported worldwide, covering Europe, Asia, Africa, Middle East.
Problems It Solves
- A machine standing because one worn part cannot be sourced quickly.
- A part with no readable number and no surviving parts book.
- Spare parts spread across several suppliers, each with its own minimum order.
- Replacement parts arriving in the wrong gauge because only the machine type was quoted.
Specification
| Part Reference | Tension Plate 1 |
|---|---|
| Category | Tension Plates |
| Catalogue Item | No. 2703 |
| Supplied From | Beijing, China |
Where a dimension is not published on the original catalogue it is not shown here. Send the old part or its measurements and it will be confirmed on the quotation rather than assumed.
Category Specification
| Pin counts | 12, 16, 20 and 26 pin springs |
|---|---|
| Supplied with | New rings, where the listing states it |
| Related parts | Spring and C type or U type tension rails |
How To Order
Send These Five Things
- Machine brand and machine type, for example Karl Mayer HKS or LIBA.
- Machine gauge in needles per inch, for example E28.
- The number cast or stamped on the old part, if it still reads.
- A photograph of the worn part next to a ruler.
- Quantity required and whether this is a trial or a running order.
Send them by WhatsApp on 0086-13693077663 or by email to [email protected]. WhatsApp is quicker for photographs; email is better where a written quotation has to reach a purchasing department.
Delivery
The company statement on delivery is that quick delivery is always done for any orders, even for a small order size. Tell us on the enquiry whether the machine is stopped, because an urgent single item and a routine restock are handled differently.
In This Category
Machine Applications
Related Guides
Related Parts In Tension Plates
Other items listed in the same category on the Huaxiatex catalogue.
Tension Plate 3
Listed in the Tension Plates range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2705
Tension Plate 4
Listed in the Tension Plates range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2706
Tension Plate 5
Listed in the Tension Plates range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2707
Tension Plate 6
Listed in the Tension Plates range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2708
Tension Plate 7
Listed in the Tension Plates range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2709
Questions About Tension Plate 1
Will Tension Plate 1 fit my machine?
Send the machine brand, the machine type and the gauge together with a photograph of the part you are replacing. The match is confirmed against the catalogue reference before anything is shipped.
What information do you need to quote?
The part reference or a photograph, the machine brand and type, the gauge, and the quantity. Sending all of it at once avoids a round trip.
How do I count the pins?
Count the individual spring positions on the plate you removed. The listings on this site are grouped by that count.
Are rings included?
Some listings state that the springs come with new rings. Where that is not stated, ask before ordering.
Can I order a single piece?
Yes. The company statement is that quick delivery is done for any order, even for a small order size.
Quote Tension Plate 1
Send the machine brand, machine type, gauge and quantity and we will come back with a price. Single pieces are accepted.
