Warp Knitting Machine Parts
Guide, Sinker And Tongue Assemblies

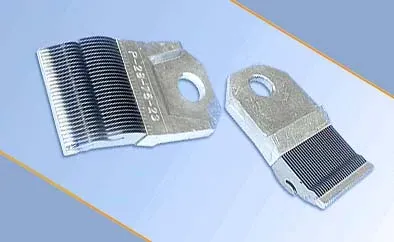

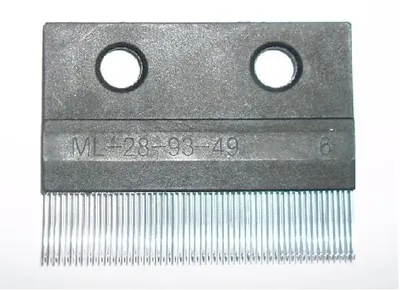

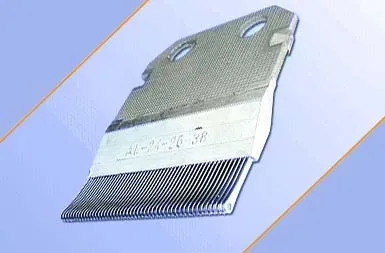

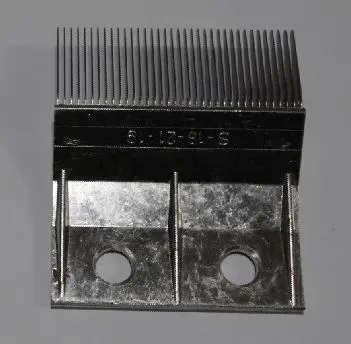

Complete cast assemblies of guides, sinkers and tongues.
What This Part Does On The Machine
A warp knitting machine forms every loop with three elements working against the needle: the guide lays the yarn across it, the sinker holds the fabric down while the needle rises, and the tongue closes the hook so the old loop can be cast off. On modern machines these elements are not fitted singly but cast into short assemblies that bolt onto the bar, so a worn section is changed as one block.
Because the three elements meet at the loop, a fault in one shows up as the same defect as a fault in the others. Streaks, dropped stitches and press-off usually mean the assembly has lost its setting, is bent, or has worn a groove where the yarn runs.
Where It Is Used
Tricot and raschel machines from Karl Mayer and LIBA, and other machines that use cast element assemblies rather than loose elements.
What To Send With Your Enquiry
- Machine brand and machine type, for example Karl Mayer HKS or LIBA.
- Machine gauge in needles per inch, for example E28.
- The number cast or stamped on the old part, if it still reads.
- A photograph of the worn part next to a ruler.
- Quantity required and whether this is a trial or a running order.
Category At A Glance
| Parts listed | 39 |
|---|---|
| Element type | Guide, sinker and tongue assemblies |
| Machine brands | Karl Mayer, LIBA and compatible |
| Gauge | Stated per item where the reference carries it |
Talk To Us About This Range
Send the machine details and a photograph and we will confirm the exact item.
All 39 Parts In This Category
Listed with the reference used on the original Huaxiatex catalogue. Click any part for its full page.
Other Categories In Warp Knitting Machine Parts
Raschel Latch Needles
Latch needles for raschel warp knitting machines.
23 parts listed
Compound Needles
Two-piece compound needles for high speed tricot machines.
19 parts listed
Tongue Units
Cast tongue units that close the needle hook.
30 parts listed
Guide Units
Cast guide units that lap the yarn around the needle.
52 parts listed
Pattern Needles And Jacquard Needles
Pattern and jacquard needles including the AF series.
15 parts listed
Sinker Units
Cast sinker units that hold the fabric during knock-over.
62 parts listed
Trick Plate Units
Cast trick plate units that guide and space the needles.
19 parts listed
Separators
Separator units that keep needles apart across the width.
12 parts listedGuide, Sinker And Tongue Assemblies FAQ
Do I have to change a whole bar?
No. These are supplied as the cast assemblies that bolt to the bar, so only the worn sections need replacing. If the bar itself is damaged, see the long bars category.
How do I know whether I need a guide, a sinker or a tongue unit?
The three sit in different bars. Send a photograph of the element you removed and the position it came from and we will confirm which category it belongs to.
How do I confirm the part fits my machine?
Send the machine brand, the machine type and the gauge together with a photograph of the old part. Where a number is cast or stamped on the part, send that as well. We match against the reference used on this site and confirm before anything is produced or shipped.
Can you supply a small quantity?
Yes. The original company statement is that quick delivery is done for any order, even for a small order size. Send the quantity you actually need and we will quote it.
Which countries do you ship to?
Products have been exported worldwide, covering Europe, Asia, Africa and the Middle East.
How do I get a price?
Send the part reference, the gauge and the quantity by WhatsApp or email to [email protected] and we will come back with a quotation.
Get A Quotation For Guide, Sinker And Tongue Assemblies
Send the machine brand, machine type, gauge and quantity. Quick delivery is done for any order, even for a small order size.
