Complete Catalogue
All Warp Knitting Machine Spare Parts
630 parts across 30 categories, listed with the same references as the original Huaxiatex catalogue. Every part has its own page and its own photograph.
Warp Knitting Machine Parts
The elements carried on the needle, guide, sinker and tongue bars. These are the parts that touch the yarn on every course, so they are the parts that wear, and the parts a mill replaces most often.
Guide, Sinker And Tongue Assemblies
Complete cast assemblies of guides, sinkers and tongues.
39 parts listed
Raschel Latch Needles
Latch needles for raschel warp knitting machines.
23 parts listed
Compound Needles
Two-piece compound needles for high speed tricot machines.
19 parts listed
Tongue Units
Cast tongue units that close the needle hook.
30 parts listed
Guide Units
Cast guide units that lap the yarn around the needle.
52 parts listed
Pattern Needles And Jacquard Needles
Pattern and jacquard needles including the AF series.
15 parts listed
Sinker Units
Cast sinker units that hold the fabric during knock-over.
62 parts listed
Trick Plate Units
Cast trick plate units that guide and space the needles.
19 parts listed
Separators
Separator units that keep needles apart across the width.
12 parts listed
Other Warp Knitting Parts
Threading combs, forged beams, meters, gears, tools and more.
54 parts listed
Long Bars
Needle, guide, knock-over and core needle bars in full length.
5 parts listedSelected Parts
Warp Knitting Spare Parts
Everything around the knitting elements: oil bellows and cups, needle covers and belts, bar frames and bearings, flizers and sliders, steel wire ropes, weft hooks, chain links and pattern discs.
Oil Bellows And Oil Cups
One, three and five layer oil bellows, cups, bases and rings.
22 parts listed

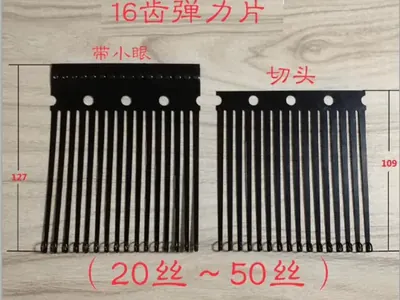

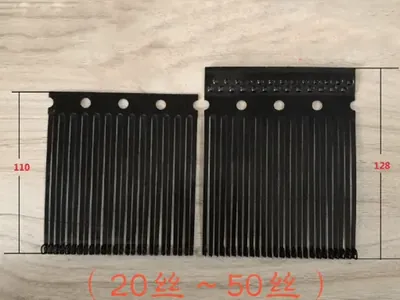

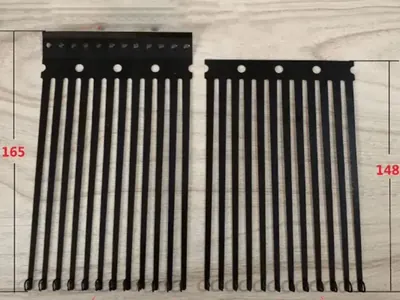

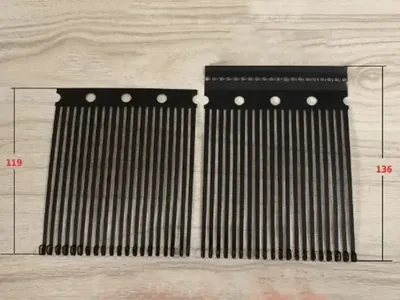

Tension Plates
Tension plates and tension springs in 12 to 26 pin formats.
14 parts listed

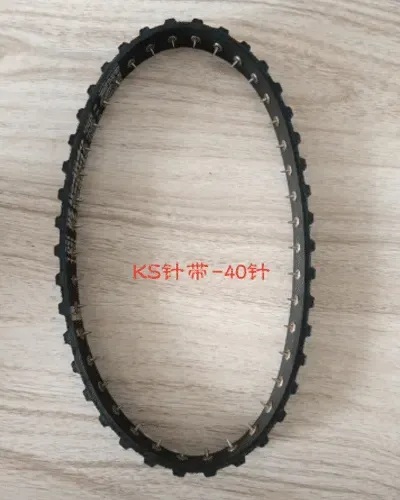

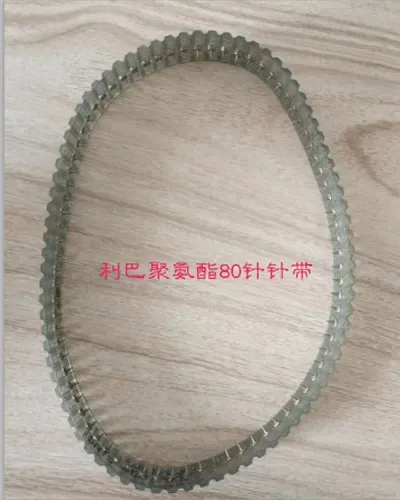

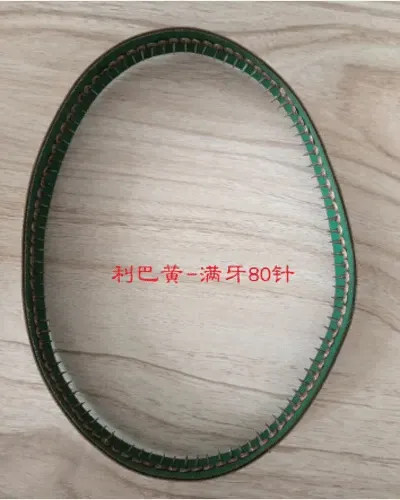

Needle Belts
Karl Mayer, KS and LIBA needle belts in 40 and 80 pin formats.
4 parts listed

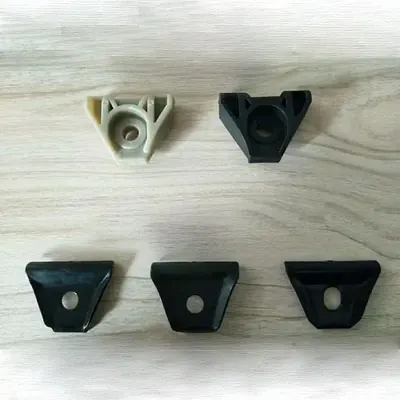

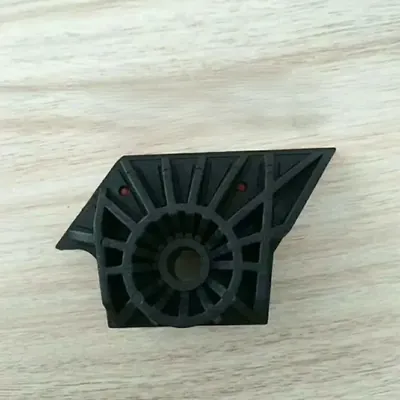

Needle Covers
Needle covers by length, plus butterfly plates and press covers.
34 parts listed

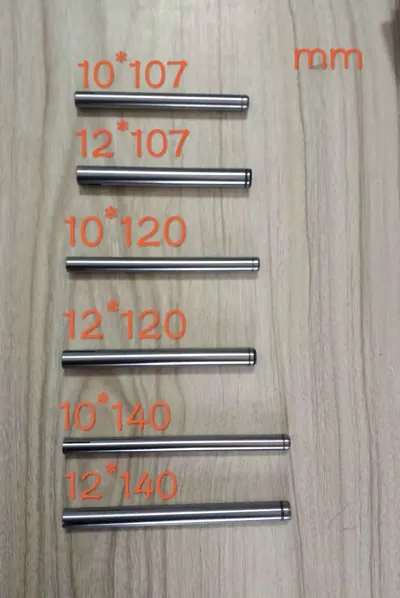

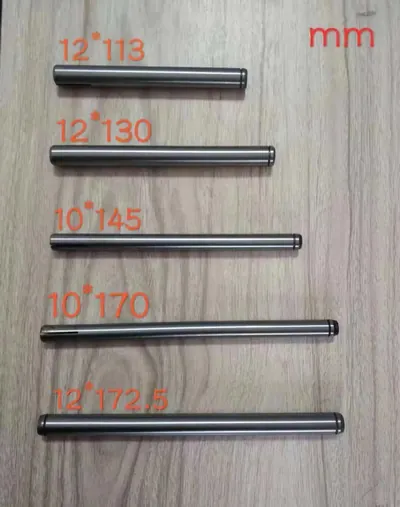

Guide Bar Frames And Ball Bearings
Guide bar frames, ball bearings and machine axes.
28 parts listed
Flizers, Sliders And Rods
Flizers, sliders, connecting rods and rod bowls.
16 parts listed

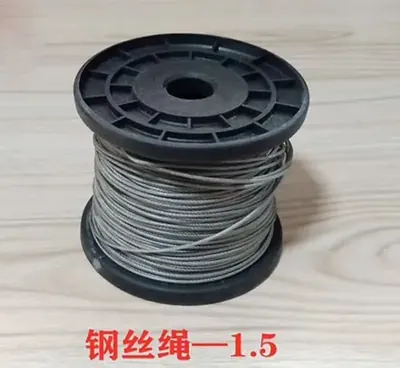

Steel Wire Ropes
Steel wire ropes from 12cm to 30cm, wires, locks and hooks.
17 parts listed
Weft Hooks
Weft hooks listed by part number.
8 parts listed

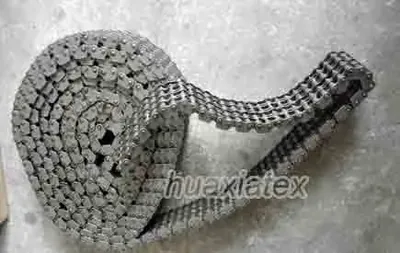

Chain Links And Pattern Discs
Pattern discs and chain links for Karl Mayer and LIBA.
7 parts listed
Latch Needle Bars
Latch needle bars for warp knitting machines.
1 parts listedSelected Parts
Elements And Pins
Guide, sinker, tongue and separator pins supplied loose, for shops that rebuild their own elements rather than replace a complete cast unit.
Guide Pins
Eyelet needles, guide needles, hole needles and loose pins.
19 parts listed
Sinker Pins
Loose sinker pins for rebuilding sinker units.
19 parts listed
Tongue Pins
Loose tongue pins in the C series and by thickness.
19 parts listed
Separator Pins
Separator needles by thickness, hole count and length.
19 parts listed
Other Pins
Chuck sleeves, ear plates, linings, baffles and teeth pins.
10 parts listedSelected Parts

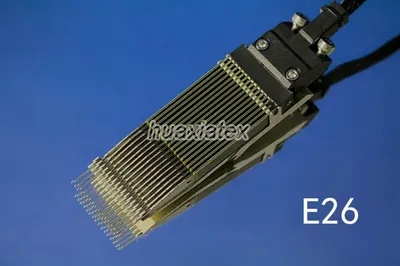

Piezo Guides
Piezo jacquard guides deflect a single guide electrically so the machine can place a pattern without a mechanical pattern drive. Supplied across the gauge range.
Selected Parts
Warping Machine Parts
Parts for the preparation stage: creels and package holders, yarn tensioners, broken yarn stop motions, fluff detectors and rollers.
Warping Machine Parts
Creels, stop motions, fluff detectors, rollers and holders.
20 parts listed

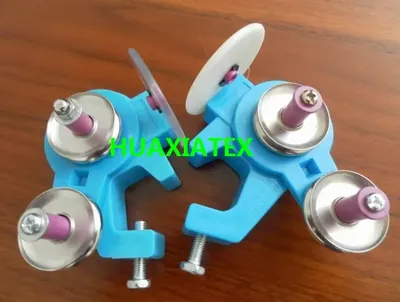

Yarn Tensioners
Yarn tensioners for warp knitting and warping machines.
18 parts listed
Roller Covering
Roller covering material for take-up and feed rollers.
1 parts listedSelected Parts
Frequently Asked Questions
How many parts are listed?
630 parts across 30 categories, taken from the original Huaxiatex catalogue.
Are all the products on the original site shown here?
Yes. Every product listed on the original catalogue appears on this site with its own page and its own photograph.
What if my part is not on the list?
The original site states that there are many types of some items and that not all could be photographed for the website, and invites orders for items that are not pictured. Send a photograph with the machine details.
How are the categories organised?
Into five ranges: warp knitting machine parts, warp knitting spare parts, elements and pins, piezo guides, and warping machine parts.
Cannot Find The Part On The List
Send a photograph of the worn part with the machine brand, machine type and gauge. Items that were never photographed for the catalogue can still be ordered.
