Warp Knitting Spare Parts
Oil Bellows And Oil Cups
One, three and five layer oil bellows, cups, bases and rings.
What This Part Does On The Machine
An oil bellows, also called an oil seal, is the concertina boot that keeps lubricating oil in the drive and dirt and lint out of it while the shaft or rod moves. On a warp knitting machine there are many of them, and they are consumable.

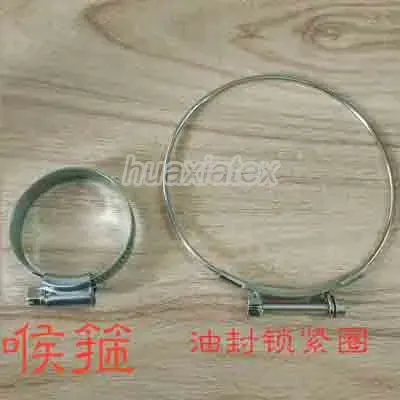

The range covers one, three and five layer bellows, bottle and hat shapes, straight and slanting bases in aluminium and other materials, locking rings, oil stoppers, oil shields, oil cups and oil window covers.
Where It Is Used
Karl Mayer and LIBA warp knitting machines.
What To Send With Your Enquiry
- Machine brand and machine type.
- Number of layers on the old bellows.
- Overall height and the diameter at both ends.
- A photograph of the old bellows next to a ruler.
- Quantity required.
Category At A Glance
| Parts listed | 22 |
|---|---|
| Layer counts | 1 layer, 3 layer and 5 layer bellows |
| Related parts | Bases, locking rings, oil stoppers, oil shields, oil cups, window covers |
| Machine brands | Karl Mayer, LIBA and compatible |
Talk To Us About This Range
Send the machine details and a photograph and we will confirm the exact item.
Machine Applications
All 22 Parts In This Category
Listed with the reference used on the original Huaxiatex catalogue. Click any part for its full page.
How We Handle This Range
Small Orders And Fast Delivery
A stopped machine is not a big order. It is an urgent one.
Read MoreConsolidated Spare Parts Supply
One source across elements, bars, lubrication, drive and patterning.
Read MoreOther Categories In Warp Knitting Spare Parts
Tension Plates
Tension plates and tension springs in 12 to 26 pin formats.
14 parts listed
Needle Belts
Karl Mayer, KS and LIBA needle belts in 40 and 80 pin formats.
4 parts listed
Needle Covers
Needle covers by length, plus butterfly plates and press covers.
34 parts listed
Guide Bar Frames And Ball Bearings
Guide bar frames, ball bearings and machine axes.
28 parts listed
Flizers, Sliders And Rods
Flizers, sliders, connecting rods and rod bowls.
16 parts listed
Steel Wire Ropes
Steel wire ropes from 12cm to 30cm, wires, locks and hooks.
17 parts listed
Weft Hooks
Weft hooks listed by part number.
8 parts listed
Chain Links And Pattern Discs
Pattern discs and chain links for Karl Mayer and LIBA.
7 parts listedOil Bellows And Oil Cups FAQ
How do I count the layers?
Count the concertina folds on the side of the old bellows. One, three and five layer types are all listed here.
Do I need the base as well?

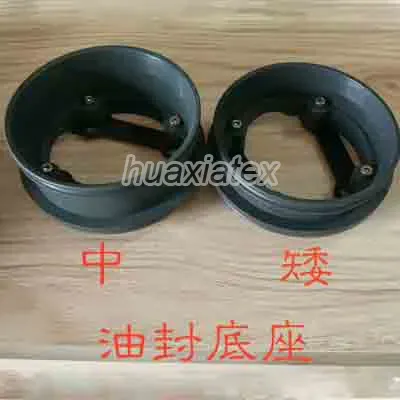

Only if the base is cracked or the wrong height. Bases are listed separately in high, low, slanting and aluminium forms.
How many should I stock?
Bellows are a running consumable. Most mills hold a set for the positions that fail most often rather than a full machine set.
How do I confirm the part fits my machine?
Send the machine brand, the machine type and the gauge together with a photograph of the old part. Where a number is cast or stamped on the part, send that as well. We match against the reference used on this site and confirm before anything is produced or shipped.
Can you supply a small quantity?
Yes. The original company statement is that quick delivery is done for any order, even for a small order size. Send the quantity you actually need and we will quote it.
Which countries do you ship to?
Products have been exported worldwide, covering Europe, Asia, Africa and the Middle East.
How do I get a price?
Send the part reference, the gauge and the quantity by WhatsApp or email to [email protected] and we will come back with a quotation.
Get A Quotation For Oil Bellows And Oil Cups
Send the machine brand, machine type, gauge and quantity. Quick delivery is done for any order, even for a small order size.
