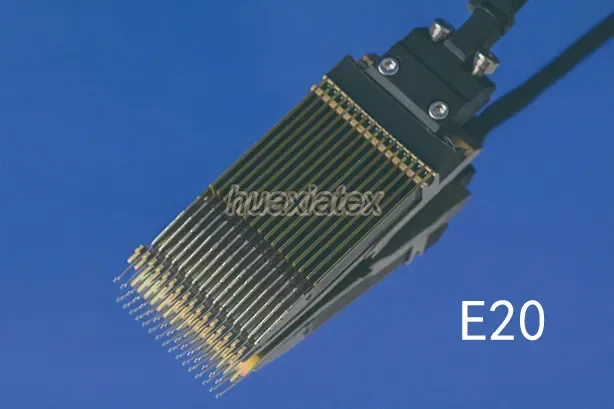

Piezo Guide E20
Catalogue item No. 2824This item is listed in the Piezo Guides range on the original Huaxiatex catalogue under the reference Piezo Guide E20. No further written description was published for it. Send the machine brand, the machine type, the gauge and a photograph of the part you are replacing and the match will be confirmed before anything is shipped.
- Part ReferencePiezo Guide E20
- CategoryPiezo Guides
- Machine GaugeE20
- Catalogue ItemNo. 2824
- Supplied FromBeijing, China
Product Overview
This item is listed in the Piezo Guides range on the original Huaxiatex catalogue under the reference Piezo Guide E20. No further written description was published for it. Send the machine brand, the machine type, the gauge and a photograph of the part you are replacing and the match will be confirmed before anything is shipped.
Piezo Guide E20 is listed on the Huaxiatex catalogue in the Piezo Guides category, part of the Piezo Guides range. Piezo jacquard guides from E12 to E32 and by type code.
What This Part Does
A piezo guide carries a piezoelectric bender behind the guide blade. Applying a voltage deflects the blade one needle space to the left or the right, so a single guide bar can place a jacquard pattern without a mechanical pattern drive behind it.
Where It Is Used
Jacquard warp knitting machines, double needle bar machines, RD6 and RD7, MSJ lace machines and terry towel warp knitting machines.
Who It Is For
Warp knitting mills and maintenance teams replacing worn piezo guides, machine builders and rebuilders sourcing elements for refurbishment, and agents supplying spare parts to knitting plants. Products have been exported worldwide, covering Europe, Asia, Africa, Middle East.
Problems It Solves
- A machine standing because one worn part cannot be sourced quickly.
- A part with no readable number and no surviving parts book.
- Spare parts spread across several suppliers, each with its own minimum order.
- Replacement parts arriving in the wrong gauge because only the machine type was quoted.
Specification
| Part Reference | Piezo Guide E20 |
|---|---|
| Category | Piezo Guides |
| Machine Gauge | E20 |
| Catalogue Item | No. 2824 |
| Supplied From | Beijing, China |
Where a dimension is not published on the original catalogue it is not shown here. Send the old part or its measurements and it will be confirmed on the quotation rather than assumed.
Category Specification
| Gauge range listed | E12, E14, E16, E18, E20, E22, E24, E26, E28, E30, E32 |
|---|---|
| Type codes listed | 12B, 12C, 12L, 18B, 18L, 20L, 24B, 24D, 24L, 24R, 28B, 28L, 32D |
| Machine brands | Karl Mayer and compatible |
How To Order
Send These Five Things
- Machine brand, machine type and gauge.
- The type code on the old guide, for example 24L or 28B.
- Number of guides required.
- A photograph of the connector end.
Send them by WhatsApp on 0086-13693077663 or by email to [email protected]. WhatsApp is quicker for photographs; email is better where a written quotation has to reach a purchasing department.
Delivery
The company statement on delivery is that quick delivery is always done for any orders, even for a small order size. Tell us on the enquiry whether the machine is stopped, because an urgent single item and a routine restock are handled differently.
In This Category
Machine Applications
Related Guides
Related Solutions
Related Parts In Piezo Guides
Other items listed in the same category on the Huaxiatex catalogue.
Piezo Guide E16
Listed in the Piezo Guides range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- GaugeE16
- ItemNo. 2822
Piezo Guide E14
Listed in the Piezo Guides range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- GaugeE14
- ItemNo. 2821
Piezo Guide E12
Listed in the Piezo Guides range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- GaugeE12
- ItemNo. 2820
Piezo Guide 12B
Listed in the Piezo Guides range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2807
Piezo Guide 12C
Listed in the Piezo Guides range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2808
Questions About Piezo Guide E20
Will Piezo Guide E20 fit my machine?
Send the machine brand, the machine type and the gauge together with a photograph of the part you are replacing. The match is confirmed against the catalogue reference before anything is shipped.
What information do you need to quote?
The part reference or a photograph, the machine brand and type, the gauge, and the quantity. Sending all of it at once avoids a round trip.
What do the letters after the gauge mean?
They are the type codes used on the original catalogue listing, such as B, C, D, L and R. Quote the code from the old guide.
Is my type shown on the site?
Not necessarily. The original description states that there are many types and that not all of them could be photographed for the website, and invites orders for any of them.
Can I order a single piece?
Yes. The company statement is that quick delivery is done for any order, even for a small order size.
Quote Piezo Guide E20
Send the machine brand, machine type, gauge and quantity and we will come back with a price. Single pieces are accepted.
