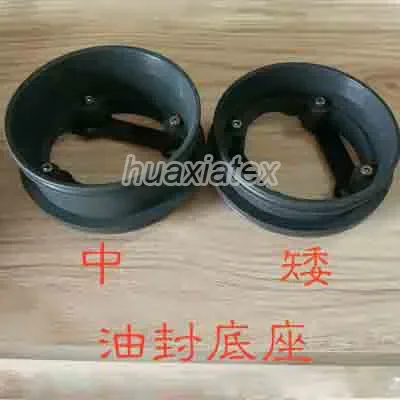

Oil Bellow Base
Catalogue item No. 2688This item is listed in the Oil Bellows And Oil Cups range on the original Huaxiatex catalogue under the reference Oil Bellow Base. No further written description was published for it. Send the machine brand, the machine type, the gauge and a photograph of the part you are replacing and the match will be confirmed before anything is shipped.
- Part ReferenceOil Bellow Base
- CategoryOil Bellows And Oil Cups
- Catalogue ItemNo. 2688
- Supplied FromBeijing, China
Product Overview
This item is listed in the Oil Bellows And Oil Cups range on the original Huaxiatex catalogue under the reference Oil Bellow Base. No further written description was published for it. Send the machine brand, the machine type, the gauge and a photograph of the part you are replacing and the match will be confirmed before anything is shipped.
Oil Bellow Base is listed on the Huaxiatex catalogue in the Oil Bellows And Oil Cups category, part of the Warp Knitting Spare Parts range. One, three and five layer oil bellows, cups, bases and rings.
What This Part Does
An oil bellows, also called an oil seal, is the concertina boot that keeps lubricating oil in the drive and dirt and lint out of it while the shaft or rod moves. On a warp knitting machine there are many of them, and they are consumable.
Where It Is Used
Karl Mayer and LIBA warp knitting machines.
Who It Is For
Warp knitting mills and maintenance teams replacing worn oil bellows and oil cups, machine builders and rebuilders sourcing elements for refurbishment, and agents supplying spare parts to knitting plants. Products have been exported worldwide, covering Europe, Asia, Africa, Middle East.
Problems It Solves
- A machine standing because one worn part cannot be sourced quickly.
- A part with no readable number and no surviving parts book.
- Spare parts spread across several suppliers, each with its own minimum order.
- Replacement parts arriving in the wrong gauge because only the machine type was quoted.
Specification
| Part Reference | Oil Bellow Base |
|---|---|
| Category | Oil Bellows And Oil Cups |
| Catalogue Item | No. 2688 |
| Supplied From | Beijing, China |
Where a dimension is not published on the original catalogue it is not shown here. Send the old part or its measurements and it will be confirmed on the quotation rather than assumed.
Category Specification
| Layer counts | 1 layer, 3 layer and 5 layer bellows |
|---|---|
| Related parts | Bases, locking rings, oil stoppers, oil shields, oil cups, window covers |
| Machine brands | Karl Mayer, LIBA and compatible |
How To Order
Send These Five Things
- Machine brand and machine type.
- Number of layers on the old bellows.
- Overall height and the diameter at both ends.
- A photograph of the old bellows next to a ruler.
- Quantity required.
Send them by WhatsApp on 0086-13693077663 or by email to [email protected]. WhatsApp is quicker for photographs; email is better where a written quotation has to reach a purchasing department.
Delivery
The company statement on delivery is that quick delivery is always done for any orders, even for a small order size. Tell us on the enquiry whether the machine is stopped, because an urgent single item and a routine restock are handled differently.
In This Category
Machine Applications
Related Solutions
Related Parts In Oil Bellows And Oil Cups
Other items listed in the same category on the Huaxiatex catalogue.
Oil Window Cover A
Listed in the Oil Bellows And Oil Cups range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2690
Oil Window Cover B
Listed in the Oil Bellows And Oil Cups range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2691
Big Three Layers Oil Bellows for Karl Mayer
WARP KNITTING MACHINE
- MachineKarl Mayer
- ItemNo. 2840
Bellow Seat Hook
Listed in the Oil Bellows And Oil Cups range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2841
3 Layer Oil Bellows for LIBA Warp Knitting Machines
Listed in the Oil Bellows And Oil Cups range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- MachineLIBA
- ItemNo. 2842
Questions About Oil Bellow Base
Will Oil Bellow Base fit my machine?
Send the machine brand, the machine type and the gauge together with a photograph of the part you are replacing. The match is confirmed against the catalogue reference before anything is shipped.
What information do you need to quote?
The part reference or a photograph, the machine brand and type, the gauge, and the quantity. Sending all of it at once avoids a round trip.
How do I count the layers?
Count the concertina folds on the side of the old bellows. One, three and five layer types are all listed here.
Do I need the base as well?
Only if the base is cracked or the wrong height. Bases are listed separately in high, low, slanting and aluminium forms.
Can I order a single piece?
Yes. The company statement is that quick delivery is done for any order, even for a small order size.
Quote Oil Bellow Base
Send the machine brand, machine type, gauge and quantity and we will come back with a price. Single pieces are accepted.
