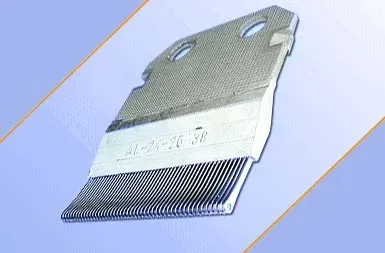

AL-24-26-38
Catalogue item No. 108This item is listed in the Guide, Sinker And Tongue Assemblies range on the original Huaxiatex catalogue under the reference AL-24-26-38. No further written description was published for it. Send the machine brand, the machine type, the gauge and a photograph of the part you are replacing and the match will be confirmed before anything is shipped.
- Part ReferenceAL-24-26-38
- CategoryGuide, Sinker And Tongue Assemblies
- Catalogue ItemNo. 108
- Supplied FromBeijing, China
Product Overview
This item is listed in the Guide, Sinker And Tongue Assemblies range on the original Huaxiatex catalogue under the reference AL-24-26-38. No further written description was published for it. Send the machine brand, the machine type, the gauge and a photograph of the part you are replacing and the match will be confirmed before anything is shipped.
AL-24-26-38 is listed on the Huaxiatex catalogue in the Guide, Sinker And Tongue Assemblies category, part of the Warp Knitting Machine Parts range. Complete cast assemblies of guides, sinkers and tongues.
What This Part Does
A warp knitting machine forms every loop with three elements working against the needle: the guide lays the yarn across it, the sinker holds the fabric down while the needle rises, and the tongue closes the hook so the old loop can be cast off. On modern machines these elements are not fitted singly but cast into short assemblies that bolt onto the bar, so a worn section is changed as one block.
Where It Is Used
Tricot and raschel machines from Karl Mayer and LIBA, and other machines that use cast element assemblies rather than loose elements.
Who It Is For
Warp knitting mills and maintenance teams replacing worn guide, sinker and tongue assemblies, machine builders and rebuilders sourcing elements for refurbishment, and agents supplying spare parts to knitting plants. Products have been exported worldwide, covering Europe, Asia, Africa, Middle East.
Problems It Solves
- A machine standing because one worn part cannot be sourced quickly.
- A part with no readable number and no surviving parts book.
- Spare parts spread across several suppliers, each with its own minimum order.
- Replacement parts arriving in the wrong gauge because only the machine type was quoted.
Specification
| Part Reference | AL-24-26-38 |
|---|---|
| Category | Guide, Sinker And Tongue Assemblies |
| Catalogue Item | No. 108 |
| Supplied From | Beijing, China |
Where a dimension is not published on the original catalogue it is not shown here. Send the old part or its measurements and it will be confirmed on the quotation rather than assumed.
Category Specification
| Element type | Guide, sinker and tongue assemblies |
|---|---|
| Machine brands | Karl Mayer, LIBA and compatible |
| Gauge | Stated per item where the reference carries it |
How To Order
Send These Five Things
- Machine brand and machine type, for example Karl Mayer HKS or LIBA.
- Machine gauge in needles per inch, for example E28.
- The number cast or stamped on the old part, if it still reads.
- A photograph of the worn part next to a ruler.
- Quantity required and whether this is a trial or a running order.
Send them by WhatsApp on 0086-13693077663 or by email to [email protected]. WhatsApp is quicker for photographs; email is better where a written quotation has to reach a purchasing department.
Delivery
The company statement on delivery is that quick delivery is always done for any orders, even for a small order size. Tell us on the enquiry whether the machine is stopped, because an urgent single item and a routine restock are handled differently.
In This Category
Related Parts In Guide, Sinker And Tongue Assemblies
Other items listed in the same category on the Huaxiatex catalogue.
L-32-93-67
Listed in the Guide, Sinker And Tongue Assemblies range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 545
ML-32-92H-0
Listed in the Guide, Sinker And Tongue Assemblies range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 547
ML-28-93-49 PLASTIC
Listed in the Guide, Sinker And Tongue Assemblies range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 548
ML-28-93-49
Listed in the Guide, Sinker And Tongue Assemblies range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 549
Questions About AL-24-26-38
Will AL-24-26-38 fit my machine?
Send the machine brand, the machine type and the gauge together with a photograph of the part you are replacing. The match is confirmed against the catalogue reference before anything is shipped.
What information do you need to quote?
The part reference or a photograph, the machine brand and type, the gauge, and the quantity. Sending all of it at once avoids a round trip.
Do I have to change a whole bar?
No. These are supplied as the cast assemblies that bolt to the bar, so only the worn sections need replacing. If the bar itself is damaged, see the long bars category.
How do I know whether I need a guide, a sinker or a tongue unit?
The three sit in different bars. Send a photograph of the element you removed and the position it came from and we will confirm which category it belongs to.
Can I order a single piece?
Yes. The company statement is that quick delivery is done for any order, even for a small order size.
Quote AL-24-26-38
Send the machine brand, machine type, gauge and quantity and we will come back with a price. Single pieces are accepted.
