Tilting-coil-tong
Unleash the power of precision with our Electric Tilting Coil Tong. Meticulously crafted from Q355B steel and armed with advanced forging techniques, it’s engineered for durability and unmatched performance. The heavy-duty tilting
- Maximum Load Capacity
- 40 tons
- Horizontal Rotation of the Tong
- +90° or -240°
- Rotation Speed
- 2 revolutions per minute
- Single Flip Time
- ≤90 seconds
- Control Method
- Remote control (also operable from the driver’s cabin).
- Start the Crane
- Activate the crane to lift the electric tilting coil tong above the vertically suspended steel coil.
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>
Product Gallery

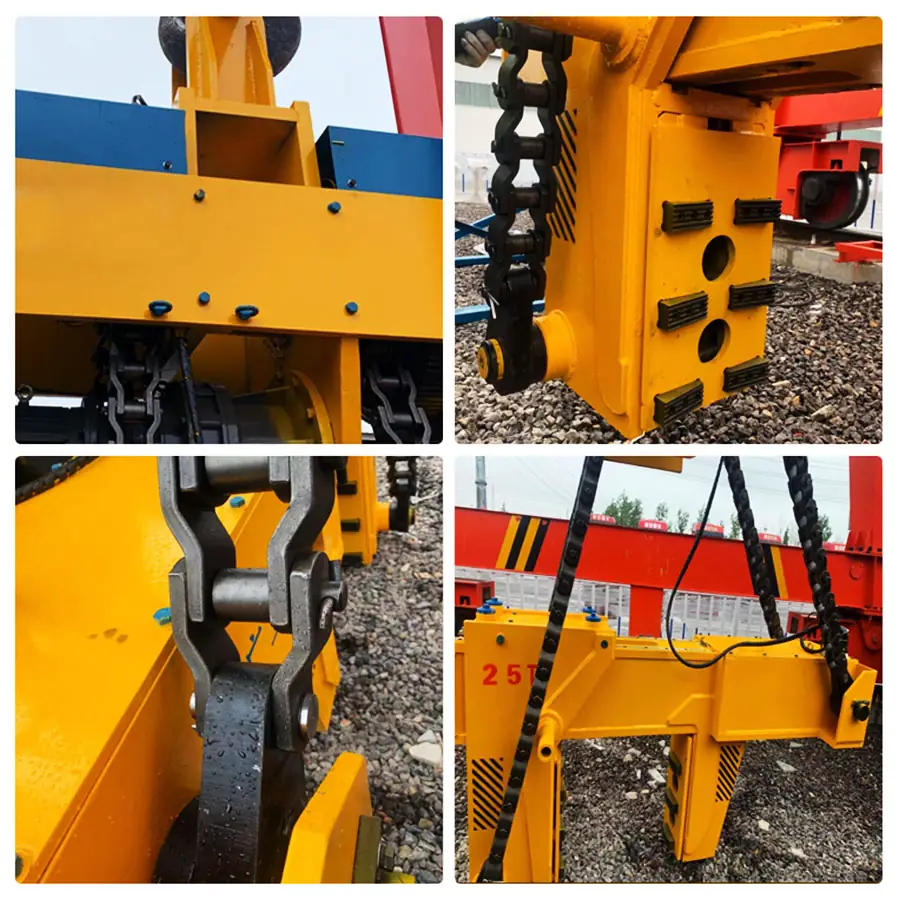

Technical Features

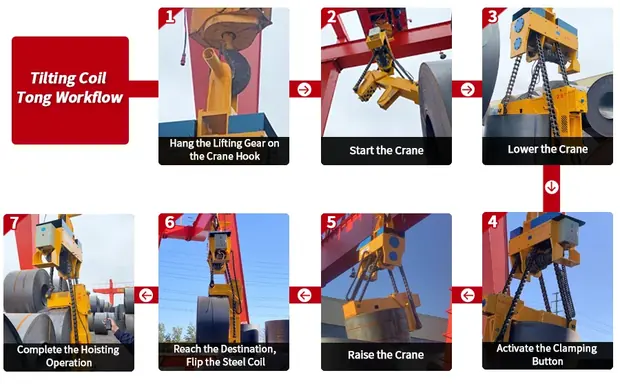

- Tilting Coil Tong Workflow
- The brand (Delixi, SEW) electrical components ensure top-notch reliability.
- Tilting gearbox and clamping motor from a leading Chinese brand, ensuring superior performance.
- The tilting double-plate heavy-duty chain, with a safety factor of 3, is forged from robust 40Mn material, guaranteeing reliability.
- Crafted with finesse, the steel plate is Q355B, and the tong mouth is forged using cutting-edge techniques.
- Hang the Lifting Gear on the Crane Hook : Lower the crane hook into the lifting ear of the tilting coil tong, insert it into the lifting ear of the tilting coil tong.
- Activate the Clamping Button : Start the clamping button of the electric steel coil tilting device, tighten the outer legs of the clamp to secure the steel coil.
- Reach the Destination, Flip the Steel Coil : Upon reaching the destination, lower the crane, simultaneously activate the flipping button to rotate the steel coil 90 degrees during the movement.
- Complete the Hoisting Operation : After completing the flipping process, operate the crane to move the tilting coil tong away from the steel coil, concluding a single hoisting and flipping operation.
Where It Is Used
Applied across the industries listed below. Send your process conditions and an engineer will confirm suitability.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Maximum Load Capacity | 40 tons |
|---|---|
| Horizontal Rotation of the Tong | +90° or -240° |
| Rotation Speed | 2 revolutions per minute |
| Single Flip Time | ≤90 seconds |
| Control Method | Remote control (also operable from the driver’s cabin). |
| Start the Crane | Activate the crane to lift the electric tilting coil tong above the vertically suspended steel coil. |
| Lower the Crane | Descend the crane, lower the legs of the electric steel coil tilting coil tong into the inner hole of the suspended steel coil. |
| Raise the Crane | Lift the crane, raising the clamp with the steel coil away from its original position. |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
Conductor-rail
- Conductor Material
- Copper(5000A) /Aluminum(3000A).
- Max Allowable Amper
- 5000A/3000A
Mobile-conductive-busbar
- Conductor Material
- 99.99% Oxygen Free Copper.
- Max Allowable Amper
- 200A
Festoon-system
View specification
C-track-cable-trolley
View specificationFrequently Asked Questions
What information do you need to quote a tilting-coil-tong?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Is the tilting-coil-tong available as a spare part or kit item?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Tilting-coil-tong
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
