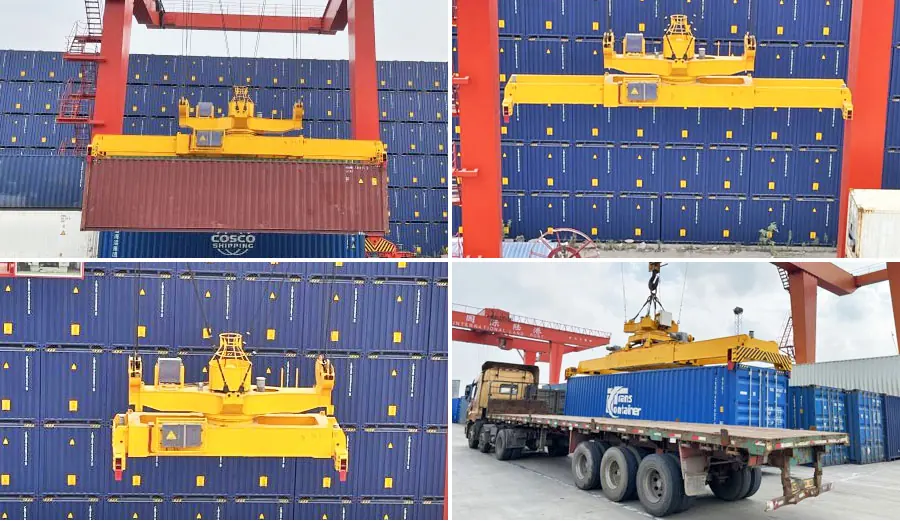

Hydraulic-container-spreader
Sinomac Industrial(SANOMAC) hydraulic container spreader, suitable for ISO 20′ and ISO 40′ containers, adaptable for various crane machines. characterized by ease of operation, precision, and safety, offer a reliable solution for diverse container handling operations.
- ISO Container Sizes
- 20ft, 40ft, 45ft
- Telescopic Switching
- Between 20-foot and 40-foot Positions
- Single-lift Spreader Option
- Fixed Flipper, Movable Flipper, List Function&Movable Flipper, Equipped Sheave Assembly and Cable Basket
- Twin-lift Spreader Option
- Fixed Spreader with Movable Flipper, Separated Spreader with Fixed Flipper, Separated Spreader with Movable Flipper
- CE Certification
- Include
- Fixed Spreaders
- 20ft Fixed Spreader 40ft Fixed Spreader
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>
Technical Features
- 20ft/40ft Telescopic Spreader
- 20ft/40ft/45ft Telescopic Spreader
- 2-20ft Telescopic Twin Spreader
- Hydraulic Single-lift Container Spreader
- Hydraulic Twin-lift Container Spreader
Where It Is Used
- APPLICATION: RMG Cranes, RTG Cranes, Marine Cranes
- Sinomac Industrial(SANOMAC) is dedicated to delivering comprehensive services, encompassing research, design, manufacturing, installation, debugging, transportation, and after-sales support. We specialize in the field of container spreaders and hoisting equipment. Operating globally, we export to major ports worldwide. If you have any inquiries or requirements, please feel free to contact us.
- Sinomac Industrial(SANOMAC) is a professional crane manufacturer. We integrate crane research and development, manufacturing, sales, installation and service.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| ISO Container Sizes | 20ft, 40ft, 45ft |
|---|---|
| Telescopic Switching | Between 20-foot and 40-foot Positions |
| Single-lift Spreader Option | Fixed Flipper, Movable Flipper, List Function&Movable Flipper, Equipped Sheave Assembly and Cable Basket |
| Twin-lift Spreader Option | Fixed Spreader with Movable Flipper, Separated Spreader with Fixed Flipper, Separated Spreader with Movable Flipper |
| CE Certification | Include |
| Fixed Spreaders | 20ft Fixed Spreader 40ft Fixed Spreader |
| Telescopic Spreaders | 20ft/40ft Telescopic Spreader 20ft/40ft/45ft Telescopic Spreader 2-20ft Telescopic Twin Spreader |
| Spreader Types | Hydraulic Single-lift Container Spreader Hydraulic Twin-lift Container Spreader |
| Material Quality | Utilizes high-strength steel plates, providing a lightweight structure with excellent strength. |
| Structural Design | Rational design of the lifting equipment’s structure ensures durability and longevity of components. |
| Assembly Efficiency | Standardized assembly and strong part interchangeability contribute to efficient and versatile use. |
| Rotation Mechanism | Employs eight single-acting hydraulic cylinders for a stable and reliable lifting operation. |
| Model | HMT2-20ft\45ft_HF4 |
|---|---|
| Self Weight | 13.5 ton |
| Applicable Machines | Tire crane, Rail crane, Bridge crane |
| Pivot Type | ISO floating pivot, Hydraulic cylinder drive |
| Telescopic Type | Oil motor drive, Telescopic through chain drive |
| Intermediate Suspension Lifting | Hydraulic cylinder vertical movement for lifting |
| Twin-lift Movement | Hydraulic cylinder horizontal movement for translation |
| Guide Plate Mechanism | Swing cylinder active guide plate |
| Power Supply Voltage/Frequency | AC380(3P)/50Hz |
| Total Power | 7.5KW |
| Allowable Load Eccentricity | ±10% |
| Rated Load | Single-lift 50 tons, Twin-lift 65 tons |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products

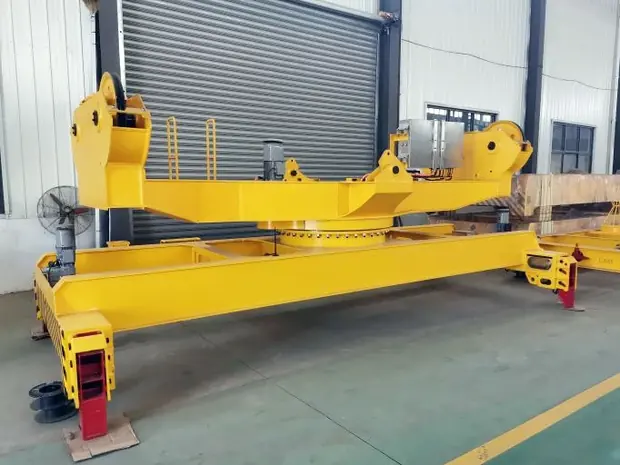

Electric-fixed-container-spreader
- ISO Container Sizes
- 1 X 20FT, 1 X 40FT
- Spreader Control
- Mechanical or Semi Automatic

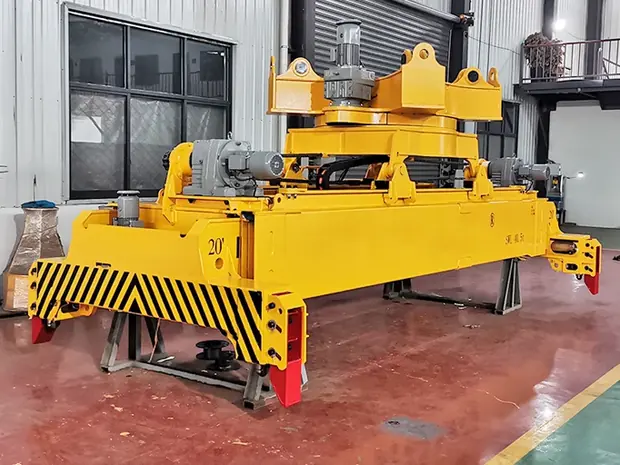

Electric-telescopic-spreader
- ISO Container Sizes
- ISO Standard 20’, 40’ and 45’ containers
- Spreader Control
- Mechanical
Empty-container-handler-spreader
- ISO Container Sizes
- 1 X 20FT Empty Container, 1 X 40FT Empty Con
- Rated Load
- ≤8 tons

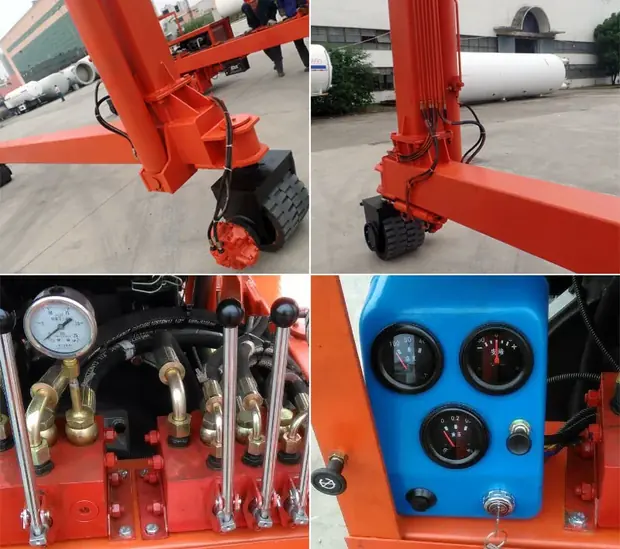

Mast-mobile-container-crane
- Maximum Lifting Weight
- 40t
- Maximum Lifting Height
- 1~10m or Customized
Frequently Asked Questions
What information do you need to quote a hydraulic-container-spreader?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the hydraulic-container-spreader be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Hydraulic-container-spreader
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
