Battery-transfer-cart
Sinomac Industrial(SANOMAC) Battery Transfer Cart is designed to carry heavy items or equipment from one place to another.The fields covered include metallurgy, foundry, new plant construction, etc.
- Rated Load
- 2t~100t
- Length
- 2000~6600 mm
- Width
- 1500~3000 mm
- Height
- 450~1200 mm
- Wheel Base
- Φ250~Φ600 mm
- Battery Capacity
- 250~1000 Ah
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>

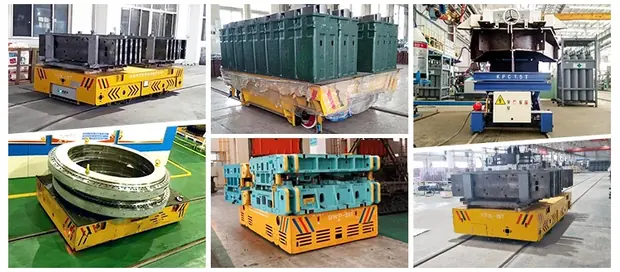

Product Gallery
Technical Features
- Simple structure, beautiful appearance, simple design, convenient transportation.
- Controlled easily by pressing the buttons and speed controller.
- PLC control system for full automation is available.
- The battery transfer cart can be applied in many occasions, such as easy explosion, high temperature, etc.
- Stable start, starting torque, small impact to gear reducer, low voltage, long life time.
- Large carrying capacity, simple overall structure, smooth surface, dirty resistance, easy to clean, small pollution.
- Can be customized according to your needs.
Where It Is Used
- Manufacturing workshop, metallurgy, petroleum, petrochemicals, ports, railway, civil aviation,power station, food industry, paper making, building material, warehouses and other material handling application.
- From the professional team of Sinomac Industrial(SANOMAC), to provide you with the best quality service and solutions efficiently.
- Manufacturing workshop, metallurgy, petroleum, petrochemicals, ports, railway, civil aviation, power station, food industry, paper making, building material, warehouses and other material handling application.

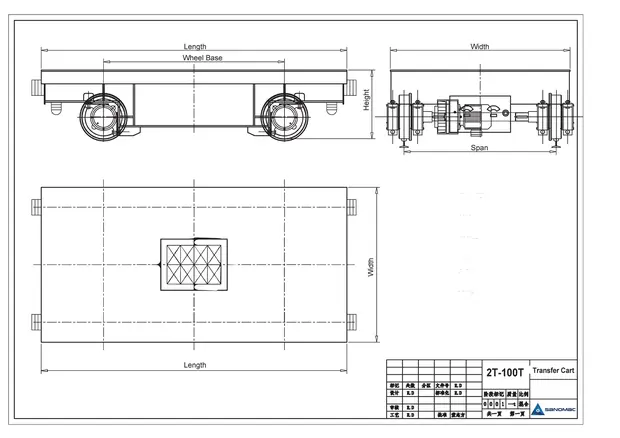

Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Rated Load | 2t~100t |
|---|---|
| Length | 2000~6600 mm |
| Width | 1500~3000 mm |
| Height | 450~1200 mm |
| Wheel Base | Φ250~Φ600 mm |
| Battery Capacity | 250~1000 Ah |
| Battery Voltage | 24~72V |
| Model | BWP-2T | BWP-5T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-100T |
|---|---|---|---|---|---|---|---|
| Rated load | 2t | 5t | 10t | 20t | 30t | 50t | 100t |
| Length(mm) | 2000 | 2200 | 2300 | 2400 | 3500 | 5500 | 6600 |
| Width(mm) | 1500 | 2000 | 2000 | 2200 | 2600 | 2500 | 3000 |
| Heigth(mm) | 450 | 500 | 550 | 600 | 700 | 800 | 1200 |
| Wheel Diamater (mm) | Φ250 | Φ300 | Φ350 | Φ400 | Φ450 | Φ600 | Φ600 |
| Motor Power (Kw) | 2*1.2 | 2*1.5 | 2*2.2 | 2*4.5 | 2*5.5 | 2*7.5 | 40 |
| Battery Capacity(Ah) | 250 | 180 | 250 | 400 | 450 | 500 | 1000 |
| Battery Voltage (V) | 24 | 48 | 48 | 48 | 48 | 72 | 72 |
| Running Speed (m/min) | 0-30 | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-25 |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
1-20-ton-din-overhead-crane
- Capacity
- 1~32 T
- Span
- ≤50M
Fem-overhead-crane
- Design Standard
- FEM/DIN/ISO
- Capacity
- 1 T -160T
Double-girder-overhead-shop-crane
- Capacity
- 5~800t
- Lift Height
- Max. 160m
Single-girder-overhead-crane
- Capacity
- 0.5~32t
- Lift Height
- 3~120m or Customized
Frequently Asked Questions
What information do you need to quote a battery-transfer-cart?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the battery-transfer-cart be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Battery-transfer-cart
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
