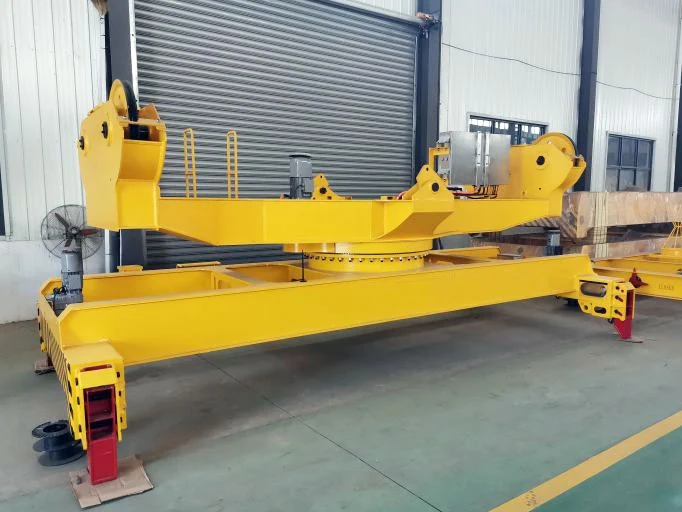

Electric-fixed-container-spreader
Electric fixed container spreader come in two main specifications: 20 feet and 40 feet, suitable for handling 20-foot and 40-foot containers. advantages such as compact structure, light weight, and environmental friendliness compared
- ISO Container Sizes
- 1 X 20FT, 1 X 40FT
- Spreader Control
- Mechanical or Semi Automatic
- Options
- Rotating Spreaders, ±1200 Movement Spreaders
- CE Certification
- Include
- Selectable Power and Voltage
- Operating at AC 380(3P)/50Hz, the spreader also offers control voltage options at AC 220V to meet diverse power requirements.
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>
Product Gallery
Technical Features
- Versatility in Multiple Sizes: Electric fixed container spreader are available in 20 feet and 40 feet specifications, catering to both 20-foot and 40-foot containers.
- Flexibility and Multi-functionality: With 360° rotation and optional rotation angles, coupled with a lateral movement of +1200mm, the spreader provides flexible operational choices for various complex conditions.
- Advanced Drive Technology: Utilizing ISO floating swivel and a reduction motor, the electric container spreader ensures efficient performance. The rotation motor-driven turntable enhances operational precision.
- Removable Guide Plate Design: Equipped with a removable fixed guide plate (FF optional), the spreader allows flexible adjustment of the guide plate, enhancing operational convenience and adaptability.
- Stability and Safety: Designed with a permissible eccentric load of ±10%, the spreader ensures safe operation under various conditions. It boasts an IP55 protection rating for reliable safety.
Where It Is Used
- APPLICATION: Mobile Harbour Cranes, Marine Cranes, RTG Cranes, RMG Cranes
- Electric fixed Container spreaders come in two main specifications: 20 feet and 40 feet, suitable for handling 20-foot and 40-foot containers.
- Electric fixed container spreader are effectively deployed in over 90 terminals spanning 25 countries globally. From the East and West Coasts of the United States, where more than 30 units are actively in use, to prominent terminals in Europe, including Germany, France, Russia, Poland, the United Kingdom, Italy, and the Netherlands, Sinomac Industrial(SANOMAC) equipment demonstrates its efficiency.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| ISO Container Sizes | 1 X 20FT, 1 X 40FT |
|---|---|
| Spreader Control | Mechanical or Semi Automatic |
| Options | Rotating Spreaders, ±1200 Movement Spreaders |
| CE Certification | Include |
| Selectable Power and Voltage | Operating at AC 380(3P)/50Hz, the spreader also offers control voltage options at AC 220V to meet diverse power requirements. |
| Model | EFS20ft/EFS40ft | EFS20ft/EFS40ft _RSH_ER360° | EFS20ft/EFS40ft _RSH_SR360±CT1200 |
|---|---|---|---|
| Self Weight | 2.5 tons / 5 tons | 5 tons / 6.3 tons | 7.5 tons / 9 tons |
| Swivel Type | ISO Floating Swivel, Driven by Reduction Motor | ||
| Rotation Angle | / | 360° (optional) | 360° (optional) |
| Lateral Movement Distance | / | / | ±1200mm |
| Rotation Mechanism | / | Rotation motor drives the turntable to rotate | |
| Guide Plate Mechanism | Removable Fixed Guide Plate (FF, optional) | ||
| Power Supply Voltage/Frequency | AC 380(3P)/50Hz | ||
| Total Power | ≤1.1KW | ≤4.1 KW | 8 KW |
| Permissible Eccentric Load | ±10% | ||
| Rated Load | ≤41 tons | ||
| Ambient Temperature | 20°C to +60°C |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
Hydraulic-container-spreader
- ISO Container Sizes
- 20ft, 40ft, 45ft
- Telescopic Switching
- Between 20-foot and 40-foot Positions
Electric-telescopic-spreader
- ISO Container Sizes
- ISO Standard 20’, 40’ and 45’ containers
- Spreader Control
- Mechanical
Empty-container-handler-spreader
- ISO Container Sizes
- 1 X 20FT Empty Container, 1 X 40FT Empty Con
- Rated Load
- ≤8 tons
Mast-mobile-container-crane
- Maximum Lifting Weight
- 40t
- Maximum Lifting Height
- 1~10m or Customized
Frequently Asked Questions
What information do you need to quote a electric-fixed-container-spreader?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the electric-fixed-container-spreader be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
