Semi-gantry-crane
The whole semi gantry crane structure adopts strong bolts connection and plug-in electrical connection, which is convenient for installation and maintenance. High degree of standardization of components, high replaceability. The whole
- Capacity
- 0.25-80 Ton
- Lift Height
- 12m
- Span
- 5-20m
- Work Duty
- FEM 1M(A4)-FEM 3M(A6)
- Hoist Selection
- Elecctric Rope Hoist/Electric Chain Hoist
- Protection Class
- IP54-IP65
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>

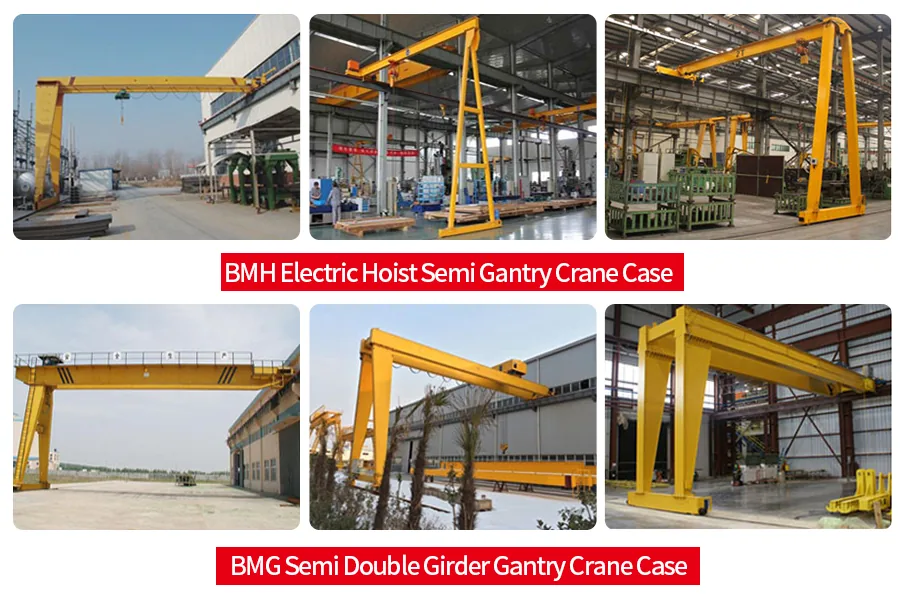

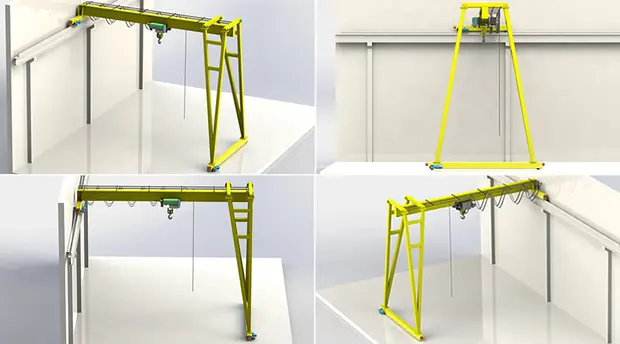

Product Gallery
Technical Features
- Smooth starting and stopping
- Safe and reliable traveling
- Low noise, commodious cabin and good view
- Convenient maintenance ,excellent exchangeability for parts and computers
- Saves electricity specifications
- Crane traveling limit switch
- Weight overload protection system
- Voltage lower protection function
- Current overload protection system
- Main lifting motor with thermal protection
Where It Is Used
- Construction sites, factory, workshop, warehouse, power station, outdoor storage yards, logistic, etc.
- Compare to the standard gantry crane, it will save one side support gantry leg, not only reduce the cost, but also can expand crane effective workspace in some limited workshops.
- The crane is suitable for indoor and outdoor use, under the lifting hook, there are different lifting tools to choose, such as grab bucket, electromagnet and other lifting tools.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Capacity | 0.25-80 Ton |
|---|---|
| Lift Height | 12m |
| Span | 5-20m |
| Work Duty | FEM 1M(A4)-FEM 3M(A6) |
| Hoist Selection | Elecctric Rope Hoist/Electric Chain Hoist |
| Protection Class | IP54-IP65 |
| Power Supply | 2PH/3PH 220V-480V 50Hz/60Hz/Customized |
| Working Temperature | 40~+40℃ |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
1-20-ton-light-gantry-crane
- Capacity
- 1~20 Tons
- Lift Height
- 3~40m
20-ton-heavy-gantry-crane
- Capacity
- 0.5~800t
- Span
- 12~50m or Customized
Double-girder-gantry-crane
- Capacity
- 0.5~800t
- Span
- 12~50m or Customized
Portable-gantry-crane
- Capacity
- 0.5-10 tons
- Lift Height
- 1-10m
Frequently Asked Questions
What information do you need to quote a semi-gantry-crane?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the semi-gantry-crane be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Semi-gantry-crane
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
