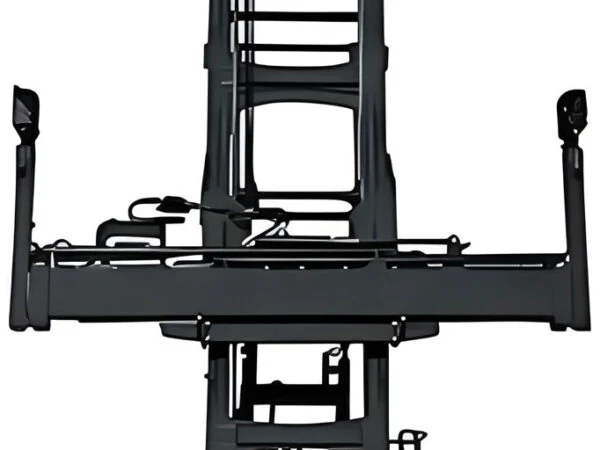

Empty-container-handler-spreader
Enhance your container handling operations with the HLS40ft Empty Container Stacker Spreader. Designed for efficiency, it accommodates standard 20ft and 40ft empty containers, offering telescopic extension, lateral movement, and
- ISO Container Sizes
- 1 X 20FT Empty Container, 1 X 40FT Empty Container
- Rated Load
- ≤8 tons
- Self-weight
- 3.5 tons
- Side Shift
- ± 600 mm
- CE Certification
- Include
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>
Technical Features
- Full block stacking with enhanced visibility
- Quick handling of 20′ to 40′ containers with dampening for maximum speed
- Equipped with ISO twistlocks for secure container attachment
- ± 600 mm side shift with smooth control technology
- 250mm flexible floating function for easy container alignment
- ±2° self-leveling capability for improved stability
- Long service intervals contributing to an extended economic life
Where It Is Used
- APPLICATION: Empty Container Handler, Reach Stacker
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| ISO Container Sizes | 1 X 20FT Empty Container, 1 X 40FT Empty Container |
|---|---|
| Rated Load | ≤8 tons |
| Self-weight | 3.5 tons |
| Side Shift | ± 600 mm |
| CE Certification | Include |
| Model | HLS40ft |
|---|---|
| Rated load | ≤8tons |
| Self weight | 3.5 tons |
| Transfer pin type | ISO floating transfer pin, hydraulic cylinder drive |
| Telescopic form | hydraulic cylinder telescopic drive |
| Side shift mechanism | hydraulic cylinder telescopic drive |
| Power supply voltage/frequency | AC 380(3P)/50Hz |
| Allowable eccentric load | ±10% |
| Vertical floating stroke of resale box | 200mm |
| Opening and closing time | ~1s |
| Telescopic time (20ft~40ft) | ~25s |
| Side shift ±600 | ~15s |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
