Electric-wire-rope-hoist
Electric Wire Rope Hoist price is more competitive than others, and all the components adopted the industrial top 1 brand to make sure the hoist working stability. And the classification is up to M5.
- Product Type
- CD MD
- Lifting Capacity
- 0.5~80t
- Lifting Height
- 6~50m
- Lifting Speed
- 0.8/ 8 m/ min or Customized
- Working Class
- M3, M4, M5, M6
- Ambient Temperature
- 25~60℃
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>

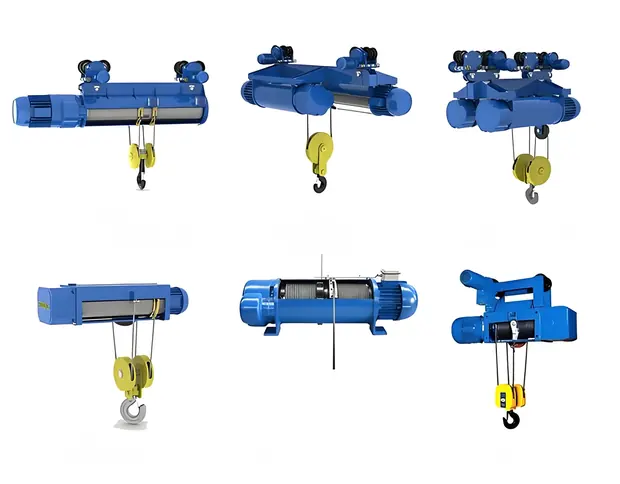

Product Gallery
Technical Features
Feature detail for this item is published in the specification table below and in the downloadable catalog.
Where It Is Used

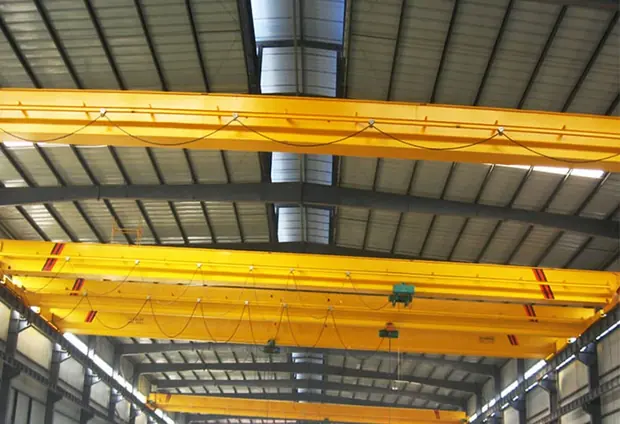

- Electric Wire Rope Hoist is a small lifting equipment that can be installed on a single girder bridge crane. Gantry cranes can meet normal applications only as a normal speed. It is widely used in factories, mines, ports, cargo storage areas and shops, and is essential for improving work efficiency and improving working conditions.
- The hoisting motor adopt Top 1 industrial Brand squirrel cage motor with a large starting torque to brake the induction motor. No additional lightning arrester is needed. The load continuity factor of the motor is 25%; Insulation:F/H, and the protection level is isIP44 / IP54 .
- Adopted the Industrial famous brand, which is broken-resistant. Protection Class is up to IP65
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Product Type | CD MD |
|---|---|
| Lifting Capacity | 0.5~80t |
| Lifting Height | 6~50m |
| Lifting Speed | 0.8/ 8 m/ min or Customized |
| Working Class | M3, M4, M5, M6 |
| Ambient Temperature | 25~60℃ |
| Model | 0.5T | 1T | 2T | 3T | 5T | 10T | ...T |
|---|---|---|---|---|---|---|---|
| Capacity(t) | 0.5 | 1 | 2 | 3 | 5 | 10 | ... |
| Standard lift(m) | 0-80 | 0-80 | 0-80 | 0-80 | 0-80 | 0-80 | ... |
| Lifting speed(m/min) | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 7/0.7 | ... |
| Running speed(m/min) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | ... |
| Wire rope type | 6×37-4.8-180 | 6×37-7.4-180 | 6×37-11-155 | 6×37-13-170 | 6×37-15-200 | 6×37-17.5-200 | ... |
| I Beam track type | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c | ... |
| Motor power/kw | 0.8 | 1.5 | 3.0 | 4.5 | 7.5 | 13 | ... |
| Motor R.P.M(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | ... |
| Voltage(V) | 220-460 | 220-460 | 220-460 | 220-460 | 220-460 | 220-460 | ... |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | ... |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 | ... |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
Electric-chain-hoist
- MAX Capacity
- 100T
- Lifting Height
- 0-120m
Planetary-geared-electric-hoist
- Electric Hoist Type
- Wire Rope Hoist
- Lifting Capacity
- 1~80T
Explosion-proof-rope-hoist
- Classification/Duty
- M5
- Classification
- M5
1-20-ton-din-overhead-crane
- Capacity
- 1~32 T
- Span
- ≤50M
Frequently Asked Questions
What information do you need to quote a electric-wire-rope-hoist?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the electric-wire-rope-hoist be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Electric-wire-rope-hoist
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
