Crane-wheel
DIN Crane Wheel Block adopts the EN standard design ideology, greatly improving the work performance and prolonging the work life. It is of vast application for various traveling mechanisms, such as the crane traveling mechanism (end carriage), electric trolley, movable workshop, movable work statio
- Material
- 42CrMo/GGG 70/PA/PU or Customized
- Hardness
- 330HRC-400HRC (H&T)
- Composition
- Wheel, Shaft, Bearings and Bearing Housing, etc.
- Wheel Diameter
- Φ80, Φ112, Φ125, Φ160, Φ200, Φ400, Φ250, Φ315, Φ400, Φ500.
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>

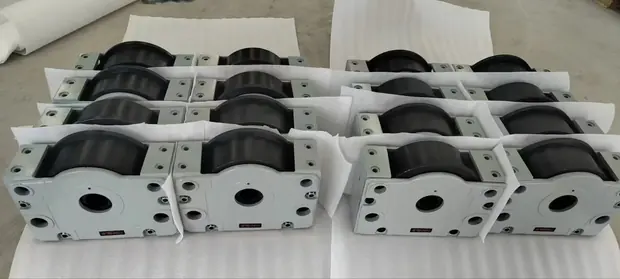

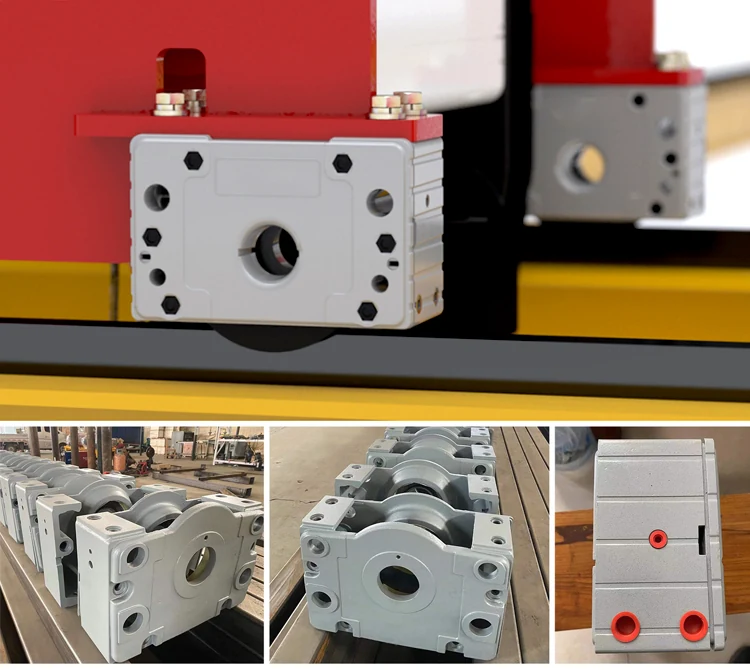

Product Gallery
Technical Features
- High Precision Positioning
- High Efficiency Operation
- High Load Bearing Capacity
- Flexibility & Ddaptability
Where It Is Used
- Crane Wheel is suitable for various engineering machinery fields, such as Overhead Crane and Gantry Crane. It has the characteristics of high strength, wear resistance, low noise, etc. Adopts modular design, is easy to disassemble and repair, and can carry a large weight range from 2.75 tons to 80 tons.
- Crane Wheel is mainly reflected in its high-precision positioning, high-efficiency operation and high load-bearing capacity. Through the integrated advanced control system and sensor technology, the crane wheel block can achieve high-precision positioning and navigation, ensure the precise movement of the stacker in the warehouse, reduce errors, and improve the accuracy of storage and picking operations .

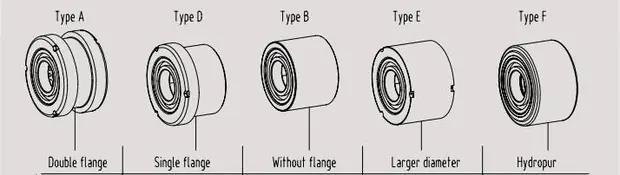

- A: Double Flange – guided by rims on both sides, suitable for rail systems.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Material | 42CrMo/GGG 70/PA/PU or Customized |
|---|---|
| Hardness | 330HRC-400HRC (H&T) |
| Composition | Wheel, Shaft, Bearings and Bearing Housing, etc. |
| Wheel Diameter | Φ80, Φ112, Φ125, Φ160, Φ200, Φ400, Φ250, Φ315, Φ400, Φ500. |

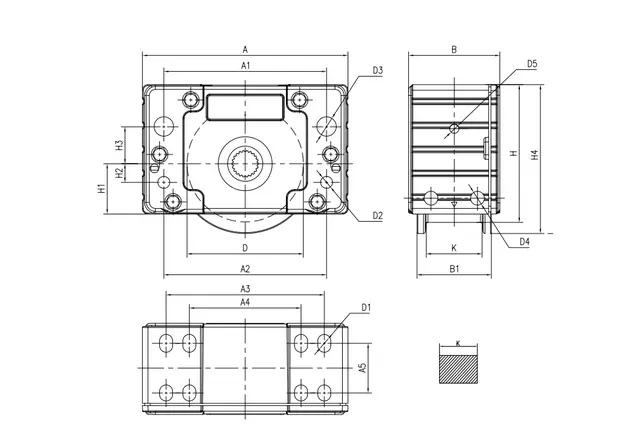

| Typed | HWS80 | HWS112 | HWS125 | HWS160 | HWS200 | HWS250 | HWS315 | HWS400 | HWS500 |
|---|---|---|---|---|---|---|---|---|---|
| A(mm) | 140 | 190 | 220 | 275 | 340 | 385 | 470 | 580 | 700 |
| B(mm) | 74 | 96 | 98 | 110 | 130 | 150 | 180 | 210 | 240 |
| H(mm) | 95 | 131 | 147.5 | 187 | 238 | 281 | 349.5 | 440 | 566 |
| K(mm) | 40 | 55 | 55 | 60 | 60 | 75 | 90 | 100 | 100 |
| H1(mm) | 36 | 47 | 53.5 | 70 | 90 | 89 | 114 | 144 | 183 |
| H2(mm) | 25 | 30 | 20 | 25 | 35 | 50 | 70 | 95 | 110 |
| H3(mm) | 30 | 40 | 40 | 55 | 75 | 80 | 80 | 130 | 160 |
| H4(mm) | 103 | 141 | 160 | 200 | 254 | 293 | 367 | 460 | 589 |
| B1(mm) | 60 | 80 | 80 | 89 | 101 | 110 | 130 | 158 | 170 |
| A1(mm) | 110 | 145 | 175 | 220 | 275 | 310 | 370 | 450 | 580 |
| A2(mm) | 110 | 145 | 175 | 220 | 275 | 310 | 370 | 450 | 580 |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
