Over-height-frame

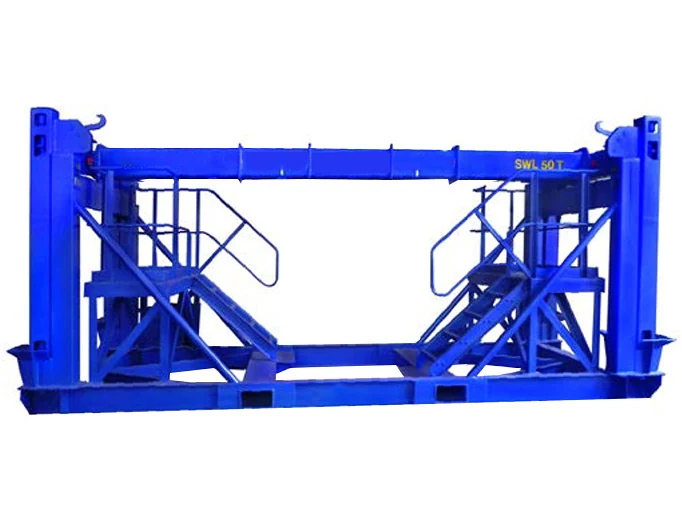

Over Height Frame is the excellent equipment to enhance container handling efficiency. Ideal for 20-45ft containers, it offers versatility, automation, and reliability, ensuring secure and rapid operations.
- Compatible Machines
- Yard Crane, Mobile Harbor Crane
- CE Certification
- Include
- Versatile Container Handling
- Designed to handle 20-foot, 40-foot, and 45-foot open-top ultra-high containers.
- Adjustable Positions
- Capable of adjusting to positions of 20 feet, 40 feet, and 45 feet for flexible cargo handling.
- Compatibility
- Specifically designed for use with lifting equipment that supports standard container spreading.
- Automatic Hooking Mechanism
- Equipped with an automatic hooking feature for rapid and secure connection with lifting equipment.
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>
Technical Features
Feature detail for this item is published in the specification table below and in the downloadable catalog.
Where It Is Used
- Suitable for 20ft, 40ft, and 45ft open-top ultra-high containers.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Compatible Machines | Yard Crane, Mobile Harbor Crane |
|---|---|
| CE Certification | Include |
| Versatile Container Handling | Designed to handle 20-foot, 40-foot, and 45-foot open-top ultra-high containers. |
| Adjustable Positions | Capable of adjusting to positions of 20 feet, 40 feet, and 45 feet for flexible cargo handling. |
| Compatibility | Specifically designed for use with lifting equipment that supports standard container spreading. |
| Automatic Hooking Mechanism | Equipped with an automatic hooking feature for rapid and secure connection with lifting equipment. |
| Reliable Disconnect | Ensures a reliable and swift disconnect from the lifting equipment when required. |
| Robust Construction | Constructed with durability in mind, capable of withstanding the demands of loading and unloading operations. |
| Temperature Tolerance | Suitable for operation in a wide range of temperatures, from -20°C to +60°C. |
| Model | AOS45ft |
|---|---|
| Weight | Lifting Frame: 2.1 tons Base: 2.5 tons |
| Compatible Machines | Yard Crane, Shore Crane |
| Rated Load | ≤50 tons |
| Actuation | Controlled by Master Spreader |
| Environmental Conditions | 20°C to +60°C |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
Hydraulic-container-spreader
- ISO Container Sizes
- 20ft, 40ft, 45ft
- Telescopic Switching
- Between 20-foot and 40-foot Positions
Electric-fixed-container-spreader
- ISO Container Sizes
- 1 X 20FT, 1 X 40FT
- Spreader Control
- Mechanical or Semi Automatic
Electric-telescopic-spreader
- ISO Container Sizes
- ISO Standard 20’, 40’ and 45’ containers
- Spreader Control
- Mechanical
Empty-container-handler-spreader
- ISO Container Sizes
- 1 X 20FT Empty Container, 1 X 40FT Empty Con
- Rated Load
- ≤8 tons
Frequently Asked Questions
What information do you need to quote a over-height-frame?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the over-height-frame be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Over-height-frame
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
