Electric-chain-hoist
Electric chain hoist is designed with compact structure, small size, and light dead weight. Sinomac Industrial’ electric chain hoist is reliable, easy operation, and wide application, etc.
- MAX Capacity
- 100T
- Lifting Height
- 0-120m
- Lifting Speed
- 0 – 30 m/min or Customized
- Applicable Standard
- FEM/DIN/ISO
- Hoist Type
- TROLLEY TYPE/FIXED TYPE
- Classification/duty
- Up to M7
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>

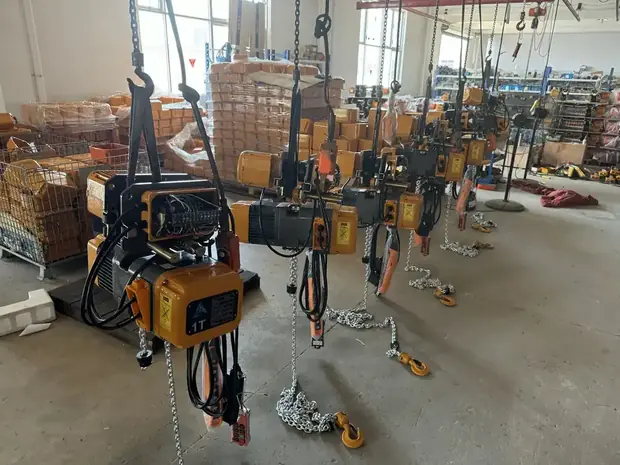

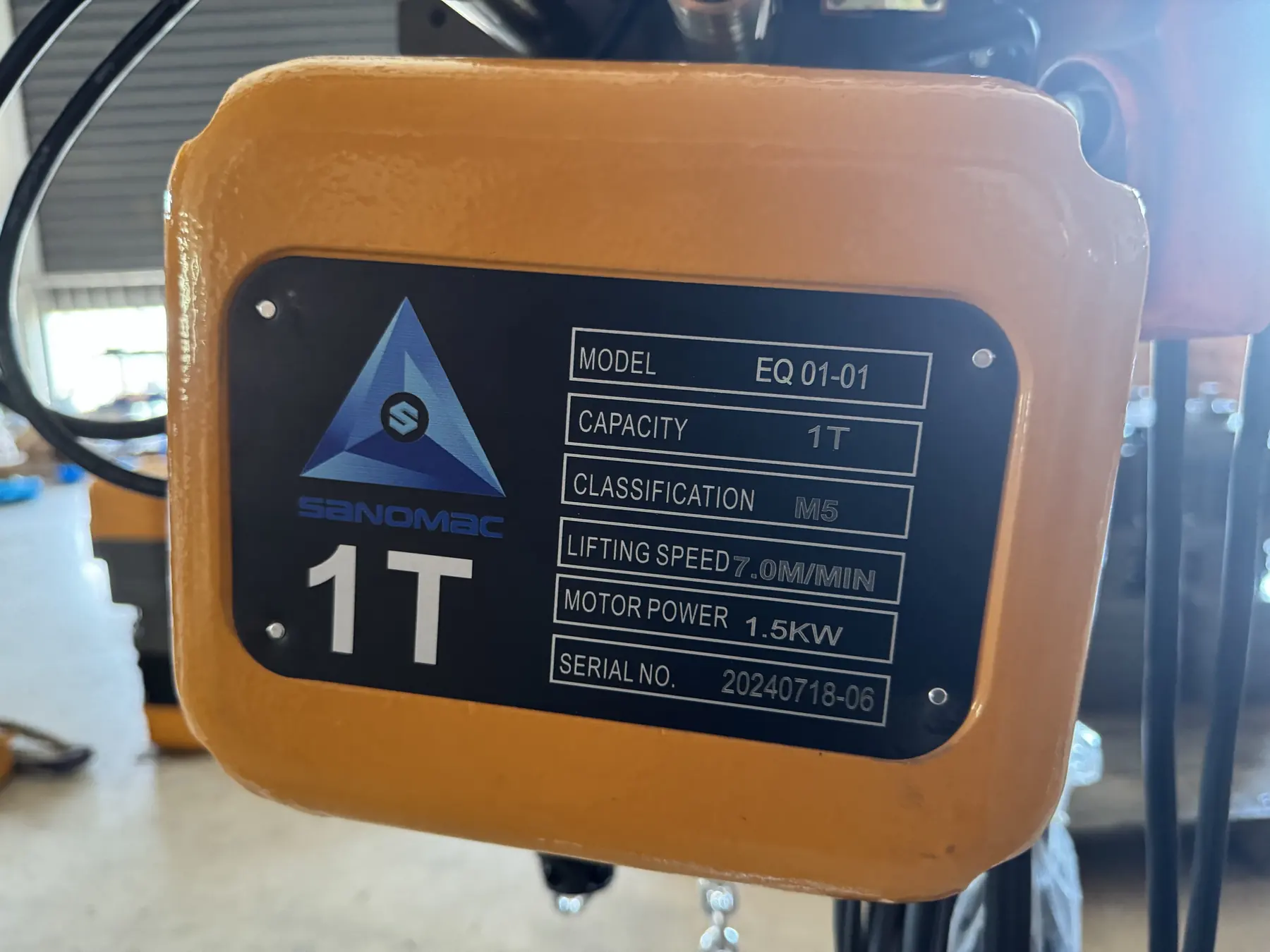

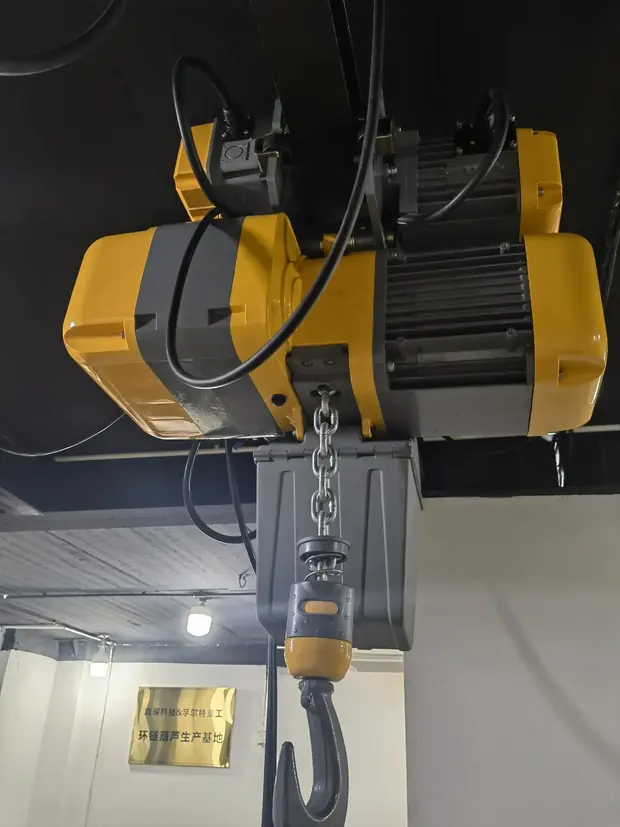

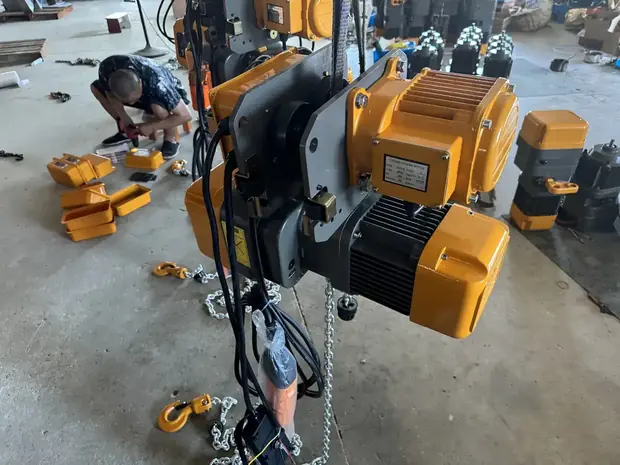

Product Gallery
Technical Features
- Designed Capacity is Up to 100T.
- Classification/Duty is Up to M7.
- Adopted Self with Friction Clutch and Up/Down Limit Switch
- The Chain adopted G80 and G100.
- The hook is hot forged with perfect strength and is not easy to break.
- Protection Class is Up to IP65.
- Adopted the One Time Cast Aluminum Shell.
- 3PH or Single Phase Electric Chain Hoist: Voltage from 220V -460V, 50/60HZ
- Installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
- It can also be used together with electric hoist double beam, gantry crane and slewing cranes to hoist different items and so on.
Where It Is Used
- The electric chain hoist can be shorten the distance between the machine body and the beam track, and is suitable for operations in low side buildings, especially for temporary workshops or places where the effective lifting space inside is expanded. The building is the most important part of the machine is the chain and braking system.
- Electric Chain Hoist shell is made of cast aluminum by mode, with light in weight but hard fresture, suitable for use in harsh working environments with high heat dissipation and a fully sealed design.
- Sinomac Industrial Electric Chain Hoist has the following advantages
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| MAX Capacity | 100T |
|---|---|
| Lifting Height | 0-120m |
| Lifting Speed | 0 – 30 m/min or Customized |
| Applicable Standard | FEM/DIN/ISO |
| Hoist Type | TROLLEY TYPE/FIXED TYPE |
| Classification/duty | Up to M7 |
| Working Temp. | 20℃~+40℃ |
| Control Type | PENDANT CONTROL & REMOTE CONTROL |
| Motor Duty | 60% ED(Single Speed) /40%/20%(Dual Speed). |
| CAPACITY/T | 0.5 | 1 | 2 | 3 | 5 | ... | |
|---|---|---|---|---|---|---|---|
| CLASSIFICATION | M5 | M5 | M5 | M5 | M5 | ... | |
| LIFTING HEIGHT/M | 3 | 3 | 3 | 3 | 3 | ... | |
| LIFTING SPEED M/MIN | 7 | 7 | 7 | 7 | 3.5 | ... | |
| LIFTING MOTOR | POWER/KW | 0.75 | 1.5 | 3 | 3.6 | 3.6 | ... |
| ROTATION SPEED(r/min) | 1440 | 1440 | 1440 | 1440 | 1440 | ... | |
| PHASE | 3 | 3 | 3 | 3 | 3 | 3 | |
| VOLTAGE(V) | 220-660 | 220-460 | 220-460 | 220-460 | 220-460 | 220-460 | |
| FREQUENCY(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |
| CROSS TRAVELING MOTOR | POWER/KW | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | ... |
| ELECTRIC TROLLEY TYPE | ROTATION SPEED(r/min) | 1440 | 1440 | 1440 | 1440 | 1440 | ... |
| TRAVELING SPEED(m/min) | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
Electric-wire-rope-hoist
- Product Type
- CD MD
- Lifting Capacity
- 0.5~80t
Planetary-geared-electric-hoist
- Electric Hoist Type
- Wire Rope Hoist
- Lifting Capacity
- 1~80T
Explosion-proof-rope-hoist
- Classification/Duty
- M5
- Classification
- M5
1-20-ton-din-overhead-crane
- Capacity
- 1~32 T
- Span
- ≤50M
Frequently Asked Questions
What information do you need to quote a electric-chain-hoist?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the electric-chain-hoist be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Electric-chain-hoist
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
